ISW-808PT-M12
Industrial IP67 8-Port 10/100TX M12 802.3at PoE+ Switch (-40~75 degrees C)
Prodotti Correlati
Reliable Data and Power over Ethernet

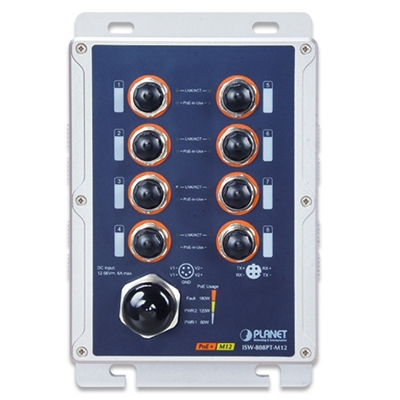

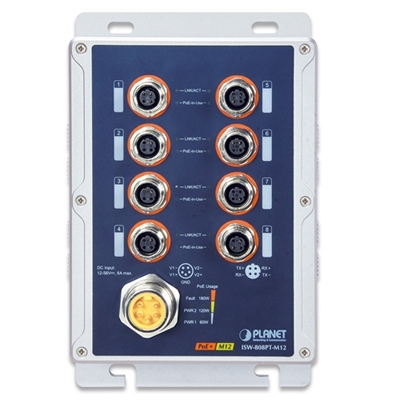

PLANET ISW-808PT-M12 is an industrial-grade robust and vibration-proof PoE+ switch for a wide range of applications in factories or moving trains as it guarantees a reliable performance under vibration and shock. It features eight 10/100BASE-TX auto-negotiation waterproof/dustproof M12 connectors with IEEE 802.3at PoE+ injector function; each PoE+ port provides 36 watts of PoE output. The M12 connector provides tight and strong connection, and ensures stable Ethernet operating performance withstanding humidity, dirt, dust, shock, vibrations, heat and cold. The compact, IP67-rated aluminum case of the ISW-808PT-M12 allows either DIN-rail or wall mounting for efficient use of cabinet space.
Applications
ITS Industrial Ethernet PoE Solution
The ISW-808PT-M12’s vibration-proof and shockproof features guarantee stable operation, even in moving vehicles, trains and other public transportation systems, making it an ideal solution for intelligent transportation systems. To facilitate the 802.3at PoE usage with commonly-used 12~54V DC power input for transportation and industrial-level applications, the ISW-808PT-M12 adopts the 12~54V DC to 54V power boost technology to solve power source issue but does not require special power supplies. It certainly meets the transmission needs of power and data for surveillance system, video transmission and wireless service on the bus, shuttle and other vehicles.
Public Construction for Data Collection and Forwarding
Providing up to 8 PoE+, in-line power interfaces, the ISW-808PT-M12 can easily build a power centrally controlled by IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the ISW-808PT-M12 makes the installation of IP cameras or wireless AP easier and more efficient.
Features and Benefits
Physical Port
- 8-port 10/100BASE-TX with waterproof/dustproof M12 connectors and IEEE 802.3at PoE+ injector function
Power over Ethernet
- Its end-span PSE complies with IEEE 802.3at Power over Ethernet Plus.
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 8 ports of IEEE 802.3af/802.3at devices powered
- 180-watt PoE budget
- Supports PoE power up to 36 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
Layer 2 Features
- Supports auto-negotiation and 10/100Mbps half/full duplex mode
- High-performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- Backplane (switching fabric): 1.6Gbps
- Integrated address look-up engine, supporting 2K absolute MAC addresses
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case and Installation
- IP67 aluminum case
- Waterproof/dustproof and fanless designs
- DIN-rail and wall-mount installation
- Redundant power design
- - 12 to 56V DC, redundant power with reverse polarity protection
- - Active-active redundant power failure protection
- - Backup of catastrophic power failure on one supply
- - Fault tolerance and resilience
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV surge protection
- -40 to 75 degrees C operating temperature
Specifications
Hardware Specifications
Copper Ports: 8 x M12, 4-pin D-coded female connector
10/100BASE-TX auto-MDI/MDI-X
IEEE 802.3at PoE+ Ports: 8, port 1 to port 8

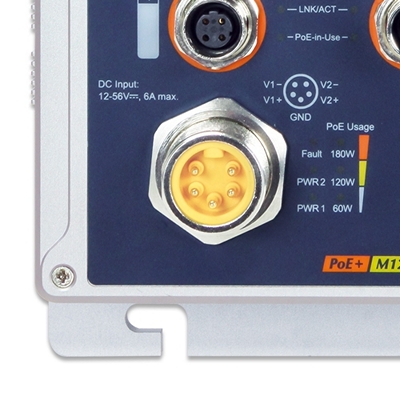

Power Connector: 1 x M23, 5-pin A-coded male connector
Enclosure: IP67 aluminum case
Dimensions (W x D x H): 124 x 53 x 204mm
Weight: 1.75kg
Installation: Wall-mount and DIN-rail kit
Power requirements: Dual 12~56V DC
Power Consumption: Max. 197.3 watts/673.2BTU
ESD Protection: 6KV DC
Surge Protection: 6KV DC
Switch Specifications
Switch Processing Scheme: Store-and-Forward
Address Table: 2K entries
Flow Control: Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Switch Fabric: 1.6Gbps
Throughput (packet per second): 1.19Mpps
Maximum Transmit Unit: 1536 bytes
Network Cables: 10BASE-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft)
100BASE-TX: 2-pair UTP Cat.5, 5e, 6 up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m, max.)
Power over Ethernet
PoE Standard: IEEE 802.3at Power over Ethernet Plus / PSE
PoE Power Supply Type: End-span
PoE Power Output: 54V DC per port with maximum of 36 watts
Power Pin Assignment: 1/2(+), 3/6(-)
PoE Budget: 180 watts@48-56V DC input
120 watts@24~48V DC input
60 watts@12~23V DC input
Standards Conformance
Regulatory Compliance: FCC Part 15 Class A
CE
Standards Compliance: IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet plus
Stability Testing: IEC60068-2-32 (free fall)
IEC60068-2-27 (shock)
IEC60068-2-6 (vibration)
Environments
Operating: Temperature: -40 ~ 75 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -40 ~ 80 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
