ITA-5831-H0A1E
Celeron G3902E, EN 50155 Compliant for Railway Applications ,DC-IN 72V
Features
Intel® Core™ i7-6822EQ platform with QM170
Fanless computer for railway vehicle applications, fully compliant with EN 50155
Satisfies temp. standard: EN 50155 TX (-40 ~ 70° C) and IEC 61373 body mount class B
Compliant with EN 50121-3-2/ EN 50121-4 EMC test standard
Ruggedized connectors (M12) used for communication and power ports
Supports easy-swap storage module and I/O module
Specifications
System Chipset
CPU: Intel® Core™: Celeron G3902E
Base frequency/Turbo Boost: 1.6 GHz/ NA
L3 Cache: 2M
Cores/Threads: 2C/2T
Chipset: QM170
BIOS: AMI SPI 16M byte
Memory
Technology: 8GB on board memory, DDR4 2133MHz
SODIMM slot: 1
Max. Capacity: Up to 16G
Graphics
Chipset: Intel Integrated Graphics GT2, Celeron with GT1
VRAM: Shared with system memory to 512MB (Default setting)
Display: DVI-I: 1920 x 1200 @ 60Hz

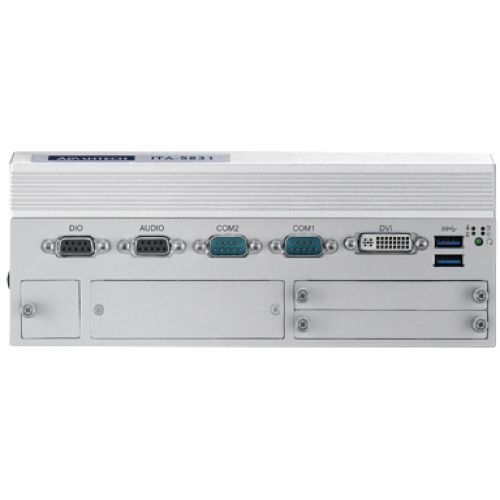

I/O
USB:
2 x USB3.0 with Type A
1 x USB2.0 with M12 A-coded(F) 4-pin
Serial Port: 2 x DB9, RS-232/422/485 with 2KV Isolation, supports auto-flow control
DIO: 1 x DB9, 4-bit DI/ 4-bit DO with 2KV Isolation
Display: 1 x DVI-I (Optional to DVI-D+VGA via Y cable)
Audio: 1 x DB9, 1 x Speaker-out with 4W4Ω Amp., 1 x Mic-in
Ethernet
Controller: Intel i210-IT (Industrial)
Interface: 10/100/1000 Mbps

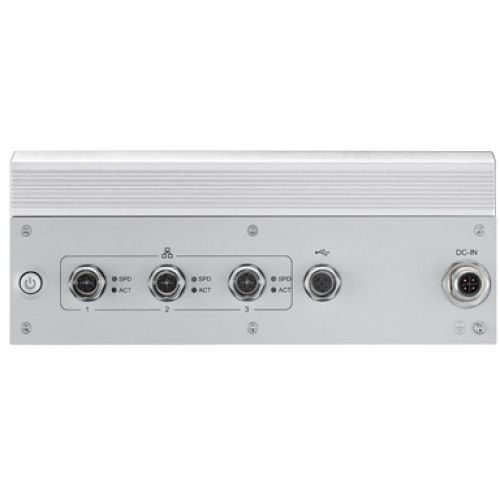

Connector: Up to 3 x M12 X-coded(F)
Storage
HDD/SSD easy-swap module:
1 x ITA-EM-ST61-00A1E,supports 2 x 7mm/2.5" SSD (Default)
Max to 3 x 2.5" SSD, 2 of 7mm SSD and 1 of 7mm/9.5mm SSD
mSATA:1 x mSATA slot on board
Others
Mini PCIe: 3 x Mini PCIe Socket (Full size)
SIM card: 2 x SIM slot
LED & Button
LED: 1 x power, 1 x storage, 1 x alert, 1 x BATT
Button:
1 x power on/off switch
1 x reset button
Power
Input Voltage: DC 24V input compliant with EN50155 class S2/C1(Optional DC 48/72/110V input)
Connector: 1 x M12 S-coded(M) 4-pin
Watchdog Timer
Output: System reset
Interval: Programmable 1~255 sec/min
