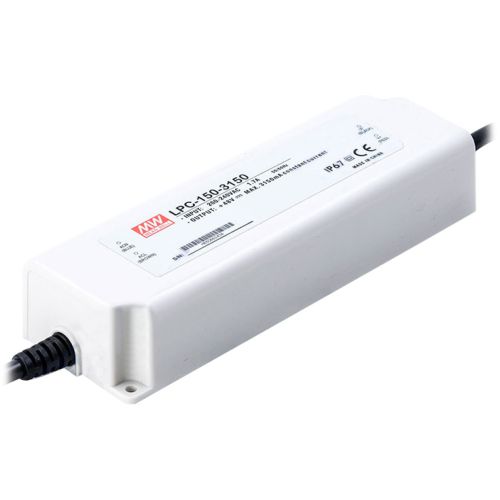

LPC-150-3150 Mean Well AC DC Driver Led

Features

• Constant current design
• 180~305VAC input only
• High efficiency up to 90%
• Protections: Short circuit / Over voltage / Over temperature
• Cooling by free air convection
• Fully encapsulated with IP67 level
• Fully isolated plastic case
• Class H power unit, no FG
• Suitable for LED lighting and moving sign application
• 100% full load burn-in test
• Low cost, high reliability
• 2 years warranty

Specifications

OUTPUT

RATED CURRENT: 3150mA
CURRENT ACCURACY: ±5.0%
CONSTANT CURRENT REGION: 24 ~ 48V
RATED POWER:  151.2W
RIPPLE CURRENT: ±5%
RIPPLE & NOISE:  1Vp-p
LINE REGULATION: ±1%
VOLTAGE TOLERANCE: ±2%
SETUP, RISE TIME: 1000ms, 80ms / 230VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC at full load

INPUT

VOLTAGE RANGE: 180 ~ 305VAC      254VDC ~ 431VDC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.7A/230VAC      1.5A/277VAC
