LRP-1622CS Planet Managed POE

 PLANET Long Reach PoE Solution enables all enterprises and network service providers to set up an IP infrastructure in a remote location where 802.3af/at PoE compliant powered devices can receive both data and power via PLANET switches, and PLANET LRP extenders and injectors over a long distance but not limited to the normal 100 meters.

Intelligent Long Reach PoE Switch on Coaxial-based Network

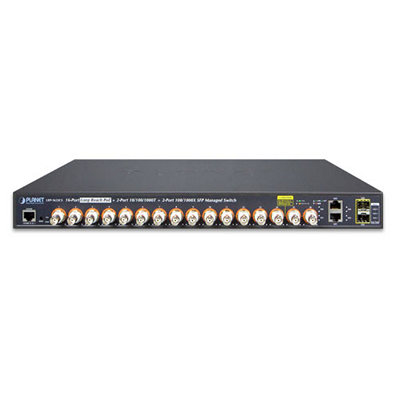

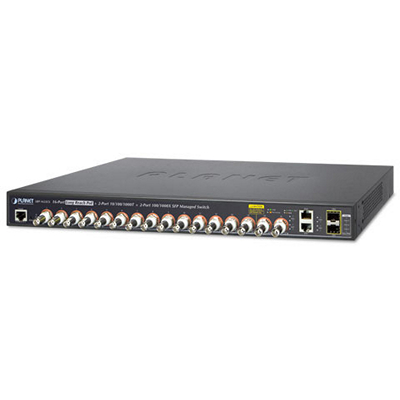

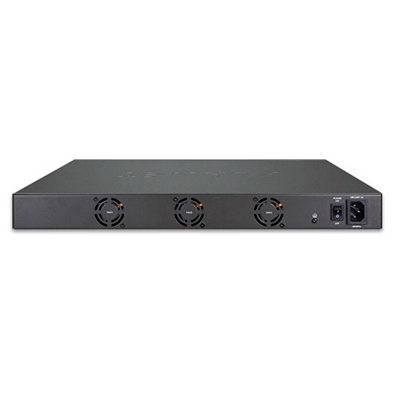

PLANET LRP-1622CS, a brand-new Multi-channel Long Reach PoE Switch, features an extended Ethernet and PoE networking of up to 1 kilometer over the existing coaxial cables going to multiple PoE compliant devices. It provides IPv6/IPv4 dual stack management and built-in L2/L4 Gigabit Switching engine along with 16 BNC ports with Long Reach PoE Injector function, 2 Gigabit copper ports and 2 extra 100/1000BASE-X SFP fiber slots. Each of the 16 BNC ports provides 36 watts of power with a total power budget of up to 440 watts. As an advanced PoE switch, the LRP-1622CS features intelligent PoE functions to improve the availability of critical applications. It provides a quick, safe and cost-effective PoE network solution to upgrading the existing coaxial cable infrastructure from the analog system to the HD IP surveillance system.

Specifications

Hardware Specifications

Ethernet Interfaces:
■ Copper:
• 2 x 10/100/1000BASE-T RJ45
• Auto-negotiation/ Auto-MDI/MDI-X

■ Fiber Optic:
• 2 x 100/1000BASE-X SFP slot
• Supports 100/1000Mbps dual mode and DDM

■ Jumbo Frame
• 10Kbytes with GE1 to GE4

Long Reach PoE Interfaces:
■ Connectivity:
• 16 x BNC female connectors
• Long Reach PoE over coaxial PSE (Power Source Equipment)
　- BNC center pole: DC+/Hi
　- BNC shield: DC -/Lo

■ Power Output:
• Per port 52V DC, 36 watts (max.)

■ Total Power Budget:
• 440 watts (max.) @ 25 degrees C
• 380 watts (max.) @ 50 degrees C

■ Cabling:
• Coaxial cable: 75 ohm
• RG-6/U cable (Recommended)

■ Maximum Distance:
• Max. 200m with PoE+ output (656ft.)
• Max. 400m with PoE output (1,312ft.)
• Max. 1200m without PoE output (3,937ft.)

■ Long Reach Ethernet Standard:
• IEEE 1901

■ Modulation Type:
• Wavelet-OFDM

■ Security:
• 128-bit AES encryption

■ Frequency Band:
• 2 ~ 28MHz

■ Multiple Nodes：
• Up to 4 LRP extenders within 1km RG-6/U coaxial cable*

* The actual extender nodes vary on the quality of the copper wire and environmental factors.

■ LRP Compatibility：
• LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

Console: 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Switch Architecture: Store-and-Forward
Switch Fabric: 11.2Gbps/non-blocking
Address Table: 8K entries
Shared Data Buffer: 4.1 megabits
Flow Control: IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Reset Button: < 5 sec: System reboot
> 5 sec: Factory default
LED: PWR, SYS, LNK, PoE-in-Use, 1000, LNK/ACK, Fan 1 Alert, Fan 2 Alert, PoE PWR Alert
Dimensions (W x D x H): 440 x 300 x 44.5 mm, 1U height
Weight: 4,430g
Power Requirements: AC 100~240V, 50/60Hz, auto-sensing
ESD Protection: 6KV DC
Power Consumption: 540 watts/1843 BTU
Enclosure: Metal

Layer 2 Functions

Port Mirroring: TX/RX/both
Many-to-1 monitor
VLAN: 802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Link Aggregation: IEEE 802.3ad LACP and static trunk
Supports 4 trunk groups with 4 ports for each group
Spanning Tree Protocol: STP/RSTP/MSTP
IGMP Snooping: IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
MLD Snooping: MLD (v1/v2) Snooping, up to 256 multicast groups
Access Control List: IPv4/IPv6 IP-based ACL/MAC-based ACL
QoS: 8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR
Security: IEEE 802.1X port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
IP-MAC port binding
MAC filter
Static MAC address
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard

Management Functions

Basic Management Interfaces: Web browser / Telnet / SNMP v1, v2c
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
Remote/Local Syslog
System log
LLDP protocol
SNTP
Secure Management Interfaces: SSH, SSL, SNMP v3
SNMP MIBs: RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB

Standards Conformance

Regulation Compliance: FCC Part 15 Class A, CE
Standards Compliance: IEEE 1901 Broadband Power Line
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2

Environment

Operating: Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
