M-6200 MOXA Modular Remote IO

Features

• 2 analog inputs, RTD: PT100, JPT100

Specifications

RTD Inputs: 2 channels
Sensor Types:
     PT50, PT100, PT200, PT500, PT1000 (resistance 100 milli-Ωs/bit)
     JPT100, JPT200, JPT500, JPT1000 (resistance 10 milli-Ωs/bit)
     NI100, NI200, NI500, NI1000, NI120, CU10 (resistance 20 milli-Ωs/bit)
Resolution: 0.1°C/10 milli-Ωs
Data Format: 16-bit integer (2’s complement)
Accuracy:
     ±0.1%, FSR @ 25°C
     ±0.3%, FSR @ 0°C, 60°C
Input Impedance: 500K Ωs
Conversion Time: 200 ms for all channels
Diagnostics: Range over (if range over, data=Dx8000)
Power Consumption: 80 mA @ 5 VDC
Isolation: I/O to logic (photocoupler isolation)

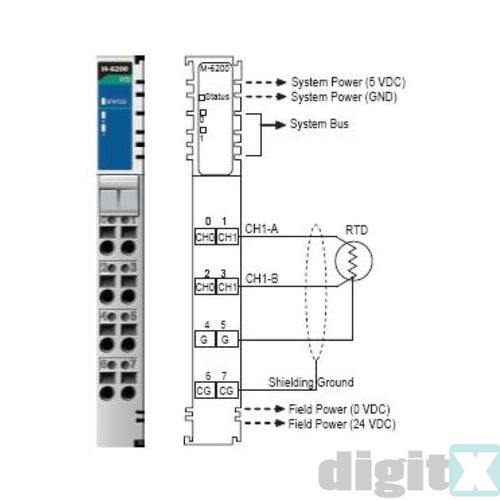

Wiring: I/O cable max. AWG14
