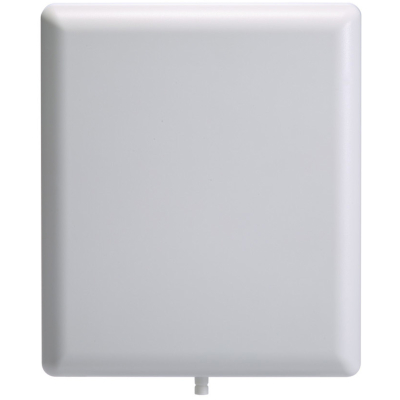

MAT-WDB-PA-NF-2-0708
MIMO 2x2, 2.4/5 GHz, dual-band panel antenna, 7/8 dBi, N-type (female)
Features and Benefits
- Lightweight
- Compact form factor
- Pole-mounting support
- -40 to 75°C operating temperature range
Introduction
The MAT-WDB-PA-NF-2-0708 antenna is a compact MIMO 2x2 dual-band panel antenna with an N-type (female) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and provides a gain of 7/8 dBi.
Specifications
Antenna Characteristics
Frequency: 2.4 to 2.5, 4.9 to 5.9 GHz
Antenna Type: MIMO 2x2, Directional, Panel
Typical Antenna Gain: 7/8 dBi
Connector: N-type (female)
Impedance: 50 ohms
Polarization: Vertical
HPBW/Horizontal: 90°
HPBW/Vertical: 50°
V.S.W.R.: 2:1 max.
Power Handling: 2 W (max.)
Physical Characteristics
Dimensions: 206 x 177 x 45 mm (8.11 x 6.97 x 1.77 in)
Weight: 935 g (2.06 lb)
Radome Color: White
Radome Material: ABS
Installation: Pole mount
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)
Warranty
Warranty Period: 1 year
