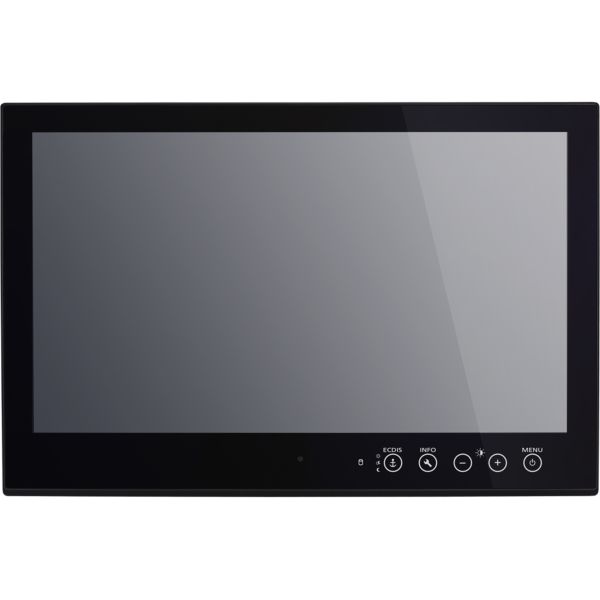

MD-224Z MOXA Marine Displays

Features

• 24-inch wide screen with 16:9 aspect ratio and 1920 x 1080 pixel resolution
• 300 cd/m2 backlight luminance eases eyestrain for comfortable viewing
• The PIP and PBP functions give viewing options so that crews may arrange information to meet any need
• Independent DC and AC power connectors (24 VDC, 110 to 230 VAC) allow for installation flexibility
• Rugged design with IP66 rated front panel
• Industrial-grade operating temperature: -15 to 55°C (5 to 131°F)
• Anti-vibration design compliant with IEC 60945 DNV 2.4, Class A / Class C
• Optically bonded models increase panel contrast and overall visibility under bright sunlight
• Surface capacitive touch screens give fast, sensitive response with excellent dragging performance
• Color calibration to meet the ECDIS display standard (IEC 61174) is available for all models

Introduction

The MD-124 ECDIS display Series has been designed to fit the peculiar environmental demands of maritime industrial systems. The 24-inch panel features a 16:9 aspect ratio and a 1920 x 1080 pixel resolution, making this display ideal for any marine application requiring detailed, high-resolution imagery. In addition, with full range dimming, optical bonding (Y models only), and designed with 2D, 178° wide angle viewing, these computer display terminals satisfy a variety of international maritime standards.

Display

Panel Size: 24” viewable image size
Panel Type: MVA
Aspect Ratio: 16:9
Pixels: 1920 x 1080
Pixel Pitch (RGB): 0.282 (H) x 0.282 (V) mm
Response Time: 8 ms (gray to gray)
Contrast Ratio: 5000:1
Light Intensity: 300 cd/m2
Viewing Angles: 178° x 178° (right-left/up-down)
Active Display Area 531.36 (H) x 298.89 (V) mm
Max Colors: 8-bit color / 16.7M
Display Interface: VGA x 1, DVI-I x 2, BNC composite x 3
Resolution
     VGA: 640 x 480
     SVGA: 800 x 600
     XGA: 1024 x 768
     SXGA: 1280 x 1024
     WSXGA+: 1920 x 1080 (optimal setting)

Serial Interface

Serial Standards: 1 software-selectable RS-232/422/485 port, male DB9

Serial Signals

RS-232: TxD, RxD, DTR, DSR, CTS, DCD, GND (RTS for MD-124)
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND

Front Panel

Panel Control Buttons: 1 Power, 4 OSD control
LEDs: Status, Power

Physical Characteristics

Housing: Aluminum sheet metal
Weight: 12 kg
Dimensions: 85 x 593 x 384 mm (3.35 x 23.45 x 15.12 in)
Mounting Console mounting

Environmental Limits

Operating Temperature: -15 to 55°C (5 to 131°F)
Storage Temperature: -20 to 60°C (-4 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Anti-Vibration
     IEC 60945
     DNV 2.4, Class A/Class C
     Power Requirements
Input Voltage:
     24 VDC (with tolerance from 18 to 36 VDC, 2-pin terminal block)
     110 to 230 VAC, 50/60 Hz
Power Consumption:
     75 W (standard) to 90 W (full-loading)
     6.21 A @ 18 VDC
     4.55 A @ 24 VDC
     2.95 A @ 36 VDC

Standards and Certifications

Safety: UL/cUL, CCC (Pending)
EMC: EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A
Marine: IEC 60945 4th. (Pending), DNV (Pending), IACS-E10 (Pending), IEC 61174
Green Product: RoHS, cRoHS, WEEE

Warranty

Warranty Period: 1 year
