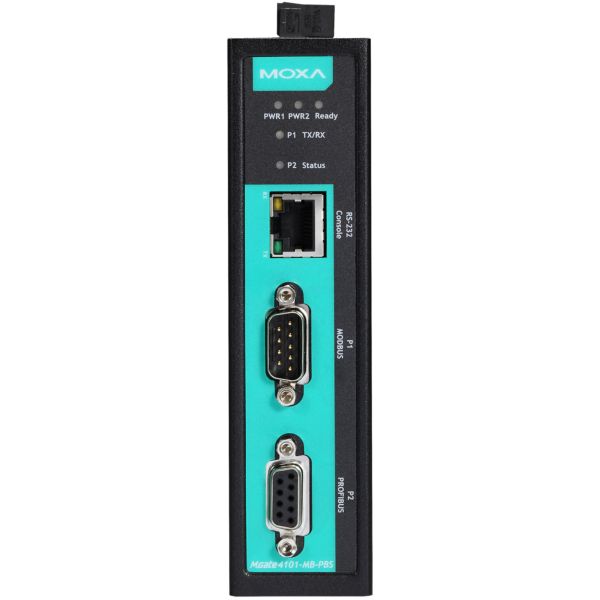

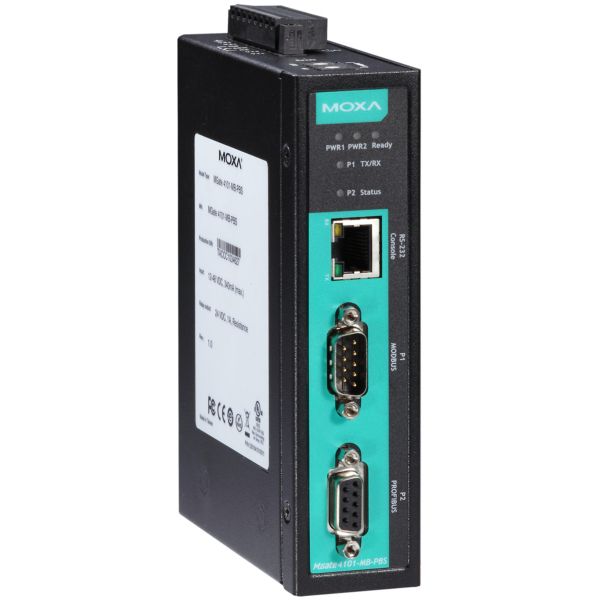

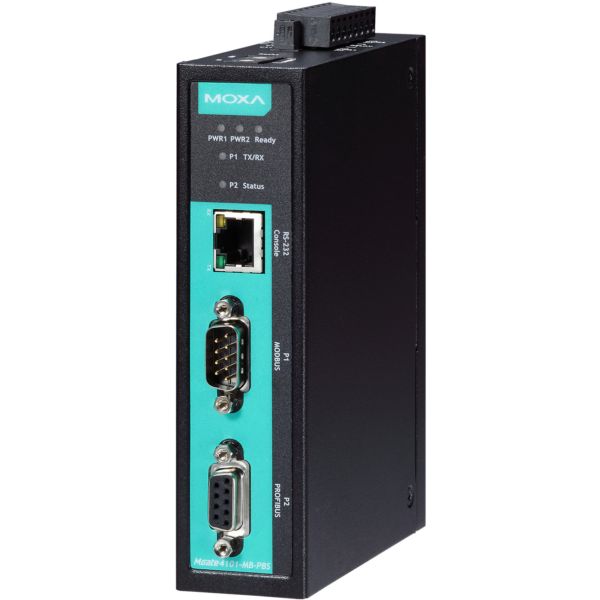

MGate 4101-MB-PBS MOXA Gateways

Features and Benefits

• Protocol conversion between Modbus and PROFIBUS
• Windows utilities with innovative QuickLink function for automatic configuration within minutes
• Redundant dual DC power inputs and relay output supported
• Embedded data packet analyzer
• Powerful and visual diagnostic tool
• -40 to 75°C wide operating temperature models available

Introduction

The MGate 4101-MB-PBS gateway provides a communication portal between PROFIBUS PLCs (e.g. Siemens S400 and S300 PLCs) and Modbus devices. With the QuickLink feature, I/O mapping can be accomplished within a matter of minutes. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer optional built-in optical isolation. The QuickLink windows utility uses a serial console port to connect to the MGate 4101-MB-PBS and makes configuration and operation as easy as possible. QuickLink can finish configuration in just few minutes by passively detecting Modbus requests with the AutoLearning function, and performing error-free I/O mapping with the AutoMapping feature. QuickLink drastically reduces Modbus-to-PROFIBUS integration time when compared to conventional I/O mapping, which can easily require days to complete.  Additionally, embedded monitoring tools can maintain logs of Modbus communication packets and assist in troubleshooting. The MGate 4101-MB-PBS has dual power inputs for greater reliability. The power inputs allow simultaneous connections to two live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-PROFIBUS gateways ideal for demanding industrial applications. A relay output is provided for the power input status. The relay output gives maintenance engineers an additional tool for troubleshooting and maintenance.

PROFIBUS Interface

Protocol: PROFIBUS DP-V0 Slave
Number of Ports: 1
Data Rate: 9600 bps to 12 Mbps
Connector: DB9 female
Isolation: 2 kV (built-in)
DIP Switch: For termination
Rotary Switch: PROFIBUS address 0-99 (address 100-125 supported through software configuration)

Modbus Interface

Protocol: Modbus RTU/ASCII Slave/Master
Number of Ports: 1
Serial Standards: RS-232/422/485, software selectable
Connectors: DB9 male
ESD Protection: 15 kV for all signals
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kΩ, 150 kΩ
Terminator for RS-485: 120 Ω
Data Bits: 7, 8
Stop Bits: 1, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR (RS-232 only)
Baudrate: 50 bps to 921.6 kbps

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Software

Configuration Options: Serial Console, Windows Utility
Utilities: MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)
Support: QuickLink, Paging

Physical Characteristics

Housing: Metal, IP30 protection
Weight: 500 g
Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m (795 hPa), higher altitudes on demand

Power Requirements

Input Voltage: 12 to 48 VDC
Power Connector: Terminal block
Power Consumption:
     MGate 4101-MB-PBS: 340 mA @ 12 VDC, 130 mA @ 48 VDC
     MGate 4101I-MB-PBS: 375 mA @ 12 VDC, 140 mA @ 48 VDC

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
Hazardous Location:
     UL/cUL Class 1 Division 2 Groups A/B/C/D (Pending),
     ATEX Zone 2 Ex nA nC IIC T3 Gc (Pending),
     IECEx (Pending)
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS:
     EN 55024,
     EN 61000-4-2 (ESD) Level 3,
     EN 61000-4-3 (RS) Level 2,
     EN 61000-4-4 (EFT) Level 3,
     EN 61000-4-5 (Surge) Level 3,
     EN 61000-4-6 (CS) Level 2,
     EN 61000-4-8 (PFMF) Level 1
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6

Reliability

MTBF (mean time between failures): 513,139 hrs

Warranty

Warranty Period: 5 years
