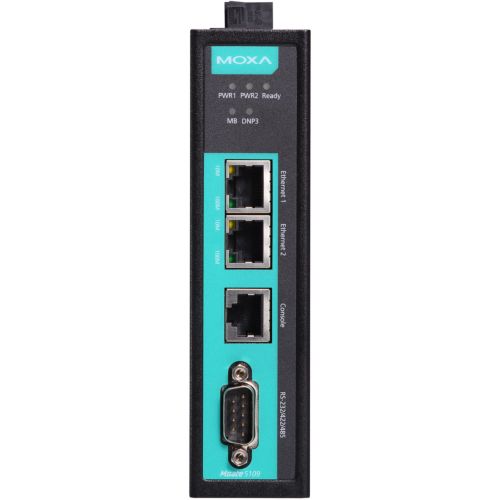

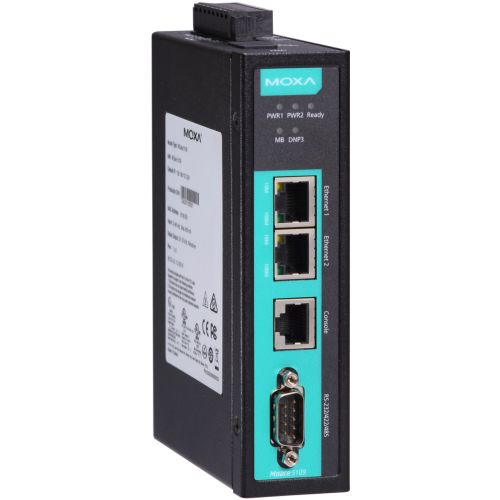

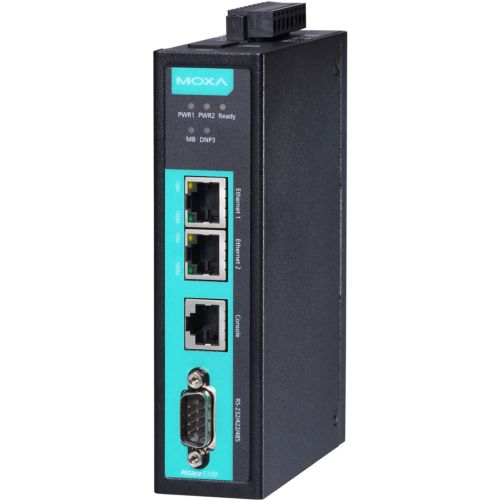

MGate 5109 MOXA Gateways

Features

• Supports Modbus master/slave and DNP3 master/outstation
• Up to 31 Modbus serial slaves or DNP3 serial outstations
• Up to 32 Modbus TCP slaves or DNP3 TCP/UDP outstations
• Supports DNP 3.0 subset level 2
• DNP3 master mode supports up to 26600 points
• DNP3 master and outstation modes support time-synchronization
• Complete diagnosis information for maintenance
• Embedded Modbus and DNP3 serial traffic monitor
• Redundant dual DC power inputs and relay output
• microSD card for configuration backup and system log
• -40 to 75°C wide operating temperature models available
• Serial port with 2 kV built-in isolation protection
• Built-in Ethernet cascading for easy wiring
• IEC 62443-4-2 compliant

Introduction

The MGate 5109 is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP protocol conversion. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer built-in serial isolation. The MGate 5109 supports transparent mode for easily integrating Modbus TCP to Modbus RTU/ASCII networks or DNP3 TCP/UDP to DNP3 serial networks. The MGate 5109 also support agent mode to exchange data between Modbus and DNP3 networks or to act as a data concentrator for multiple Modbus slaves or multiple DNP3 outstations. The rugged design is suitable for industrial applications such as power, oil & gas, and water and wastewater.

Specifications

Ethernet Interface

Protocols: Modbus TCP client/server, DNP 3.0 TCP/UDP master/
outstation
Number of Ports: 2 (1 IP, Ethernet cascade)
Speed: 10/100 Mbps, Auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

Protocols: Modbus RTU/ASCII Master/Slave
Number of Ports: 1
Serial Standards: RS-232/422/485, software selectable
Connectors: DB9 male
RS-485 Data Direction Control: ADDC® (automatic data direction
control)
Pull High/Low Resistor for RS-485: 1 kΩ, 150 kΩ
Terminator for RS-485: 120Ω
Isolation: 2 kV (built-in)

Serial Communication Parameters

Data Bits: 7, 8
Stop Bits: 1, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, RTS Toggle (RS-232 only)
Baudrate: 50 bps to 921.6 kbps

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Modbus

Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands: 100
Max. No. of Connections:
MGate as Modbus TCP Master: 32 slave connections
MGate as Modbus TCP slave: 16 master connections

DNP3

Max. No. of Connections:
• Transparent mode: 16 DNP3 TCP master connections or 32 DNP3 TCP outstation connections
• Agent mode:
MGate as DNP3 TCP/UDP master: 32 outstation connections
MGate as DNP3 TCP/UDP outstation: 1 master connection
DNP3 Internal Database:
• For each outstation:
Binary Inputs: 256 points
Analog Inputs: 64 points
Counters: 64 points
Binary Outputs: 256 points
Analog Outputs: 64 points
• When the MGate 5109 is configured as a DNP3 outstation
Binary Inputs: 8192 points
Analog Inputs: 2048 points
Counters: 2048 points
Binary Outputs: 8192 points
Analog Outputs: 2048 points
Binary Input Events: 1024
Analog Input Events: 1024
Counter Events: 1024

Software

Configuration Options: Web Console, Serial Console
Utility: Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1/10 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2
Configuration: MXconfig, MXview, SNMP (v1, v2c, v3), Private MIB

Physical Characteristics

Housing: Metal, IP30
Weight: 507 g (1.12 lb)
Dimensions: 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Storage Card Slot: 1 microSD (SDHC) card slot supports up to 32 GB
Relay Alarm Circuit: 3-pin circuit with current carrying capacity of 2 A @ 30 VDC

Environmental Limits

Operating Temperature:
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Vibration: IEC 60068-2-6, IEC 60068-2-64
Shock: IEC 60068-2-27
Drop: IEC 60068-2-32

Power Requirements

Input Voltage: 12 to 48 VDC
Input Current: 455 mA max., Class 2
Power Connector: Terminal block

Standards and Certifications

Safety: UL 508, EN 60950-1
Hazardous Location: Class 1 Division 2, ATEX, IECEx
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF

MTBF (mean time between failures)

Time: 859,422 hrs
Standard: Telcordia SR332
