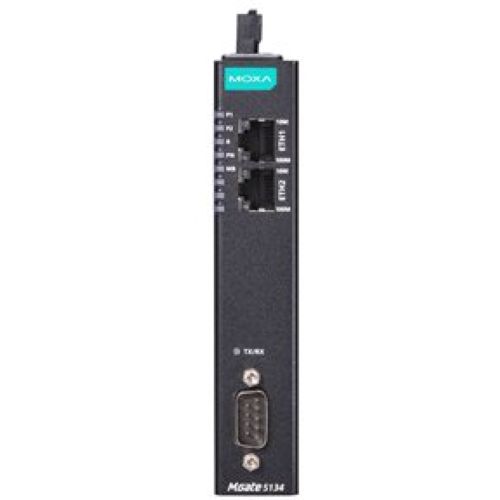

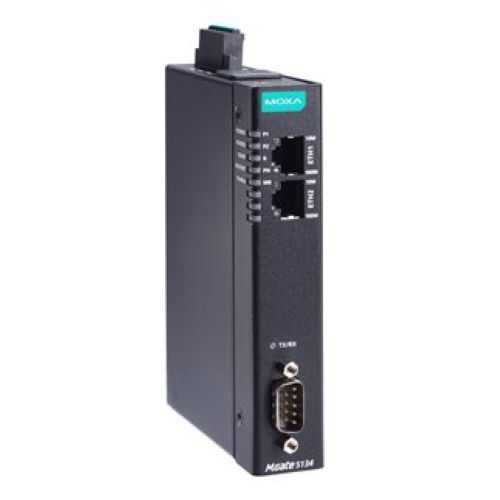

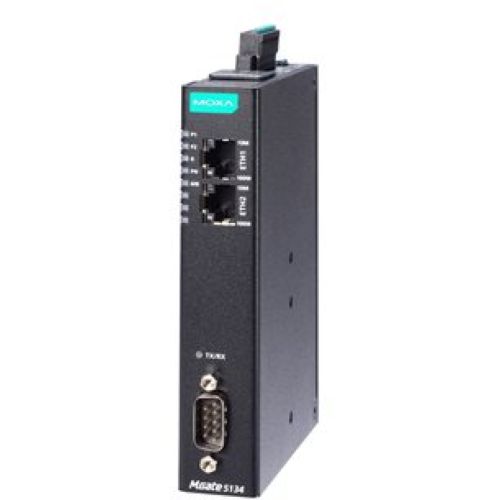

MGate 5134, 1-port Modbus RTU/ASCII/TCP-to-PROFINET gateways, -10 to 60°C operating temperature
MGate 5134
1-port Modbus RTU/ASCII/TCP-to-PROFINET gateways, -10 to 60°C operating temperature
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Protocols
Certificati
Introduction
The MGate 5134 is an industrial Ethernet gateway for converting Modbus RTU/ASCII/TCP to PROFINET network communications. To integrate existing Modbus devices onto a PROFINET network, use the MGate 5134 as a Modbus client to collect data and exchange data with the PROFINET host. All models are protected by a rugged and compact metal housing, are DIN-rail mountable, and offer built-in serial isolation. The rugged design is suitable for industrial applications such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.
Features and Benefits
- Protocol conversion from Modbus to PROFINET
- Supports PROFINET IO device
- Supports Modbus RTU/ASCII/TCP client
- Flexible deployment with Ethernet cascading and dual subnet
- Embedded traffic monitoring/diagnostic information for easy troubleshooting
- Easy device configuration via a web-based console
- microSD card for configuration backup/duplication
- Supports dual redundant DC power inputs and 1 relay output
- Serial port with 2 kV isolation protection
- -40 to 75°C wide operating temperature models available
- Developed according to IEC 62443-4-2 with Secure Boot
Specifications
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 2, Auto MDI/MDI-X connection
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Industrial Protocols: Modbus TCP Client, PROFINET IO Device
Configuration Options: Web Console (HTTPS), Device Search Utility (DSU)
Management: ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, UDP
MIB: RFC1213, RFC1317
Time Management: NTP Client
Security Functions
Authentication: Local database
Encryption: HTTPS, AES-128, AES-256, SHA-256
Security Protocols:
SNMPv3
SNMPv2c Trap
HTTPS (TLS 1.3)
Serial Interface
No. of Ports: 1
Connector: DB9 male
Serial Standards: RS-232/422/485
Baudrate: 300 bps to 921.6 kbps
Data Bits: 7, 8
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 2
Flow Control: RTS Toggle (RS-232 only), RTS/CTS
RS-485 Data Direction Control: ADDC (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms, software configurable
Terminator for RS-485: 120 ohms, software configurable
Isolation: 2 kV (built-in)
