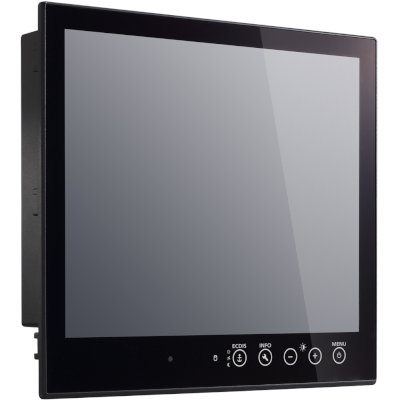

MPC-2190Z-W7E MOXA fanless Panel Computers



19 inch fanless panel computer with Intel Celeron 1.4GHz CPU, NMEA 0183, SSD trays, AC&DC power, Projected capacitive touch screen, tape bonding, , 64GB SSD, WS7P


Prezzo per pezzo

€ 5.242,19

(IVA esclusa)

€ 6.395,47 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 5.242,19
5+ pz. € 5.084,923
10+ pz. € 4.980,085

Prezzo di 1 pz. iva (22%) inclusa: € 6.395,47

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 110160

Model: MPC-2190Z-W7E

Bisogno di aiuto?

Features and Benefits

  • 19-inch panel computer
  • Color calibrated for ECDIS compliance
  • Third-generation Intel® processor (Intel® Core i7 3517UE 1.7 GHz or Celeron® 1047UE, 1.40 GHz)
  • SavvyTouch display controls
  • Fanless system design
  • Built-in NMEA 0183 and 3-in-1 software selectable RS-232/422/485 interfaces
  • Multiple power supplies (AC & DC)


MPC-2190 panel computers feature an Intel 3rd generation processor matched to 4 GB of system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine environments. With its two RS-232/422/485 serial ports, four NMEA 0183 ports, and two Gigabit Ethernet ports, the MPC-2190 panel computer supports a wide variety of serial and marine-specific interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-2190 Series comes with a range of standard display enhancements useful in industrial environments (including full range dimming, wide viewing angles, and optional optical bonding), as well as a few innovations especially deployed for maritime environments: user-friendly OSD controls, called SavvyTouch, featuring a proximity sensor for convenient adjustment in dark situations, immediate BIOS-level reports on hardware status (useful for determining why a machine will not boot up), and a quick-switch ECDIS button (for color-calibrated ECDIS models only) that allows instant brightness adjustments to any of the three pre-set calibrations dictated by the ECDIS standard. In addition to all of this, the MPC-2190 Series features a modular design that makes device integration into either new or existing industrial systems much simpler, reducing deployment costs and overall time-to-market.
The MPC-2190 panel computers are compliant with several industrial marine standards, including IEC 60945, IEC 61162, IEC 61174, DNV, and IACS E10, verifying their resilience for maritime operations. The IP54 (front panel) and IP22 (rear panel) rated unibody shell provides strong additional protection against the harsh conditions found in marine environments.
Color-calibrated ECDIS models are available upon request, providing an ideal HMI alternative for ECDIS charting and navigation stations.


CPU: Intel® Celeron® Processor 1047UE (2M Cache, 1.40 GHz)
System Chipset: Mobile Intel® HM65 Express Chipset
Graphics Controller: Intel© HD Graphics 520 (integrated)
System Memory Pre-installed: 4 GB DDR3/DDR3L
System Memory Slot: SODIMM DDR3/DDR3L slot x 1
Pre-installed OS: Windows Embedded Standard 7 (WS7P) 64-bit
Supported OS: Windows 7 Pro for Embedded Systems

Windows Embedded Standard 7 (WS7P) 64-bit

Windows 10 Pro 64-bit

Windows 10 Embedded IOT Ent 2016 LTSB High End EPKEA

Windows 10 Embedded IOT Ent 2016 LTSB Value EPKEA
Storage Slot: 2.5-inch HDD/SSD slots x 2
Computer Interface
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
USB 2.0: USB 2.0 hosts x 4, type-A connectors
Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
PS/2: Keyboard PS/2 x 1, Mouse PS/2 x 1
Video Output: DVI-D x 1, 29-pin DVI-D connectors (female)
        VGA x 1, 15-pin D-sub connector (female)
NMEA Port: NMEA 0183 ports x 4 (terminal block)
LED Indicators
System: Power x 1
LAN: 2 per port (10/100/1000 Mbps)
Active Display Area: 376.32 (H) x 301.06 (V) mm
Aspect Ratio: 5:4
Contrast Ratio: 2000:1
Light Intensity (Brightness): 300 cd/m2
Max. No. of Colors: 16.7M (8-bit/color)
Panel Size: 19-inch viewable image
Panel Type: MVA
Pixel Pitch (RGB): 0.294 (H) x 0.294 (V) mm
Pixels: 1280 x 1024
Response Time: 20 ms (gray to gray)
Viewing Angles: 178°/178°
Touch Function
Touch Type: Capacitive Touch (PCAP)
Touch Support Points: 4 points
Serial Interface
Baudrate: 50 bps to 115.2 kbps
Data Bits: 5, 6, 7, 8
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
NMEA Interface
Serial Standards:
NMEA 0183: RS-422
NMEA 2000: CAN bus (available on request)
Baudrate: 4800 bps
Data Bits: 8
Handshake: None
Optical Isolation Protection: 3 kV
Parity: None
Serial Standards: NMEA 0183v2 (NMEA 2000 available on request)
Stop Bits: 1, 1.5, 2
Voltage Differential: -6 V to +6 V (maximal differential level)
Serial Signals
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
Input Voltage: 100 to 240 VAC, 18 to 34 VDC
Physical Characteristics
Housing: Metal
IP Rating: IP54, front
          IP20, rear
Dimensions: 429 x 387 x 74.5 mm (16.89 x 15.24 x 2.93 in)
Weight: 8,658 g (19.09 lb)
Environmental Limits
Operating Temperature: -15 to 55°C (5 to 131°F)
Storage Temperature (package included): -20 to 60°C (-4 to 140°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
Environmental Testing: IEC 60068-2-1, DNVGL-CG-0339

IEC 60068-2-2, DNVGL-CG-0339

IEC 60068-2-2, IEC 60945

IEC 60068-2-30, IEC 60945
Maritime: ABS, CCS, DNV-GL
Safety: EN 60950-1, IEC 60950-1, UL 60950-1
Vibration: IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNVGL-CG-0339
Green Product: RoHS, CRoHS, WEEE
Warranty Period: LCD: 1 year

 System: 3 years
