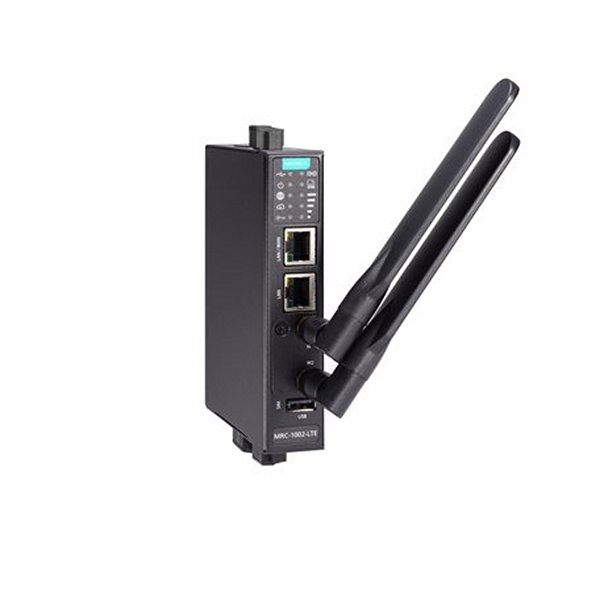

MRC-1002-LTE-EU MOXA Cellular Gateways



Moxa Remote Connect gateway with 1 LTE cellular port and 2 Ethernet ports, -10 to 60°C operating temperature


Prezzo per pezzo

€ 1.142,40

(IVA esclusa)

€ 1.393,73 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 1.142,40
5+ pz. € 1.108,13
10+ pz. € 1.085,28

Prezzo di 1 pz. iva (22%) inclusa: € 1.393,73

Disponibilità: 10 gg lav

Brand: MOXA

SKU: 115815

Model: MRC-1002-LTE-EU

Bisogno di aiuto?

Features and Benefits

  •  Security with embedded firewall and whitelist remote access control
  •  End-to-end data encryption
  •  Auto virtual IP mapping eliminates the need for field IP management
  •  Transparent tunnels suitable for existing software tools
  •  Flexibility for defining the relation between remote connections


Moxa Remote Connect (MRC) is an easy-to-use, secure, and versatile networking solution designed to seamlessly bridge field devices, engineers, and application servers together over the Internet for industrial applications. The solution combines MRC Server, MRC Gateway, and MRC Client. The MRC Server is a connection management platform that determines how the MRC Gateways and MRC Clients are related. The MRC Gateway is a secure gateway that connects Ethernet-ready devices at remote sites to the MRC Client. The MRC Client is a software tool that allows engineers to choose which remote device to connect to from a user’s laptop. Another benefit of the MRC Server is that it gives administrators a lot of control over the remote connection including during which periods of time it can be accessed and the kind of features that are available.
Users can choose either BYOS (build your own server) business model to have full control of your MRC, or you can choose MRC Quick Link, which is a remote connection service hosted by Moxa to minimize maintenance efforts and allow users to focus more on their business.


Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector): 2

Cellular Interface

Cellular Standards: LTE CAT-4, UMTS,HSPA, EDGE, GSM, GPRS
Band Options (EU):
LTE Band 20 (800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 3 (1800 MHz) / LTE Band 1 (2100 MHz) / LTE Band 7 (2600 MHz)
UMTS/HSPA 5 (850 MHz) / LTE Band 8 (900 MHz)
LTE Data Rate: 10 MHz bandwidth: 150 Mbps DL, 50 Mbps UL
HSPA Data Rates: 42 Mbps DL, 5.76 Mbps UL (Category 24, 6)
GPRS Data Rates: 85.6 kbps DL, 42.8 kbps UL
EDGE Data Rates: 237 kbps DL, 237 kbps UL (Category 10, 12)
Antenna Connectors: 2 SMA connector(s)

LED Interface

LED Indicators: USB, Power, Internet, Cloud, Key, Cellular Signal, Chain

USB Interface

USB Standards: USB 2.0

Input/Output Interface

Digital Inputs:
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA


Contact Current Rating: 1 A @ 24 VDC

System Power Parameters

Input Current: 0.62 A @ 12 VDC
Input Voltage: 12 to 36 VDC
Power Consumption: 7.44 W

Physical Characteristics

Housing: Metal
Dimensions: 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in)
Weight: Packaged: 700 g (1.54 lb)

Standards and Certifications

EMI: CISPR 32, FCC Part 15B Class A
EMC: EN 61000-6-2/-6-4, EN301489-1-52, EN 55032/35
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Safety: EN 61010-2-201, UL 61010-2-201
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6


Time: 932,351 hrs
Standards: Telcordia (Bellcore) Standard TR/SR


Warranty Period: 5 years

MRC Server Software

Amazon AWS EC2: Supports Amazon AWS EC2 service (can be downloaded from AWS Marketplace)
Licensing: Apply for an MRC Server License from Moxa’s channels before activating your software portal

MRC Client Software

Operating System: Windows 7/10 (32-bit or 64-bit)
