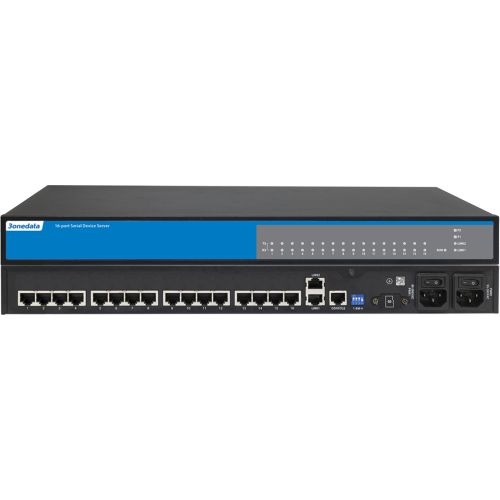

NP5100-2T-16DI(3IN1)-RJ
Serial Device Server, 16 port RS232/485/422+2 port 10/100Baes-T(X) (dual IPs and MACs),dual power supply 85~265VAC, 1U 19 rackmount,support security function
SPEDIZIONE GRATUITA
Introduction
NP5100 series are the safe serial networking server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 16/32 RS-232/485/422 serial ports to 2 100M Ethernet copper ports. It adopts rack mounting to meet the requirements of different application scenes. Serial device server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SMTP, SNTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports TCP Server, TCP Client, UDP Server, UDP Client work modes and TELNET, WEB and SSHD access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Features and Benefits
- Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backups
- Support 300bps-115200bps line speed and non-blocking communication
- Support TCP Server, TCP Client, UDP Server, UDP Client and other operating modes
- Support OLED display that could configure device IP address
- Support cross-gateway and cross-router communication
- Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
- Support delimiter matching communication, achieving various demands for serial port packaging
- Support FIFO, compatible with various old type terminal devices
- Support IP address and MAC address filtering, which can achieve accurate access control easily
- Support graded user management to implement humanized authority management
- Support serial port status, parameters and error information monitoring, ensuring the communication status be clear at a glance
- Support RTS/CTS, DTR/DSR and XON/XOFF flow control
- Compatible with various virtual serial port management software
- Support virtual serial port drive access mode and automatic connection recovery after network interruption
- Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
- Support standard TCP/IP SOCKET application access
- TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
- UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
- Support multiple configuration forms like Windows configuration tool, TELNET, SSHD and WEB
- SSHD and HTTPS configuration can guarantee the access security of data
- Support multiple alarm methods, including e-mail alarm, log alarm and system alarm
- Support multiple alarm events including power supply connection, warm start, cold start, DCD and DSR
- Conduct network diagnosis and troubleshooting via Ping and Traceroute
- Support ARP function, which can prevent communication interrupt caused by the switch and router aging the MAC address of serial server
Specifications
Ethernet
Standard: 10Base-T, 100Base-TX
Protocol: TCP, UDP, ARP, HTTP, HTTPS, TELNET, ICMP, SMTP, SNTP, DHCP, DNS
Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning
Interface form: RJ45
Interface quantity: 2
Duplex mode: Full/Half Duplex Mode Self-adaptive
Work mode: 4 sessions, support work modes such as TCP Server, TCP Client, UDP Server and UDP Client
Serial Port
Standard: EIA RS-232C, RS-485, RS-422
Quantity of serial port: 16 3IN1 serial ports
RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 300~115200bps
Data bit: 5bit, 6bit, 7bit, 8bit
Parity bit: None, Even, Odd, Space, Mark
Stop bit: 1bit, 1.5bit, 2bit
Interface form: RJ45
Flow control: RTS/CTS, DTR/DSR, XON/XOFF
Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC)
Load capacity: RS-485/422 end supports 32 points polling (customizable 128 points)
Transmission distance: RS-232, 15m; RS-485/422, 1200m
Pull high/low resistor for RS-485: 4.7kΩ
Electromagnetic isolation strength: 1kVDC
Console port
CLI command line management port (RS-232), RJ45
Configuration Method
WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration
Security
Classification of User Permissions, IP address filtering, MAC address filtering, HTTP/HTTPS console, TELNET console
Indicator
Power supply indicator, Ethernet port indicator, serial port indicator, running indicator
Power Supply
85~265VAC dual power supply redundancy, AC power supply socket with switch
Power Consumption
No-load: 5.6W@220VAC
Full-load: 13.2W@220VAC
Working environment
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%~95%(no condensation)
Physical Characteristic
Housing: IP40 protection, metal
Installation: rack mounting
Dimension (W x H x D): 440mm×44mm×265.6mm
Weight: 3.04kg
Industrial Standard
IEC 61000-4-2 (ESD, electrostatic discharge), Level 4
l Air discharge: ±15kV
l Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4
l Power supply: ±4kV
l Ethernet port: ±2kV
l Serial port: ±2kV
IEC 61000-4-5 (Surge), Level 4
l Power supply: common mode±4kV, differential mode±2kV
l Network port: common mode±4kV, differential mode±2kV
l Serial port: common mode±4kV, differential mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS
Warranty
3 years
