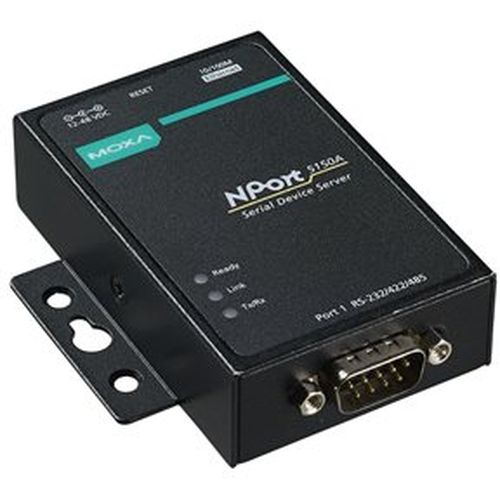

NPort 5150A-T MOXA External Device Servers

NPort 5150A-T MOXA

NPort 5150A-T

1 port device server, 10/100M Ethernet, RS232/422/485, DB9 male, 15KV ESD, 0.5KV serial surge, 12~48VDC, -40~75°C

Quantità':

Prezzo per pezzo

€ 215,09

(IVA esclusa)

€ 262,41 (IVA inclusa)

Prezzo di 1 pz. iva (22%) inclusa: € 262,41

Disponibilità: 20 gg lav

Brand: MOXA

SKU: 91928

Model: NPort 5150A-T

Bisogno di aiuto?


Prodotti Correlati

Planet

ICS-2100T

Prezzo:  € 130,74

OEM

XT-DC015

Prezzo:  € 2,00

OEM

XT-DC016

Prezzo:  € 2,00

MOXA

CBL-PJ21NOPEN-BK-30

Prezzo:  € 7,66

MOXA

DK35A

Prezzo:  € 3,50

MOXA

mini DB9F-to-TB

Prezzo:  € 9,80

MOXA

PWR-12050-WPEU-S1

Prezzo:  € 22,00

MOXA

PWR-12150-EU-SA-T

Prezzo:  € 35,17

3ONEDATA

NP301

Prezzo:  € 69,36

Certificati

CE Certificato
FCC Certificato
UL Certificato
IEC Certificato
RoHS Certificato

Features and Benefits

  • Only 1 W power consumption
  • Speedy 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power lines
  • COM port grouping and UDP multicast applications
  • Screw connectors for secure installation
  • Real COM/TTY drivers for Windows and Linux
  • Standard TCP/IP interface and versatile TCP and UDP operation modes
  • Connect up to 8 TCP hosts

Introduction

The NPort® 5100A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5100A device servers are ultra lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible. The Moxa MiiNe is a small but powerful ARM-based serial-to-Ethernet SoC with RAM and Flash embedded. With the MiiNe inside, the NPort® 5110A series becomes the world’s only device server with power consumption less than 1 W. The NPort® 5100A series saves at least 50% on power consumption compared to existing solutions on the market, helping engineers meet the tough environmental compliance challenges found in today’s industrial environments. Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5100A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions. The NPort® 5100A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® 5100A’s web console guides users through 3 simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this speedy 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort. NPort® 5100A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an e-mail alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Ethernet Interface

Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface

Number of Ports: 1
Serial Standards:
     NPort 5110A: RS-232
     NPort 5130A: RS-422/485
     NPort 5150A: RS-232/422/485
Connector: DB9 male
Serial Line Protection: 15 kV ESD protection for all signals, Level 1 Surge, EN61000-4-5
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kΩ, 150 kΩ

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate: 50 bps to 921.6 kbps

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Software

Network Protocols: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Configuration Options: Web Console (with new Quick Setup), Serial Console (NPort 5110A/5150A only), Telnet Console, Windows Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Physical Characteristics

Housing: Metal
Weight: 340 g
Dimensions:
     Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
     With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 60°C (32 to 140°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Power Requirements

Input Voltage: 12 to 48 VDC
Power Consumption:
     NPort 5110A: 82.5 mA @ 12 V, 47.3 mA @ 24 V
     NPort 5130A: 89.1 mA @ 12 V, 49.5 mA @ 24 V
     NPort 5150A: 92.4 mA @ 12 V, 52.8 mA @ 24 V

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS: EN 55024
Power Line Protection:
     EN 61000-4-4(EFT) Level 2,
     EN 61000-4-5(Surge) Level 3

Reliability

Automatic Reboot Trigger: Built-in WDT (watchdog timer)
MTBF (mean time between failures): 2,231,530 hrs

Warranty

Warranty Period: 5 years
