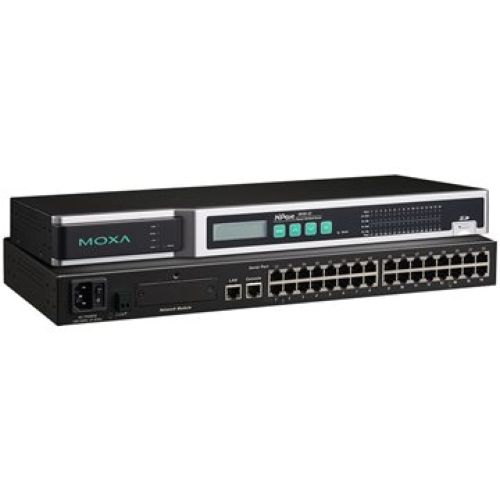

NPort 6650-32 MOXA terminal servers

Features and Benefits

• Up to 32 ports for high density environments
• Non-standard baudrates supported with high precision
• Port buffers for storing serial data when the Ethernet is off-line
• Supports IPv6
• Ethernet redundancy (STP/RSTP/Turbo Ring) with network module
• Modular design for scalability
• DES/3DES/AES for highly secure data transmissions

Introduction

The NPort® 6600 series of secure device servers is the right choice for applications that use large numbers of serial devices packed into a small space. Security breaches are intolerable and the NPort® 6600 ensures data transmission integrity with support of EDS, 3DES, and AES encryption algorithms. Serial devices of any type can be connected to the NPort® 6600, and each serial port on the NPort® can be configured independently for RS-232, RS-422, or RS-485 transmission. The NPort® 6600 has a built-in LCD panel for configuration. The panel displays the server name, serial number, and IP address, and any of the device server’s configuration parameters, such as IP address, netmask, and gateway address, can be updated easily and quickly. The NPort® 6600 provides adjustable termination, pull high, and pull low resistors for RS-485 communication. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals, and the pull high and pull low resistors may need adjusting to maintain the integrity of the electrical signal. Since no set of resistor values works for every environment, the NPort® 6600 allows manual adjustment of the resistor values for each serial port using built-in DIP switches. Note: The LCD panel is only available with standard temperature models.

Ethernet Interface

Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation: 1.5 kV built-in

Optical Fiber Interface (with network module)

Table:
     100BaseFX:
          Multi-mode:
               Wavelength: 1300 nm
               Max. TX: -10 dBm
               Min. TX: -20 dBm
               RX Sensitivity: -34 to -30 dBm
               Link Budget: 12 dB
               Typical Distance: 4 km
               Saturation: -6 dBm

          Single-mode:
               Wavelength: 1310 nm
               Max. TX: 0 dBm
               Min. TX: -5 dBm
               RX Sensitivity: -36 to -32 dBm
               Link Budget: 29 dB
               Typical Distance: 40 km
               Saturation: -3 dBm

Serial Interface

Number of Ports: 8, 16, or 32
Serial Standards:
     NPort 6610: RS-232
     NPort 6650: RS-232/422/485
Connector: 8-pin RJ45
RS-485 Data Direction Control: ADDC® (Automatic Data Direction Control)
Serial Line Protection: 15 kV ESD protection for all signals
Console Port: Dedicated RS-232 console port on rear panel (8-pin RJ45)

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Pull High/Low Resistor for RS-485: 1 kΩ, 150 kΩ
Terminator for RS-485: 120 Ω

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Memory Expansion Slot

Slot Type: SD socket (supports up to 2 GB)

Software

Network Protocols: ICMP, IPv4/v6, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c/V3, HTTP, SMTP, ARP, PPPoE
Security Protocols: DES, 3DES, AES, SSH, SSL
Configuration Options: Web Console, Serial Console, Telnet Console, Windows Search Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x
Management: SNMP MIB-II
IP Routing: Static, RIP-I, RIP-II

Operation Modes

Standard: Real COM, TCP Server, TCP Client, UDP, Pair Connection, RFC2217, Terminal, Reverse Telnet, Ethernet Modem, Printer, PPP, Disabled
Secure: Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH

Applications

Terminal Sessions: 8 sessions per port

Physical Characteristics

Housing: Metal
Weight:
     NPort 6600-8: 3460 g
     NPort 6600-16: 3580 g
     NPort 6600-32: 3600 g
Dimensions:
     Without ears: 440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
     With ears: 480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)

Environmental Limits

Operating Temperature:
     Standard Models: 0 to 55°C (32 to 131°F)
     Wide Temp. Models: -40 to 75°C (-40 to 167°F)
     Storage Temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Power Requirements

Input Voltage:
     AC Models: 100 to 240 VAC
     DC Models: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
Power Consumption:
     AC Models: 285 mA @ 100 VAC, 190 mA @ 240 VAC
     DC Models: 293 mA @ 48 VDC
Alarm Contact: Relay output with current carrying capacity of 1 A @ 24 VDC
Power Line Protection: 1 kV burst (EN 61000-4-4: EFT/B), 0.5 kV surge (EN 61000-4-5)

Standards and Certifications

Safety: UL 60950-1, EN 60950-1
EMC: CE, FCC
EMI: EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS:
     EN 55024,
     EN 61000-4-2 (ESD) Level 2/3,
     EN 61000-4-3 (RS) Level 2,
     EN 61000-4-4 (EFT) Level 2,
     EN 61000-4-5 (Surge) Level 2,
     EN 61000-4-6 (CS) Level 2,
     EN 61000-4-8 Level 1,
     EN 61000-4-11
Freefall: IEC-68-2-6, IEC-68-2-34, IEC-68-2-32
Vibration: IEC-68-2-6, IEC-68-2-34
Green Product: RoHS, CRoHS, WEEE

Reliability

Alert Tools: Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger: Built-in WDT (watchdog timer)
MTBF (mean time between failures):
     NPort 6610-8: 135,891 hrs
     NPort 6610-16: 102,373 hrs
     NPort 6610-32: 68,707 hrs
     NPort 6650-8: 135,370 hrs
     NPort 6650-16: 101,783 hrs
     NPort 6650-32: 68,177 hrs

Warranty

Warranty Period: 5 years
