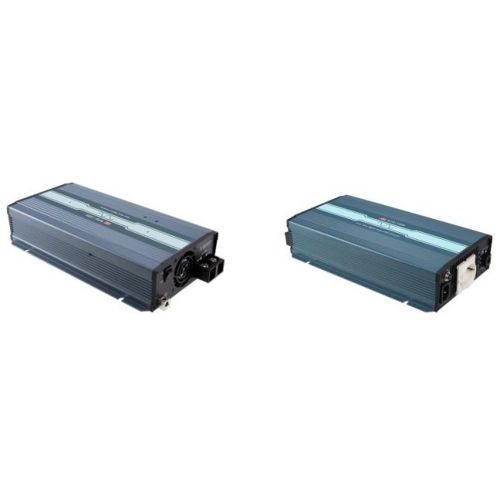

NTU-1200-224EU Mean Well Onda Pura

Features

• Built-in UPS function (AC by-pass)
• True sine wave output (THD<3%)
• High surge power up to 2000W
• Temperature controlled cooling fan
• AC output voltage and frequency selectable by DIP S.W
• No load disspation <1.5W at standby saving mode
• -25°C ~ +70°C wide operating temperature
• Power ON-OFF remote control
• Front panel indicator for operation status
• Protections:
•         Input: Reverse polarity/ DC low alarm / DC low shutdown / Over voltage
•         Output: Short circuit / Overload / Over temp.
• Battery over discharge protection(Low voltage disconnect)
• Suitable for lead-acid or li-ion batteries
• Remote controller
• Support RS-232 communication
• Pull handle accessory available(sold sperately)
• Conformal coating
• 3 years warranty

Applications

Home and office appliance
Power tools
Portable equipment
Vehicle
Yacht
Off-grid solar power system
Wireless network
Telecom or datacom system

Description

NTU-1200 is a 120OW highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function(AC by-pass). Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 2000W peak power, adjustable AC output voltage and frequency, -25~+70°C wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTU- 1200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Specifications

AC OUTPUT

RATED POWER(Continuous): 1200W
OVER RATED POWER(3 Min.): 1380W
PEAK POWER(10 Sec.): 1800W
SURGE POWER(30 Cycles): 2000W
AC VOLTAGE:
    Default setting set at 230VAC
    200 / 220 / 230 / 24OVac selectable by DIP S.W
FREQUENCY:
    Default setting set at 50Hz±0.1Hz
    50/60Hz selectable by DIP S.W
WAVEFORM: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated input voltage

DC INPUT

DC VOLTAGE: 24V
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 60A
No LOAD DISSPATION (Typ.):
    NON-SAVING MODE: 25w
    SAVING MODE: Default disable, ≤1.2W ~ 1.5W by models @ auto detec AC outp ut load ≤10W will be changed to saving mode
                               <8W
OFF MODE CURRENT DRAW: ≤1mA
EFFICIENCY:(Typ.): 92%
BATTERY TYPES: Lead Acid or li-ion
