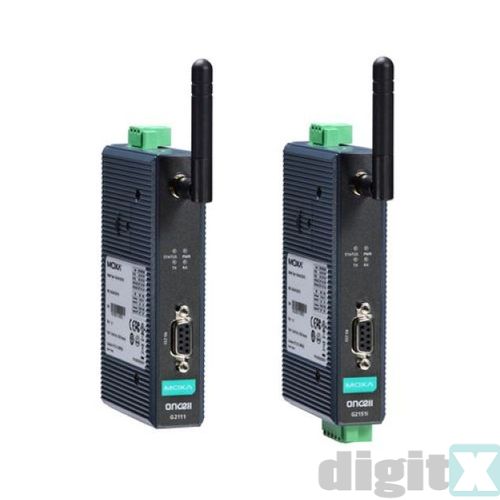

OnCell G2111 MOXA industrial cellular

Features and Benefits

• Quad-band GSM/GPRS 850/900/1800/1900 MHz
• Separate RS-232 and RS-422/485 serial interfaces (G2151I only)
• 2.5 kV RMS isolation for 1 min. for all serial signals (G2151I only)
• Extended operating temperature from -25 to 70°C (G2111-T only)
• LED indicators for GSM/GPRS and data transmission status
• DIN-rail and wall mounting

Introduction

The OnCell G2111/G2151I series of industrial quad-band GSM/GPRS modems are designed to transmit data and short messages (SMS) over GSM/GPRS mobile networks. The modems can be used to increase the efficiency of maintenance and communication, but do not require extensive training. In addition, the modems can be mounted on a DIN rail or wall. The OnCell G212111/G2151I series modems accept a 12 to 48 VDC power input, making them suitable for use with a variety of field power sources. The serial ports feature 15 kV ESD line protection to protect the products from harmful electrical discharge, and separate RS-232 and RS-422/485 interfaces are built into the OnCell G2151I, each with 2.5 kV RMS isolation protection for one minute. The two serial interfaces on the OnCell G2151I make it ideal for attaching all kinds of devices, such as stand-alone controllers, PC COM ports, and multi-dropped electric meters. In addition, the OnCell G2111-T has an extended operating temperature (-25 to 70°C) design that makes it suitable for heavy industrial use.

Cellular Interface

Standards: GSM/GPRS
Band Options: Quad-band 850/900/1800/1900 MHz
GPRS Multi-slot Class: Class 10
GPRS Terminal Device Class: Class B
GPRS Coding Schemes: CS1 to CS4
CSD Data Transmission Rate: Up to 14,400 bps
Tx Power: 1 watt GSM 1800/1900, 2 watts EGSM 900/GSM 850

SIM Interface

Number of SIMs: 1
SIM Control: 3 V

Serial Interface

Number of Ports: 1
Serial Standards:
     OnCell G2111: RS-232 (DB9 female connector)
     OnCell G2111-T: RS-232 (DB9 female connector)
     OnCell G2151I: RS-232 (DB9 female connector), RS-422/485 (5-pin terminal block connector)
ESD Protection: 15 kV (G2111 only)
Optical Isolation: 2.5 kV (G2151I only)

Serial Communication Parameters

Data Bits: 8
Stop Bits: 1
Parity: None
Flow Control: RTS/CTS
Baudrate: 300 bps to 230.4 kbps

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Physical Characteristics

Housing: ABS + PC, IP30 protected
Weight: 150 ± 5 g
Dimensions: 27 x 123 x 79 mm (1.06 x 4.84 x 3.11 in)

Environmental Limits

Operating Temperature:
     OnCell G2111/G2151I: -20 to 55°C (-4 to 131°F)
     OnCell G2111-T: -25 to 70°C (-22 to 158°F)
Storage Temperature: -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Power Requirements

Input Voltage: 12 to 48 VDC
Power Consumption: 12 to 48 VDC, 100 mA (idle), 625 mA (max.)

Standards and Certifications

Safety: UL 60950-1
EMC: FCC Part 15 Subpart B Class A, EN 55022 Class A, EN 55024
Radio: FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 511

Reliability

MTBF (mean time between failures):
     OnCell G2111/G2111-T: 925,000 hrs
     OnCell G2151I: 864,000 hrs

Warranty

Warranty Period: 5 years
