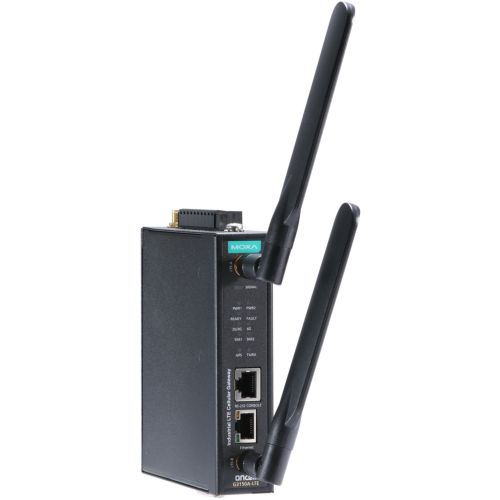

OnCell G3150A-LTE-EU-T MOXA Cellular Gateways



OnCell G3150A-LTE-EU-T

1 port Industrial LTE Cellular Gateway, B1/B3/B7/B8/B20, RS-232/422/485, -30 to 70°C


Prezzo per pezzo

€ 765,77

(IVA esclusa)

€ 934,24 (IVA inclusa)

Articoli Prezzo (IVA esc.)
1+ pz.€ 765,77
5+ pz. € 742,80

Prezzo di 1 pz. iva (22%) inclusa: € 934,24

Disponibilità: 20 gg lav

Brand: MOXA

SKU: 110155

Model: OnCell G3150A-LTE-EU-T

Bisogno di aiuto?


CE Certificato
FCC Certificato
UL Certificato
IEC Certificato
IECEX Certificato
ATEX Certificato
RoHS Certificato

Features and Benefits

  • Dual cellular operator backup with dual-SIM GuaranLink for reliable cellular connectivity
  • Rugged hardware design well suited for hazardous locations(ATEX Zone 2/IECEx)
  • VPN secure connection capability with IPSec, GRE, and OpenVPN protocols
  • Industrial design with dual-power inputs and built-in DI/DO support
  • Power isolation design for better device protection against harmful electrical interference


The OnCell G3150A-LTE is a reliable, secure, LTE gateway with state-ofthe-art global LTE coverage. This LTE cellular gateway provides a more reliable connection to your serial connection and Ethernet network for cellular applications.
To enhance industrial reliability, the OnCell G3150A-LTE features isolated power inputs, which together with high-level EMS and widetemperature support give the OnCell G3150A-LTE the highest level of device stability for any rugged environment. In addition, with dual-SIM GuaranLink and dual power inputs, the OnCell G3150A-LTE supports network redundancy to ensure uninterrupted connectivity.
The OnCell G3150A-LTE also comes with a 3-in-1 serial port for serial over LTE cellular network communication. Use the OnCell G3150A-LTE to collect data and exchange data with serial devices.

High-Speed Remote Gateway with VPN and Network Security

  • Multi-band support
  • Secure and reliable VPN support with NAT/ OpenVPN / GRE/ IPsec functionality
  • Complies with the following cybersecurity standards:

IACS Components: IEC 62443-4-2 Level 1
IACS (Industrial Automation and Control Systems)

Industrial Isolation and Redundancy Design

  • Dual power inputs for power redundancy
  • Dual-SIM support for cellular connection redundancy
  • Power isolation for power source insulation protection
  • 4-tier GuaranLink for reliable cellular connectivity
  • -30 to 70°C wide operating temperature support


Cellular Interface

Band Options:
EU Band:
• B1 (2100 MHz) / B3 (1800 MHz) / B7 (2600 MHz) / B8 (900 MHz) /B20 (800 MHz)
• UMTS/HSPA 2100/1900/850/800/900 MHz
US Band:
• B2 (1900 MHz) / B4 (AWS) / B5 (850 MHz) / B13 (700 MHz) / B17 (700 MHz) / B25 (1900 MHz)
• UMTS/HSPA 2100/1900/AWS/850/900 MHz
• Universal quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz
LTE Data Rate:
• 20 MHz bandwidth: 100 Mbps DL, 50 Mbps UL
• 10 MHz bandwidth: 50 Mbps DL, 25 Mbps UL
HSPA Data Rate: 42 Mbps DL, 5.76 Mbps UL (Category 24, 6)
EDGE Data Rate: 237 kbps DL, 237 kbps UL (Class 10, 12)
GPRS Data Rate: 85.6 kbps DL, 42.8 kbps UL

LAN Interface

Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45


Cellular Antenna Connectors: 2, SMA (female), MIMO for LTE, antenna diversity for WCDMA
GNSS: 1 SMA (female), GPS (1575.42 MHz), GLONASS (1602 MHz)
Console Port: RS-232 (RJ45)
Ground Screw: M5
Reset Button: Power Reset/Factory Default Reset

I/O Interface

Alarm Contact: 1 relay output with current carrying capacity of 1 A @ 24 VDC
Digital Inputs: 2 electrically isolated inputs
• +13 to +30 V for state “1”
• +3 to -30 V for state “0”


Network Protocols: ICMP, DDNS, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP, NTP (SNTP client), ARP
Routing/Firewall: NAT, VPN tunneling, port forwarding, IP/MAC/Port filtering, Access IP lists
• IPSec VPN:
> Encryption: DES, 3DES, AES, MD5, SHA-1, DH2, DH5
> Authentication: PSK/X.509/RSA
> GRE over IPsec
• OpenVPN:
> OpenVPN (Server / Client)
> Tunnel mode (routing) and TAP mode (bridge)
> Encryption: Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-
128/192/256 CBC
• Throughput:
> 20 Mbps max.*
> Concurrent VPN Tunnels: Max. of 5 (Responder/Initiator)
*The maximum throughput is determined using specific testing equipment; the actual throughput depends on the cellular connection environment and conditions.
Applications: Real COM, Reverse Real COM, TCP Server, TCP Client, UDP, RFC2217
Management Options: Remote SMS Control, SNMPv1/v2c/v3, Web / Telnet / Serial Console, alarm via Email, SMS, SNMP trap

Software Specifications (Moxa Proprietary)

GuaranLink: Dual-SIM, 4-tier heartbeat for reliable and persistent cellular connectivity
OnCell Central Manager: A powerful tool that makes two sites configured with Private IP addresses to access each other over a public network. Capable large scale centralized device management up to 2000pcs device connection and 200 lines for data transfer. Provide Pie charts present device status and information in a clear and readable format and easy to manage, group, monitor, configure, and upgrade the firmware of all your devices from OnCell Central Manager
Wireless Search Utility: Simple device configuration and management

SIM Interface

Number of SIMs: 2, full-sized (1FF)

Serial Interface

Number of Ports: 1
Serial Standards: RS-232/422/485, software selectable
Connector: DB9 male

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2 (when parity = None)
Parity: None, Even, Odd, Space, Mark
Baudrate: 75 bps to 921.6 kbps

Serial Signals

RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Physical Characteristics

Housing: Metal, providing IP30 protection
Weight: 492 g (1.08 lb)
Dimensions: 126 x 30 x 107.5 mm (4.96 x 1.18 x 4.23 in)

Environmental Limits

Operating Temperature:
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models:-30 to 70°C (-22 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

Number of Power Inputs: 2 (terminal block), redundant dual inputs
Input Voltage: 12 to 48 VDC
Input Current: 0.7 A @ 12 VDC; 0.2 A @ 48 VDC
Reverse Polarity Protection: Present

Standards and Certifications

Safety: UL 60950-1
Hazardous Location: ATEX Zone 2, IECEx (available in April)
EMC: EN 61000-6-2/6-4
EMI: CISPR 22, FCC Part 15B Class A
IEC 61000-4-2 ESD, Level 4: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS, Level 3: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT, Level 3: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge, Level 3: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS, Level 3: 10 V; 150 kHz to 80 MHz
IEC 61000-4-8, Level 4: 30 A/m
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Shock: IEC 60068-2-27
• FCC ID N7NMC7355
• EN 301 489-1, EN 301 489-7, EN 301 511/4

MTBF (mean time between failures)

Time: > 528,596 hrs
Standard: Telcordia SR332
