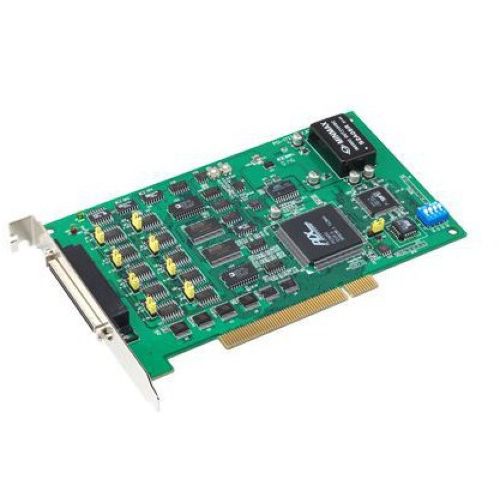

PCI-1723-BE
16-bit, 8-ch Analog Output PCI Card with 16-ch Digital I/O
Bisogno di aiuto?
Analog Output
Channels: 8
Resolution: 16 bits
Output Rate: Static update
Output Range:
Bipolar: (V) ±10
Current Loop (mA): 0 ~ 20, 4 ~ 20 (software programmable)
Driving Capability: 5 mA
Output Impedance: 0.1 W max.
Operation Modes: Software polling, synchronized output
Accuracy:
Relative: ±6 LSB
Differential Non-linearity: ±6 LSB (monotonic)
Digital Input/Output
Channels: 16 (shared by input/output)
Compatibility: 5 V/TTL
Input Voltage:
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Output Capability Sink:
Sink: 0.5 V @ 24 mA
Source: 2.0 V @ 15 mA
General
Bus Type: PCI V2.2
I/O Connectors: 1 x 68-pin SCSI female connector
Dimensions (L x H): 175 x 100 mm (6.9" x 3.9")
Power Consumption:
Typical: 5 V @ 850 mA, 12 V @ 600 mA
Max.: 5 V @ 1 A, 12 V @ 700 mA
Operating Temperature: 0 ~ 60°C (32 ~ 158°F)
Storage Temperature: -20 ~ 85°C (-4 ~ 185°F)
Storage Humidity: 5 ~ 95% RH non-condensing
