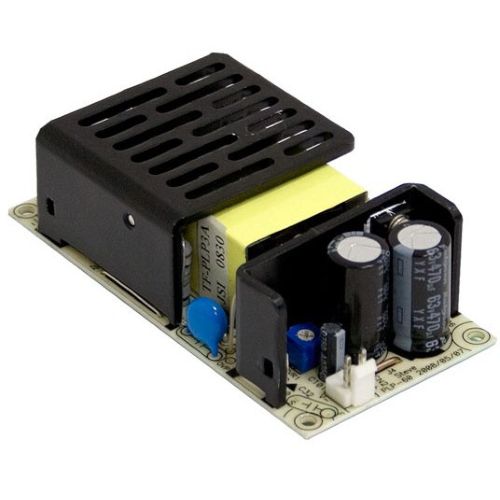

PLP-60-24, AC/DC Open Frame LED Single output Open frame Mix mode (CV+CC) 60W 24Vdc 2.5A I/O with JST connector
PLP-60-24
AC/DC Open Frame LED Single output Open frame Mix mode (CV+CC) 60W 24Vdc 2.5A I/O with JST connector
Bisogno di aiuto?
Features
- Universal AC input / Full range
- Protections: Short circuit / Over current / Over voltage
- Built-in active PFC function
- Cooling by free air convection
- Class 2 power unit
- Output current level adjustable
- 100% full load burn-in test
- High reliability
- Suitable for built-in applications of LED lighting
- 2 years warranty
Specifications
OUTPUT
DC VOLTAGE: 24v
CONSTANT CURRENT REGION: 18~24v
RATED CURRENT: 2.5A
CURRENT RANGE: 0~2.5A
RATED POWER: 60W
RIPPLE & NOISE (max.): 4.5Vp-p
CURRENT ADJ. RANGE: 1.875~2.5A
VOLTAGE TOLERANCE: ±10%
LINE REGULATION: ±3.0%
LOAD REGULATION: ±5.0%
SETUP TIME: 500ms / 230VAC 1200ms/115VAC at full load
INPUT
VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 0.8A/115VAC 0.4A/230VAC
