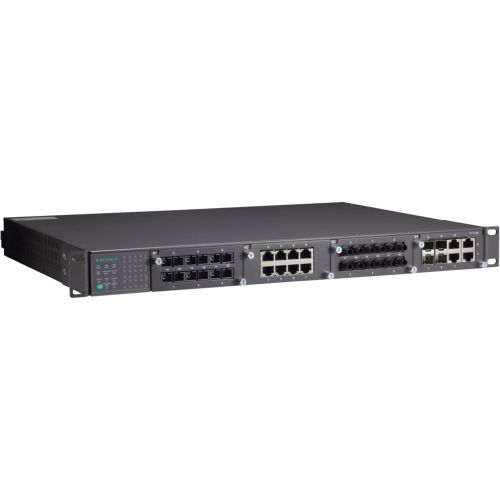

PT-7728-R-HV-HV MOXA Rackmount Ethernet Switches

Features and Benefits

• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588v2 PTP (Precision Time Protocol) for precise time synchronization of networks
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• DHCP Option 82 for IP address assignment with different policies
• EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches),
• RSTP/STP, and MSTP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• Supports advanced VLAN capability with Q-in-Q tagging
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• RMON for efficient network monitoring and proactive capability
• Automatic recovery of connected device’s IP addresses
• Line-swap fast recovery
• Configurable by Web browser, Telnet/Serial console, CLI, Windows utility, and ABC-01 automatic backup configurator

Cyber-security Features

• User passwords with multiple levels of security protect against unauthorized configuration
• SSH/HTTPS is used to encrypt passwords and data
• Lock switch ports with 802.1X port-based network access control so that only authorized clients can access the port
• Disable one or more ports to block network traffic
• 802.1Q VLAN allows you to logically partition traffic transmitted between selected switch ports
• Secure switch ports so that only specific devices and/or MAC addresses can access the ports
• Radius/TACACS+ allows you to manage passwords from a central location
• SNMPv3 provides encrypted authentication and access security

Introduction

The PowerTrans PT-7728 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4). The PT-7728’s Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. The modular design of the PT-7728 also makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 Fast Ethernet ports. Along with the optional front or rear wiring, these features together make the PT-7728 suitable for a variety of industrial applications.

Technology

Standards:
     IEEE 802.3 for 10BaseT
     IEEE 802.3u for 100BaseT(X) and 100BaseFX
     IEEE 802.3ab for 1000BaseT(X)
     IEEE 802.3z for 1000BaseX
     IEEE 802.3x for Flow Control
     IEEE 802.1D for Spanning Tree Protocol
     IEEE 802.1w for Rapid Spanning Tree Protocol
     IEEE 802.1s for Multiple Spanning Tree Protocol
     IEEE 802.1Q for VLAN Tagging
     IEEE 802.1p for Class of Service
     IEEE 802.1X for Authentication
     IEEE 802.3ad for Port Trunk with LACP
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/ Client, BootP, TFTP, SNTP, SMTP, RARP, LACP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588v2 PTP, EtherNet/IP, Modbus/TCP, IPv6, SNMP Inform, NTP Server/Client
MIB: MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control

Switch Properties

Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
Switching Bandwidth: 12.8 Gbps
Packet Buffer Memory: 32 MB

Interface

Fast Ethernet: Slots 1, 2, and 3 for combinations of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules with 10/100BaseT(X) (TP/M12 interface), 100BaseFX (SC/ST/MTRJ connector), or 100BaseSFP.
Gigabit Ethernet: Slot 4 for 2 or 4-port PM-7200 Gigabit Ethernet combo module, 10/100/1000BaseT(X) or 1000BaseSFP
Console Port: RS-232 (RJ45)
System LED Indicators: STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL
Mode LED Indicators: LNK/ACT, FDX/HDX, RING/CHAIN PORT, COUPLER PORT, SPEED
Alarm Contact: 1 relay output with current carrying capacity of 3 A @ 30 VDC or 3 A @ 240 VAC

Power Requirements

Input Voltage:
     24 VDC (18 to 36 V)
     48 VDC (36 to 72 V)
     110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC)
Note: Compliant with EN 50155 on 24/48/110 VDC
Input Current (all ports are equipped with fiber):
     Max. 2.58 A @ 24 VDC
     Max. 1.21 A @ 48 VDC
     Max. 0.64/0.33 A @ 110/220 VDC
     Max. 0.53/0.28 A @ 110/220 VAC
Overload Current Protection: Present
Connection: 10-pin terminal block
Reverse Polarity Protection: Present

Physical Characteristics

Housing: IP30 protection
Dimensions: 440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
Weight: 5900 g
Installation: 19’’ rack mounting

Environmental Limits

Operating Temperature: -40 to 85°C (-40 to 185°F), cold start requires min. of 100 VAC at -40°C
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
Power Automation: IEC 61850-3, IEEE 1613
Traffic Control: NEMA TS2
Rail Traffic: EN 50155*, EN 50121-4

Warranty

Warranty Period: 5 years
