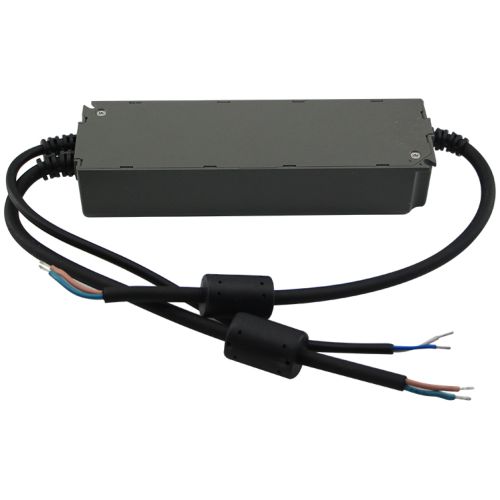

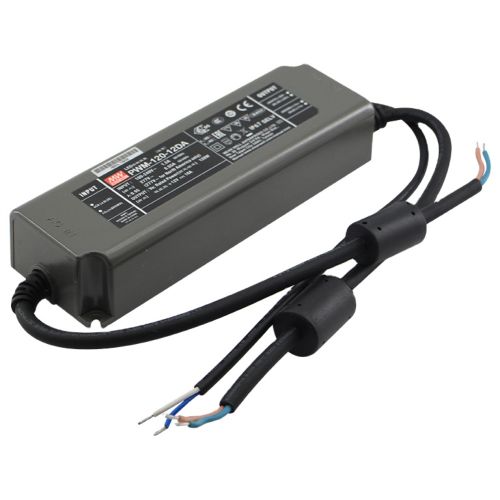

PWM-120-12DA Mean Well AC DC Driver Led

 Features

• Constant voltage PWM style output
• Emergengcy lighting application is available according to IEC61347-2-13
• Built-in active PFC function and class II design
• No load power consumption <0.5W/ standby power consumption <O.5W(DA/DA2-type) hazardous (classified) location.
• Fully encapsulated with IP67 level
• Function options: 3 in 1 dimming (dim-to-off); DALI/DALI-2
• Minimum dimming level 0.2% for DALI type
• Typical Iifetime>50000 hours and 5 years warranty

Applications

• LED strip lighting
• Indoor LED lighting
• LED decorative lighting
• LED architecture lighting
• Type “HL” for use in class I, division 2

Description

PWM-120 series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output,
which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of
LED strips. PWM-120 operates from 90~305VAC and offers models with different rated voltage ranging
between 12V and 48V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series
is able to operate for -40°C ~ +90°C case temperature under free air convection. The entire series is rated
with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-120 is equipped
with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips
applications.

Specifications

OUTPUT

DC VOLTAGE: 12v
RATED CURRENT: 10A
RATED POWER: 120w
DIMMING RANGE: 0 ~ 100%
SETUP, RISE TIME: 500ms, 80ms/ 230VAC or 115VAC
HOLD UP TIME (Typ.): 16ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE: 90 ~ 305VAC              127 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 1.3A/115VAC        0.65A/230VAC        0.55A/ 277VAC
