SDC-2.4-15
Cavity Backed Directional antenna for outdoor, Frequency Range 2400-2485 MHz for WLAN band, Polarization Linear Vertical or Horizontal
Bisogno di aiuto?
Description

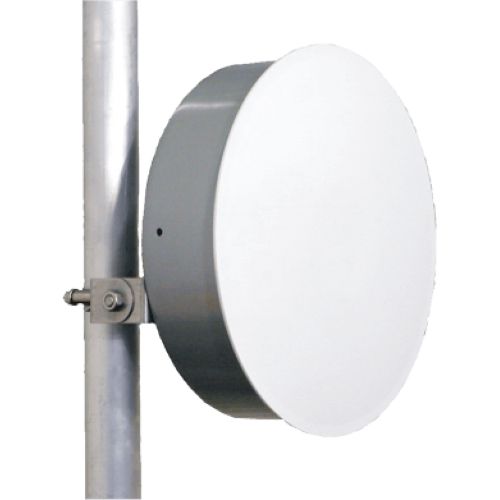

Directional base station antenna for outdoor use working on 2400-2485 MHz conceived for WLAN system. The radiant element, made of brass, is mounted into a metal case and sealed with a thermoplastic cover. It’s supplied with a stainless steel bracket for an easy installation on the mast in vertical or horizontal polarization.
Specifications
Electrical Data
Type: Cavity Backed
Frequency Range: 2400-2485 MHz for W-LAN band
Impedance: 50 Ω Unbalanced
Polarization: Linear Vertical or Horizontal
Gain: 15 dBi
Half Power Beam Width
E-plane: 33° at 2442.5 MHz
H-plane: 27° at 2442.5 MHz
Downtilt: Mechanical: Bracket tilt function
Front to back ratio: ≥ 25 dB
V.S.W.R. in Bandwidth: ≤ 1.6:1
Max Power: 20 Watts (CW) at 50° C
Lightning protection: DC-ground
Connector type: SMA-female
Mechanical Data
Housing Material: Case: aluminium grey RAL 9007; Antenna element: brass;
Bracket and hardware: stainless steel
Radome Material: Light grey RAL 7035 thermoplastic UV stabilized
Wind load / Resistance: 104 N at 150 Km/h / 160 Km/h
Wind surface: 0.06 m2
Dimensions (approx.): ∅ 275 x 80 mm without bracket
Weight (approx.): 720 gr
Mounting:
Mast ∅ 35-50 mm with clamp included
Wall with mounting screws (not included)
