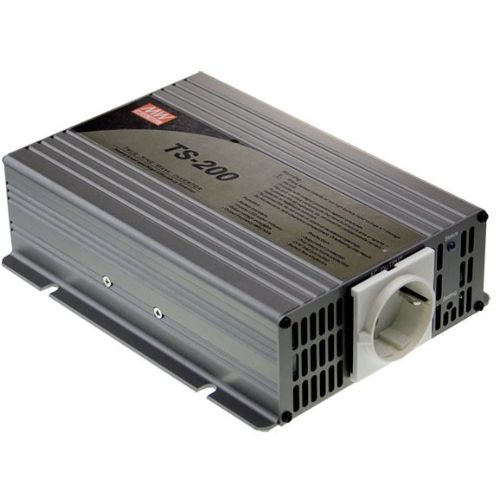

TS-200-212B, DC/AC Inverter True Sine Wave Open Frame 200W Input 10.5-15Vdc Output 230Vac EU TYPE B OUTLET
TS-200-212B
DC/AC Inverter True Sine Wave Open Frame 200W Input 10.5-15Vdc Output 230Vac EU TYPE B OUTLET
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Features
- True sine wave output (THD<3%)
- High surge power up to 400W
- High efficiency up to 88%
- Fanless design, cooling by free air convention
- Built-in remote ON-OFF control
- Front panel indicator for operation status
- Power ON-OFF switch
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short/ Input polarity reverse / Overload
- Application: Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
- Optional monitoring connection cable (MW order No.: TN1500-RS232)
- 3 years warrantly
Specifications
OUTPUT
RATED POWER (Typ.): 200W
MAXIMUM OUTPUT POWER: 230W for 180 sec. / 300W for 10 sec. / surge power 400W for 30 cycles(typ.)
AC VOLTAGE:
Factory setting set at 230VAC
200 / 220 / 230 / 240VAC selectable by setting button S.W
FREQUENCY: 50±0.1 Hz 50/60Hz selectable by setting button S.W
WAVEFORM: True sine wave (THD<3%)
AC REGULATION (Typ.): ±3.0%
FRONT PANEL INDICATOR: Operation status ; Green: normal, Orange(flashing): remote control OFF, Red: abnormal
INPUT
BAT. VOLTAGE: 12V
VOLTAGE RANGE (Typ.): 10.5 ~ 15VDC
DC CURRENT (Typ.): 20A
NO LOAD CURRENT DRAW (Typ.): 1.25A
OFF MODE CURRENT DRAW: ≤1mA
EFFICIENCY(Typ.): 86%
BATTERY TYPES: Open & sealed Lead Acid
