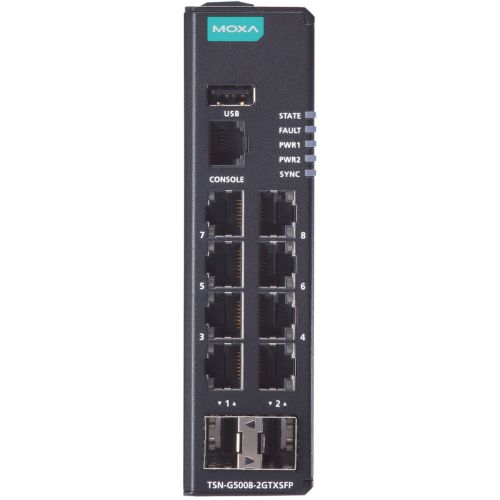

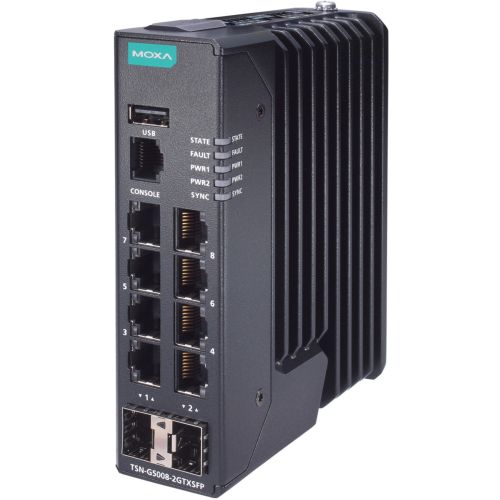

TSN-G5008-2GTXSFP, 8G-port full Gigabit managed Ethernet switch, 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots, -10 to 60°C operating temperature
TSN-G5008-2GTXSFP
8G-port full Gigabit managed Ethernet switch, 6 10/100/1000BaseT(X) ports, and 2 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots, -10 to 60°C operating temperature
SPEDIZIONE GRATUITA
The TSN-G5008Series switches are ideal for making manufacturing networks compatiblewith the vision of Industry 4.0
The switches are equipped with 8Gigabit Ethernet ports and up to 2 fiber-optic ports
The full Gigabitdesign makes them a good choice for upgrading an existing networkto Gigabit speed or for building a new full-Gigabit backbone for futurehigh-bandwidth applications
The compact design and user-friendlyconfiguration interfaces provided by the new Moxa web GUI make networkdeployment much easier
The TSN-G5008 Series leverages standard EthernetTime-sensitive Networking (TSN) technology to enable real-time communicationswith future firmware upgrades adding support for additional TSN standards
- Compact and flexible housing design to fit into confined spaces
- Web-based GUI for easy device configuration and management
- Security features based on IEC 62443
- IP40-rated metal housing
- Supports Time-sensitive Networking (TSN) technology
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEE 1588v2 PTP Precision Time Protocol (hardware-based) IEEE 802.1 AS for Time Synchronization IEEE 802.1 Qbv for Time-aware Shaper |
|---|---|
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 6 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+) | 2 Auto negotiation speed Full/Half duplex mode Auto MDI/MDI-X connection |
| Management | IPv4/IPv6, LLDP, SMTP, SNMP Inform, SNMPv1/v2c/v3, SNMP Trap, DHCP Server/Client, ARP, TFTP, SFTP, HTTP, HTTPS, SSH, Telnet, Private MIB, Syslog, Port Mirror |
|---|---|
| MIB | RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, Q-BRIDGE MIB, IEEE8021-PAE-MIB, IEEE8021-SPANNING-TREE-MIB, SNMPv2-MIB |
| Redundancy Protocols | RSTP, Turbo Chain, STP, Link Aggregation |
| Security | Broadcast storm protection, Trust access control, Login and Password Policy, HTTPS/SSL, SSH, SNMPv3, RADIUS, TACACS+ |
| Time Management | SNTP, NTP Server/Client, IEEE 1588v2 PTP (hardware-based), IEEE 802.1 AS, IEEE 802.1 Qbv |
| Filter | 802.1Q VLAN, Static Multicast |
| MAC Table Size | 9 K |
|---|---|
| Max. No. of VLANs | 256 |
| VLAN ID Range | VID 1 to 4094 |
| Packet Buffer Size | 4 Mbits |
| Console Port | RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
|---|
| USB Connector | USB Type A |
|---|
| Alarm Contact Channels | 1 Relay output with current carrying capacity of 1 A @ 24 VDC |
|---|---|
| Buttons | Reset button |
| Digital Input Channels | 1 |
| Digital Inputs | +13 to +30 V for state 1 -30 to +3 V for state 0 Max. input current: 8 mA |
| LED Indicators | STATE, FAULT, PWR1, PWR2, SYNC |
|---|
| Connection | 2 removable 4-contact terminal block(s) |
|---|---|
| Input Voltage | 12 to 48 VDC Redundant dual inputs |
| Operating Voltage | 9.6 to 60 VDC |
| Input Current | 1.72 A @ 12 VDC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Housing | Metal |
|---|---|
| IP Rating | IP40 |
| Dimensions | 36 x 135 x 115 mm (1.42 x 5.32 x 4.53 in) |
| Weight | 787 g (1.74 lb) |
| Installation | DIN-rail mounting Wall mounting (with optional kit) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
|---|---|
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Safety | UL 61010-2-201 EN 62368-1 |
|---|---|
| EMC | EN 55032/35 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Time | 809,568 hrs |
|---|---|
| Standards | Telcordia (Bellcore), GB |
| Warranty Period | 5 years |
|---|
