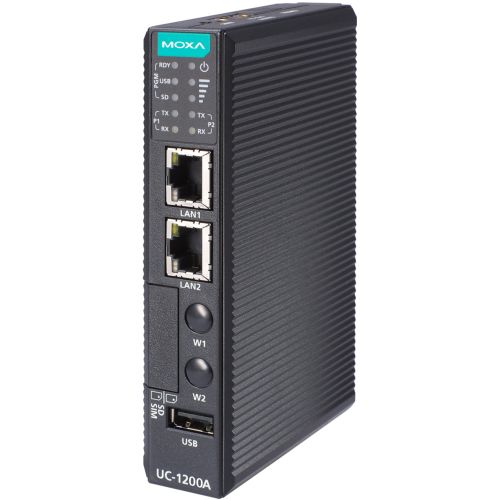

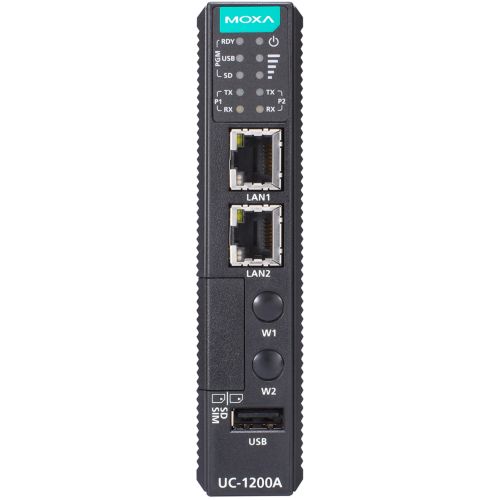

UC-1222A, Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 60°C operating
UC-1222A
Arm® Cortex®-A53 dual-core 64-bit 1-GHz industrial computer with 2 Ethernet ports, 2 RS-232/422/485 serial ports, 1 USB 2.0 port, 1 mPCIe expansion slot, 12 to 24 VDC, TPM v2.0 module, Moxa Industrial Linux (Debian 11, kernel 5.10), -40 to 60°C operating
SPEDIZIONE GRATUITA
Bisogno di aiuto?
The UC-1200A computing platform is designed for embeddeddata-acquisition applications
The computer comes with dual RS-232/422/485serial ports and dual 10/100/1000 Mbps Ethernet ports, as well asa Mini PCIe socket to support a wireless module
These versatile capabilitieslet users efficiently adapt the UC-1200A to a variety of complex communicationssolutions
The UC-1200Ais built around a Cortex-A53 processor that has been optimized foruse in energy monitoring systems, but is widely applicable to a varietyof industrial solutions
With flexible interfacing options, this tinyembedded computer is a reliable and secure gateway for data acquisitionand processing at field sites as well as a useful communications platformfor many other large-scale deployments
- Armv8 Cortex-A53 dual-core 1 GHz processor
- 2 auto-sensing 10/100/1000 Mbps Ethernet ports
- Rich set of programmable LEDs and a programmable button for easy installation and maintenance
- Mini-PCIe slot for wireless module
- -40 to 60°C operating temperature range
- Long-term Linux support until 2031; includes bug fixes and security patches
| CPU | Armv8 Cortex-A53 dual-core 1GHz |
|---|---|
| DRAM | 2 GB DDR4 |
| Pre-installed OS | Moxa Industrial Linux (Debian 11, kernel 5.10), 2031 EOL See www.moxa.com/MIL |
| Storage Pre-installed | 16 GB eMMC |
| Storage Slot | micro SD slots x 1 |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
|---|---|
| Serial Ports | RS-232/422/485 ports x 2, software selectable (terminal block) |
| USB 2.0 | USB 2.0 hosts x 1, type-A connectors |
| Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
| Expansion Slots | mPCIe slots x 1 |
| Number of SIMs | 1 |
| SIM Format | Nano |
| Buttons | Reset button |
| TPM | TPM v2.0 |
| Ethernet Ports | Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2 |
|---|---|
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Baudrate | 300 bps to 921.6 kbps |
|---|---|
| Data Bits | 5, 6, 7, 8 |
| Parity | None, Even, Odd, Space, Mark |
| Stop Bits | 1, 1.5, 2 |
| Flow Control | RTS/CTS XON/XOFF Automatic Data Direction Control (ADDC) for RS-485 RTS Toggle (RS-232 only) |
| RS-232 | TxD, RxD, RTS, CTS, GND |
|---|---|
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| System | Power x 1 SW ready (programmable) USB (programmable) x 1 Micro SD slot (programmable) x 1 Serial Port: TX x 2, RX x 2 |
|---|---|
| Wireless Signal Strength | Cellular x 2; programmable Disconnected: None Very Poor Signal: 1 LED (blinking) Poor Signal: 1 LED Good Signal: 2 LEDs |
| Input Current | 600 mA @ 12 VDC 300 mA @ 24 VDC |
|---|---|
| Input Voltage | 12 to 24 VDC |
| Power Consumption | 4.5 W (minimum; without external USB device attached) 7.2 W (maximum; with external USB device attached) |
| Alert Tools | External RTC (real-time clock) External WDT (watchdog timer) |
|---|
| Dimensions | 101 x 27 x 128 mm (3.98 x 1.06 x 5.04 in) |
|---|---|
| Weight | 224 g (0.5 lb) |
| Housing | Polycarbonate (PC) |
| Installation | DIN-rail mounting Wall mounting (with optional kit) |
| Operating Temperature | -40 to 60°C (-40 to 140°F) |
|---|---|
| Storage Temperature (package included) | -40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Shock | IEC 60068-2-27 |
| Vibration | 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached) |
| EMC | EN 55032/35 EN 61000-6-2/-6-4 |
|---|---|
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-3 RS: 1.4 GHz to 6 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV IEC 61000-4-5 L-PE: 1 kV ; L -L: 0.5 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Safety | EN 62368-1 UL 62368-1 |
| Hazardous Locations | ATEX Class I Division 2 |
| International Approval | RCM KC BSMI |
| Green Product | RoHS, CRoHS, WEEE |
| Time | 924,676 hrs |
|---|---|
| Standards | Telcordia (Bellcore) Standard TR/SR |
| Warranty Period | 5 years |
|---|---|
