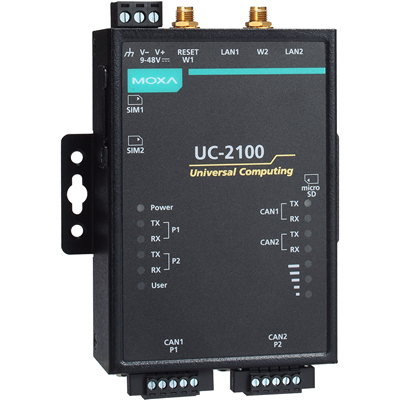

UC-2116-T-LX MOXA Mini Size DIN RAIL

UC-2116-T-LX MOXA

UC-2116-T-LX

Arm-based wireless-enabled palm-sized industrial computer with wide operating temperature, 1 GHz CPU, 2 serial ports and 2 LAN ports, CAT.1/CAT.NB1 built-in, GPS and MOXA Industrial Linux pre-installed

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 560,00
5+ pz.€ 543,20
10+ pz.€ 532,00

Prezzo di 1 pz. iva (22%) inclusa: € 683,20

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 115022

Model: UC-2116-T-LX

Prodotti Correlati

MOXA

Console cable with 4-pin connector

1+ pezzi:  € 4,18


 Features and Benefits

  • Armv7 Cortex-A8 1000 MHz processor
  • Integrated LTE NB-IoT/Cat. M1 module with global band support
  • Dual-SIM slots
  • Moxa Industrial Linux with 10-year long-term support
  • Dual auto-sensing Ethernet ports (10/100 Mbps and 10/100/1000 Mbps)
  • Dual CAN ports with industrial CAN 2.0 A/B protocol supported
  • microSD socket for storage expansion
  • Programmable LEDs and a programmable button for easy installation and maintenance
  • -40 to 75°C operating temperature range

Introduction

The UC-2100-W Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual LAN ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as serial and LAN ports, and wireless connections. The versatile communication capabilities allow users to efficiently adapt the UC-2100-W Series for a variety of complex communications solutions running on a compact palm-sized computer.

The UC-2100-W Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide-temperature applications are available for extreme environments such as those found in the Oil and Gas industry. Furthermore, all models use Moxa’s industrial-grade Linux platform, which provides optimized software features and superior long-term support.

Specifications

Computer

CPU: Armv7 Cortex-A8 1 GHz
DRAM: 512 MB DDR3
Storage Pre-installed: 8 GB eMMC
Pre-installed OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)

Computer Interface

Storage Slot: Micro SD Slot x 1
Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1
                         Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 1

Serial Ports: RS-232/422/485 ports x 2, software-selectable (terminal block)
CAN Ports: CAN 2.0 A/B x 2 (5-pin terminal block)
Cellular Antenna Connector: SMA x 1
GPS Antenna Connector: SMA x 1
Number of SIMs: 2
SIM Format: Nano
Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Buttons: Reset button

Ethernet Interface

Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
ESD Protection: 4 kV, for all signals
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

CAN Interface

Industrial Protocols: CAN 2.0A, CAN 2.0B
Baudrate: 10 to 1000 kbps
Signals: GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+
Isolation: 2 kV (built-in)

Cellular Interface

Band Options: LTE Bands: Band 1 (2100 MHz) / Band 2 (1900 MHz) / Band 3 (1800 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz) / Band 8 (900 MHz) / Band 12 (700 MHz) / Band 13 (700 MHz) / Band 18 (850 MHz) / Band 19 (850 MHz) / Band 20 (800 MHz) / Band 25 (1900 MHz) / Band 26 (850 MHz) / Band 28 (700 MHz)
Carrier Approval: Verizon, AT&T

LED Indicators

System:Power x 1
             Programmable x 1

LAN: 2 per port (10/100 Mbps)
Serial: 2 per port (Tx, Rx)
Wireless Signal Strength: 3
CAN: 2 per port (Tx, Rx)

Power Parameters

Input Voltage: 9 to 48 VDC
Power Consumption: 5.8 W
Input Current: 0.6 A @ 9 VDC, 0.12 A @ 48 VDC

Reliability

Alert Tools: External RTC (real-time clock)
Automatic Reboot Trigger: External WDT (watchdog timer)

Physical Characteristics

Housing: Metal
Dimensions (with ears): 111 x 99 x 34.5 mm (4.37 x 3.90 x 1.36 in)
Weight: 396 g (0.87 lb)
Installation: Wall-mounting, DIN-rail mounting (with optional kit)

Environmental Limits

Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: EN 62368-1, UL 62368-1
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
Shock: IEC 60068-2-27
Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without any USB
devices attached)
Hazardous Locations: Class I Division 2, ATEX, IECEx
Green Product: RoHS, CRoHS, WEEE

MTBF

Time: 496,650 hrs
Standards: Telcordia (Bellcore) Standard

Warranty

Warranty Period: 5 years
