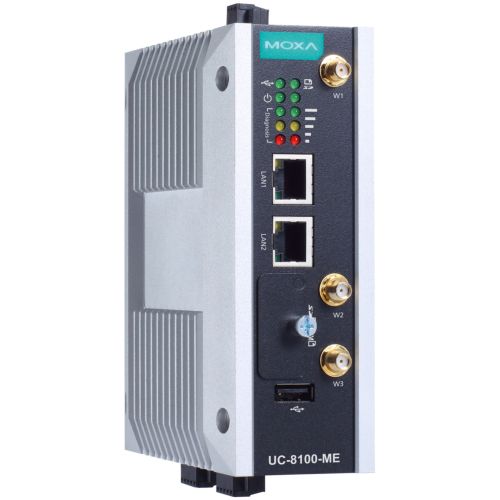

UC-8112-ME-T-LX
Communication-centric RISC computing platform
Certificati
Introduction
The UC-8100-ME-T computing platform is designed for embedded data acquisition applications. The computer comes with dual RS- 232/422/485 serial ports and dual 10/100 Mbps Ethernet ports, as well as a Mini PCIe socket to support cellular modules. These versatile capabilities let users efficiently adapt the UC-8100-ME-T to a variety of complex communications solutions.
Features and Benefits
- Armv7 Cortex-A8 1000 MHz processor
- Dual auto-sensing 10/100 Mbps Ethernet ports
- SD slot for storage expansion
- Programmable LEDs and a programmable button for easy installation and maintenance
- Mini PCIe slot for cellular module
- Cybersecurity functions
- Debian 9 open platform
Specifications
Computer
CPU: Armv7 Cortex-A8 1 GHz
DRAM: 512 MB DDR3
Storage Pre-installed: 4 GB eMMC
Pre-installed OS: Linux Debian 9 (kernel v4.4)
Computer Interface
USB 2.0: USB 2.0 hosts x 1, type-A connectors
Expansion Slots: mPCIe slot x 1
Number of SIMs: 1
SIM Format: Mini
Buttons: Reset button
Ethernet Interface
Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
Magnetic Isolation Protection: 1.5 kV (built-in)
LED Indicators
System:
Power x 1
SD slots x 1
Programmable x 4
Wireless Signal Strength: Cellular/Wi-Fi x 3
Serial Interface
Serial Ports: 2 x RS-232/422/485
Console Port: 1 x 4-pin header to DB9 console port
Data Bits: 5, 6, 7, 8
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
Input Voltage: 12 to 36 VDC
Input Current: 500 mA @ 12 VAC
Power Consumption: 6 W
Reliability
Alert Tools: External RTC (real-time clock)
Automatic Reboot Trigger: External WDT (watchdog timer)
Physical Characteristics
Housing: Metal
Dimensions: 141 x 125.6 x 54.8 mm (5.55 x 4.94 x 2.15 in)
Weight: 550 g (1.22 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Shock: IEC 60068-2-27
Standards and Certifications
Safety: UL 60950-1
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Green Product: RoHS, CRoHS, WEEE
Hazardous Locations: Class I Division 2
MTBF
Time: 535,916 hrs
Standards: Telcordia (Bellcore) Standard
Warranty
Warranty Period: 5 years
