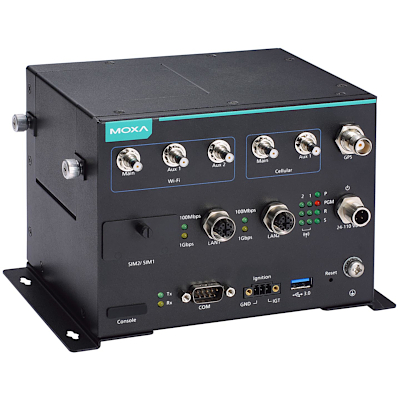

UC-8540-T-CT-LX
Arm-based Vehicle-to-ground computing platform with wide operating temerature multiple WWAN ports, with 2 mPCIe slots, conformal coating, and Linux pre-installed
Prodotti Correlati
Certificati
Features and Benefits
- Supports 1 WWAN connection with 2 SIM card slots
- Supports 1 WLAN (IEEE 802.11b/g/n/ac) connection
- Single-panel I/O design for reduced installation space and easier maintenance
- Front-side access panel for easy maintenance
- Isolated 24 to 110 VDC power input with power-ignition function suitable for vehicle applications
- EN 50155 Tx (-40 to 70°C) operating temperature for harsh environments
- Complies with all EN 50155 mandatory test items
- 5-year warranty
Introduction
Moxa’s UC-8540 is an innovative computing platform designed specifically for transportation applications. Its single-sided I/O design is ideal for vehicle applications, which typically do not have enough room for installing communication devices. Front-side access makes it easy to install or change SIM cards and wiring cables. Users can install or change wireless modules, mSATA cards, and the RTC battery from the top or the bottom for easy maintenance.
The UC-8540 has 1 miniPCIe slot with USB signal to support a 4G/LTE module, and 1 slot with PCIe/USB signal to support a Wi-Fi module. The 4G/LTE module has two SIM card slots, which can be used to enable redundant cellular network communications or geo-fencing SIM card selection by leveraging the built-in MIRF 2.0, a Moxa device remote-management platform with wireless management.
The UC-8540 can be used as a communication-centric computing platform in applications such as vehicle-to-ground communication gateway, TCMS T2G (train-to-ground) gateway, mobile condition monitoring unit, Ethernet Consist Network T2G gateway, and onboard wireless automated fare collection unit.
The UC-8540 uses an open platform based on Debian 8 with Linux kernel 4.1, allowing solution providers to manage software packages via Debian’s APT (advanced packaging tools), or develop software applications with Moxa’s API Library and GNU C Library.
Specifications
Computer
CPU: Armv7 Cortex-A7 dual-core 1 GHz
Storage Pre-installed: 8 GB eMMC
Supported OS: Linux Debian 8 (Linux kernel v4.1)
System Memory Pre-installed: 1 GB DDR3L
Storage Slot: mSATA slots x 1, internal mini-PCIe socket
Computer Interface
Expansion Slots: mPCIe slot x 2
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
Cellular Antenna Connector: QMA x 2
USB 3.0: USB 3.0 hosts x 1, type-A connectors
Wi-Fi Antenna Connector: QMA x 3
Serial Ports: RS-232/422/485 ports x 1, software selectable (DB9 male)
Number of SIMs: 2
Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
GPS Antenna Connector: TNC x 1
SIM Format: Micro
Input/Output Interface
Buttons: Reset button
LED Indicators
System: Power x 1
System Ready x 1
Programmable x 1
LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)
Wireless Signal Strength: Cellular/Wi-Fi x 6
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
GPS Interface
Heading Accuracy: 0.3 degrees
Industrial Protocols: NMEA 0183, version 4.0 (V2.3 or V4.1 configurable), UBX, RTCM
Receiver Types: 72-channel u-blox M8 engine
Time Pulse: 0.25 Hz to 10 MHz
Velocity Accuracy: 0.05 ms
Power Parameters
Input Current: 1.66 A @ 24 VDC, 0.36 A @ 110 VDC
Input Voltage: 24 to 110 VDC
Power Connector: M12 A-coded 4-pin male connector
Power Consumption: 40 W (max.)
Physical Characteristics
Protection: PCB conformal coating
Dimensions (with ears): 190 x 120 x 125 mm (7.46 x 4.72 x 4.92 in)
Dimensions (without ears): 160 x 120 x 120 mm (6.30 x 4.72 x 4.72 in)
Housing: Metal
Installation: Wall mounting
IP Rating: IP40
Weight: Product only: 1,600 g (3.53 lb)
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Standards and Certifications
EMC: EN 55032/24
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway: EN 50121-4, EN 50155
Railway Fire Protection: EN 45545-2
Safety: EN 60950-1, UL 60950-1
Shock: IEC 60068-2-27, IEC 61373, EN 50155
Vibration: IEC 60068-2-64, IEC 61373, EN 50155
Declaration
Green Product: RoHS, CRoHS, WEEE
Warranty
Warranty: Period 5 years
