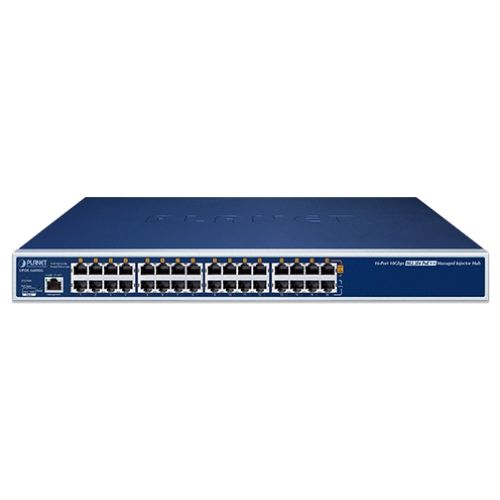

UPOE-1600XG, 16-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub (600W PoE budget, PoE Schedule, 10/100/1G/2.5G/5G/10Gbps data rate, IPv4/IPv6 HTTP/HTTPs Management, SNMPv3, Cloud-based CloudNMS, on-premise NMS controller and mobile app central management, MQTT and

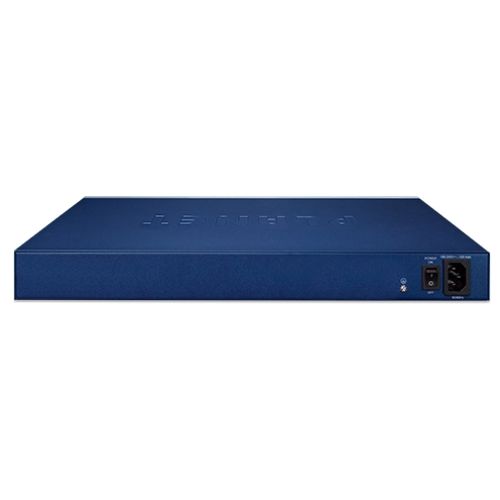

UPOE-1600XG
16-Port 10Gbps 95W 802.3bt PoE++ Managed Injector Hub (600W PoE budget, PoE Schedule, 10/100/1G/2.5G/5G/10Gbps data rate, IPv4/IPv6 HTTP/HTTPs Management, SNMPv3, Cloud-based CloudNMS, on-premise NMS controller and mobile app central management, MQTT and
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Features
Interface
- 32-port RJ45
- 16-port 10/100/1000/2.5G/5G/10GBASE-T 'Data input'
- 16-port 10/100/1000/2.5G/5G/10GBASE-T 'Data + Power output'
- One 10/100/1000BASE-T management port
802.3bt Power over Ethernet
- Complies with IEEE 802.3bt Power over Ethernet Plus Plus
- Backward compatible with IEEE 802.3at Power over Ethernet Plus
- Up to 16 ports of IEEE 802.3at/IEEE 802.3bt PoE devices powered
- 16 PoE ports with built-in 802.3bt type-4 PoE 95W injector function
- All PoE ports support 802.3at end-span/mid-span PoE 36W injector function
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
PoE Management
- PoE admin-mode control
- PoE Consumption and allocation mode option
- Per port PoE function enable/disable
- Per port PoE Inline mode option (802.3bt(Factory default)/End-span/Mid-span)
- Per port PD type option (Standard(Factory default)/Legacy/Force)
- PoE port power feeding priority
- PD classification detection
- PoE schedule
- PD alive check
Security
- SPI Firewall Protection
- Authentication Method Configuration
- MAC Filtering
- Access Management for HTTP/HTTPS/SNMP
- System CA Certificate for HTTPS
Management
- IPv4 and IPv6 dual stack management
- Web interface for remote management
- LLDP Link Layer Discovery Protocol (LLDP)
- PLANET DDNS and Easy DDNS
- Supports Network Time Protocol (NTP)
- System Maintenance
- Firmware upload via HTTP
- Configuration upload/download via HTTP
- Reboot button for system reboot
- Reset button for system reset to factory default
- PLANET Smart Discovery utility automatically finds PLANET devices on the network
- PLANET NMS system and CloudNMS for deployment management
- Remote RADIUS Server authentication
- SNMP v1, v2c and v3 for system status monitoring
- SNMP trap for alarm notification of events
- System event log/remote syslog
- Scheduled System Power Rebooting
- Network Diagnostic
- ICMPv6/ICMPv4 Remote Ping
- Trace Route
Hardware
- 19-inch rack mountable; 1U height
- Reset button for resetting to default setting and system reboot
- LED indicators for PoE ready and PoE activity
- LED indicators for power alert and fan alert
- FCC Part 15 Class A, CE
Applications
Gigabit PoE++ Network Deployment
The UPOE-1600XG provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 16 10/100/1000/2.5G/5G/10GBASE-T Gigabit Ethernet ports, the UPOE-1600XG supports full 54V DC power for any remote IEEE 802.3at/IEEE 802.3bt powered device (PD).
To control the power system of your networking devices, the UPOE-1600XG can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. The UPOE-1600XG can be directly connected to any third-party IEEE 802.3bt and 802.3at PoE compliant devices installed within 100 meters. Furthermore, the UPOE-1600XG can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.
| Interface | Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX 'Data' Input Ports: 16 x RJ45 'Data + Power' Output Ports: 16 x RJ45 |
|---|---|
| Data Rate | 10/100/1000/2.5G/5G/10GBASE-T |
| Power Requirements | 100-240V AC, 50/60 Hz, 12A |
| Power Consumption | Max. 13.8 watts / 47 BTU (Power on without any connection) Max. 677 watts / 2309BTU (Full Loading) |
| Ventilation | Smart Fan x 3 |
| Dimensions (W x D x H) | 440 x 301 x 44mm |
| Weight | 4.4kg |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: SYS PWR x 1 (Green) PoE Alarm x 1 (Red) Fan Alarm x 2 (Red) Management port x 1: LNK/ACT (Green) Per PoE Port: 802.3bt PoE-in-use x 1 (Green) 802.3at/af PoE-in-use x1 (Amber) |
| Network Cable | 10BASE-T: 4-pair UTP Cat5 up to 100m (328ft) 100BASE-TX: 4-pair UTP Cat5 up to 100m (328ft) 1G/2.5GBASE-T: 4-pair UTP Cat 5e/Cat 6/Cat 6A/Cat 7 up to 100m (328ft) 5GBASE-T: 4-pair UTP Cat 6/Cat 6A/Cat 7 up to 100m (328ft) 10GBASE-T: 4-pair UTP Cat 6A/Cat 7 up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m) |
| PoE Standard | 802.3bt PoE++ PSE Backward compatible with IEEE 802.3at PoE PSE |
|---|---|
| PoE Power Supply Mode | 802.3bt End-span Mid-span |
| PoE Power Output | Per port 54V DC 802.3bt mode: maximum 95 watts End-span mode: maximum 36 watts Mid-span mode: maximum 36 watts |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) |
| PoE PD Type | Standard Legacy Force |
| PoE Power Budget | 600 watts |
| Number of 95W 802.3bt Type-4 PDs | 6 |
| Number of 60W 802.3bt Type-3 PDs | 10 |
| Number of 802.3at PDs | 16 |
| PoE Management | Power limit by consumption and classification PoE function enable/disable Per port PoE function enable/disable Per port PoE power schedule Power feeding priority PD alive check PD classification detection Current per port usage and status Total power consumption |
| Firewall | SPI Firewall Protection |
|---|---|
| Authentication | Authentication Method Configuration |
| Filtering | MAC Filtering |
| Access Management | HTTP/HTTPS/SNMP |
| Certificates | System CA Certificate for HTTPS |
| Management Interface | HTTP/HTTPs Web user interface |
|---|---|
| Secure Management Interface | TLSv1.2, TLSv1.3 |
| Management Feature | IPv4 and IPv6 dual stack management Web interface for remote management LLDP Link Layer Discovery Protocol (LLDP) PLANET DDNS and Easy DDNS Supports Network Time Protocol (NTP) System Maintenance Firmware upload via HTTP Configuration upload/download via HTTP Reboot button for system reboot Reset button for system reset to factory default PLANET Smart Discovery utility automatically finds PLANET devices on the network PLANET NMS system and CloudNMS for deployment management Remote RADIUS Server authentication Scheduled System Power Rebooting Network Diagnostic ICMPv6/ICMPv4 Remote Ping Trace Route |
| SNMP Management | SNMP v1, v2c and v3 for system status monitoring SNMP trap for alarm notification of events |
| Event Management | Local system event log Remote syslog |
| Regulatory Compliance | FCC Part 15 Class A, CE |
|---|---|
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz Gigabit 2.5G, 5GBASE-T Ethernet IEEE 802.3an Gigabit 10GBASE-T Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus RFC 768: UDP RFC 791: IP RFC 2068 HTTP RFC 1157: SNMP v1 RFC 1902: SNMP v2c RFC 2273: SNMPv3 RFC 5424: Syslog |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
|---|---|
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
