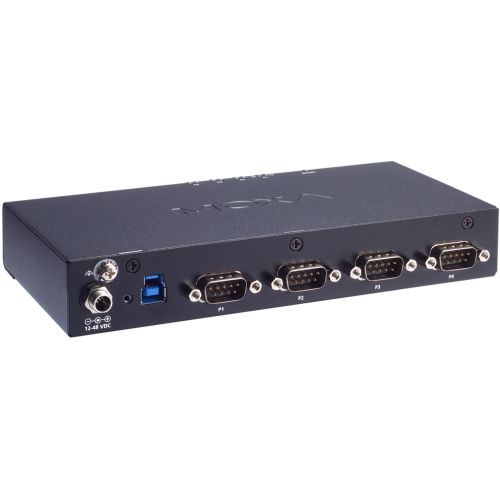

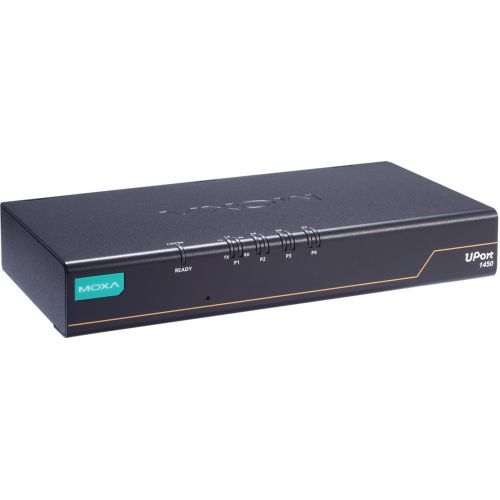

UPort 1450-G2-T
USB to 4-port RS-232/422/485 converter, -40 to 75°C operating temperature
SPEDIZIONE GRATUITA
The UPort 1400-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion.
They are essential for computers which need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector.
The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer.
The Uport 1400-G2 Series converts from USB to RS-232/422/485.
All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.
- USB 3.2 SuperSpeed capability
- 512-byte on-chip FIFO cache and flow control for enhanced performance
- Drivers provided for a broad selection of operating systems, including Windows and Linux
- 50 bps to 921.6 kbps baudrate (nonstandard baudrates supported)

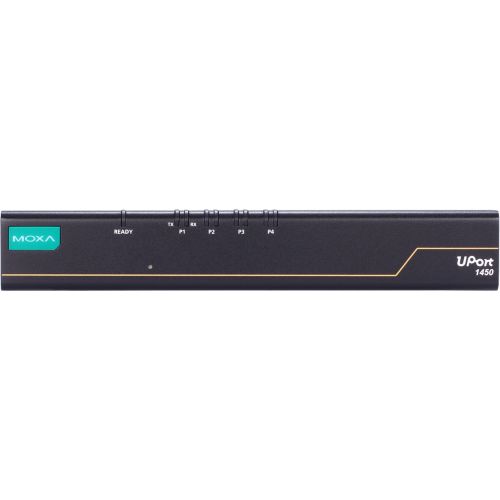

- Double-sided LEDs located at the corners show power, TX, and RX statuses in either directions
- Latching USB cable design for firmer connection
- Wide operating temperature models available for -40 to 75°C (-40 to 167°F) environments
- Serial port with 2 kV isolation protection (for “-I” models)
USB Standards | USB 3.2 Gen 1 USB 1.1/2.0 compliant |
---|---|
Speed | 5 Gbps, 480 Mbps, 12 Mbps |
No. of USB Ports | 1 |
USB Connector | USB Type B |

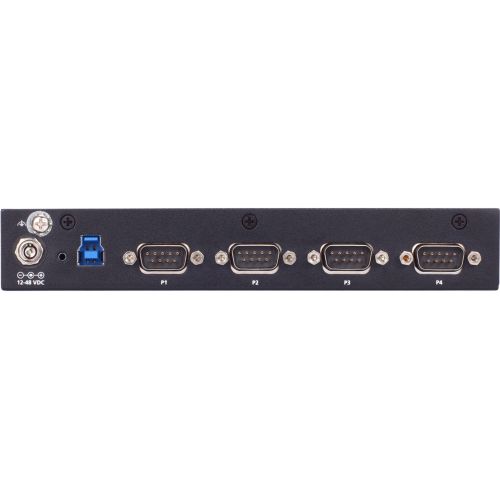

Connector | DB9 male |
---|---|
No. of Ports | 4 |
Serial Standards | RS-232/422/485 |
FIFO | 512 bytes |
Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
Parity | None, Even, Odd, Space, Mark |
Data Bits | 5, 6, 7, 8 |
Stop Bits | 1, 1.5, 2 |
Flow Control | RTS/CTS, XON/XOFF |
RS-485 Data Direction Control | Automatic Data Direction Control (ADDC) |
Pull High/Low Resistor for RS-485 | 1 kilo-ohm, 150 kilo-ohms |
Terminator for RS-485 | 120 ohms |
Surge | 0.5 kV |
Isolation | 2 kV (I models) |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
---|---|
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
Windows Drivers | Windows 11, 10, 8.1, 8 and 7 Windows Server 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2 |
---|---|
Linux Drivers | Kernel 6.x, 5.x and 4.x |
Mac Drivers | macOS version (Intel 64): 13, 12, 11 and 10.1x |
Virtual Machine | VMware Fusion (Windows on macOS 13, 12, 11, 10.1x, Intel 64) VMWare ESXi (Linux kernel 4) Parallels Desktop (Windows on macOS 13, 12, 11, 10.1x, Intel 64) |
Arm®-based Platform Support | Linux kernel 6.x, 5.x and 4.x |
Android API | Android 3.1.x and later |
Input Voltage | 5 VDC by USB bus power or 12 to 48 VDC by external power adaptor |
---|---|
Input Current | 266 mA @ USB 2.0 452 mA @ USB 3.2 240 mA @ 12 VDC |
Housing | Metal |
---|---|
Dimensions | 185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in) |
Weight | 373 g (0.82 lb) |
IP Rating | IP20 |
Operating Temperature | -40 to 75°C (-40 to 167°F) |
---|---|
Storage Temperature | -40 to 75°C (-40 to 167°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
EMC | EN 55032/35 |
---|---|
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz IEC 61000-4-8 PFMF |
Safety | IEC 62368-1 EN 62368-1 UL 62368-1 (CB) KC |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-6 IEC 60068-2-64 |
Freefall | IEC 60068-2-31 |
Green Product | RoHS, CRoHS, WEEE |
---|
Standards | Telcordia Standard SR332, Telcordia Issue 2 |
---|---|
Time | 1,431,860 hrs |
