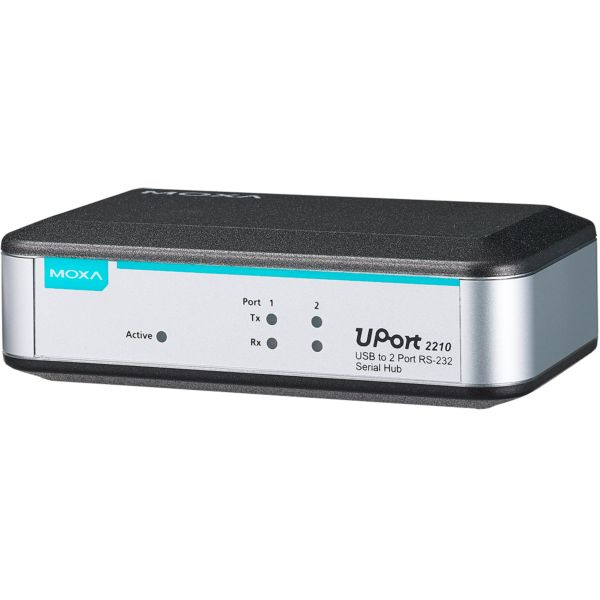

UPort 2210 MOXA rs 232 over usb

Features and Benefits

• Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
• 921.6 kbps maximum baudrate for super fast data transmission
• Built-in 15 kV ESD protection for all serial ports
• Drivers provided for Windows and Linux
• Supports Fixed-Base COM Utility for setting the initial extended COM port number
• LEDs for easy monitoring

Introduction

The UPort® 2210/2410 USB-to-serial converters allow you to connect 2 or 4 RS-232 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort® 2210 and UPort® 2410 are cost-effective solutions for both new and legacy RS-232 devices, and are perfect for mobile, instrumentation, and point-of sale applications.

USB Interface

Compliance: USB 1.1/2.0 compliant
Connector: USB type B
Speed: 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB)

Serial Interface

Number of Ports: 2
Serial Standards: RS-232

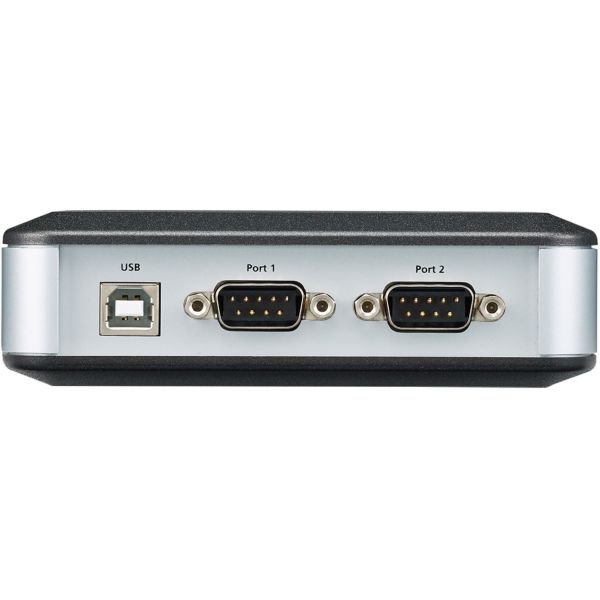

Connector: DB9 male

Serial Line Protection

ESD Protection: 15 kV embedded

Performance

Baudrate: 50 bps to 921.6 kbps

Serial Communication Parameters

Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Mark, Space
Flow Control: RTS/CTS, XON/XOFF
FIFO: 16 bytes

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Operating Systems

Windows Real COM Drivers: Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0

Android Driver

Mac Driver: Mac OS X, Mac
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Physical Characteristics

Housing: Polycarbonate (PC)
Weight: Product only:120 g (0.26 lb)
Packaged: 325 g (0.72 lb)
Dimensions: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)

Environmental Limits

Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Standards and Certifications

Safety: UL 60950-1
EMC: CE, FCC
EMI: EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class B
EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11
Green Product: RoHS, CRoHS, WEEE

Power Requirements

Power Consumption: 140 mA @ 5 VDC

MTBF (mean time between failures)

Time: 4,221,778 hrs
Database: Telcordia (Bellcore), GB

Warranty

Warranty Period: 5 years
