V2403-C7-W-T MOXA Box Computers

V2403-C7-W-T MOXA

V2403-C7-W-T

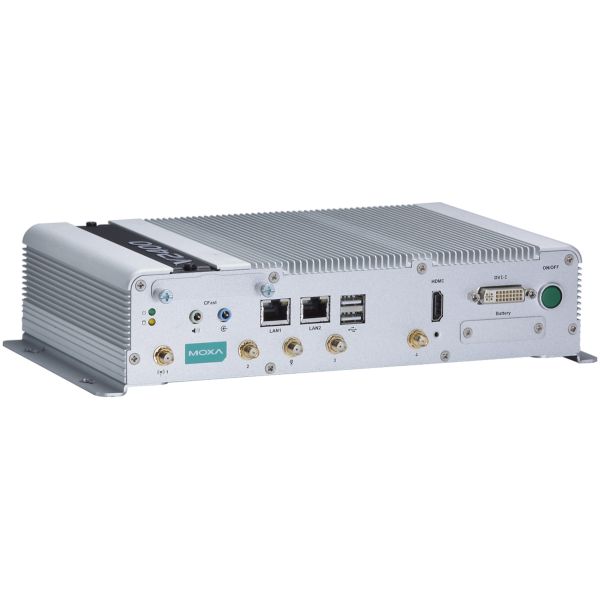

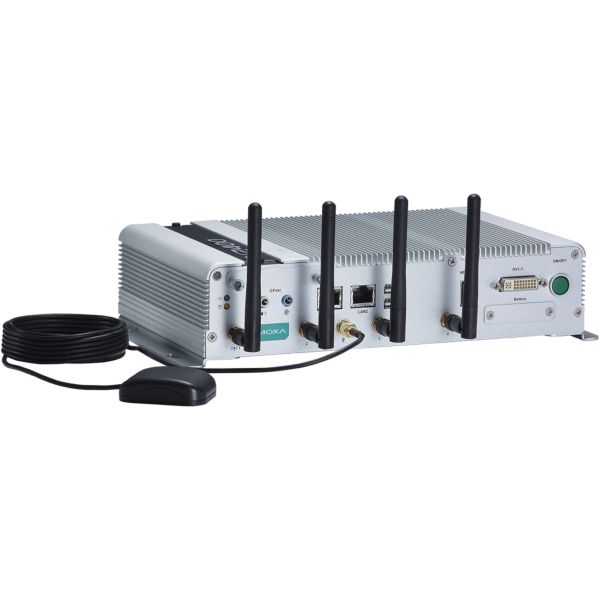

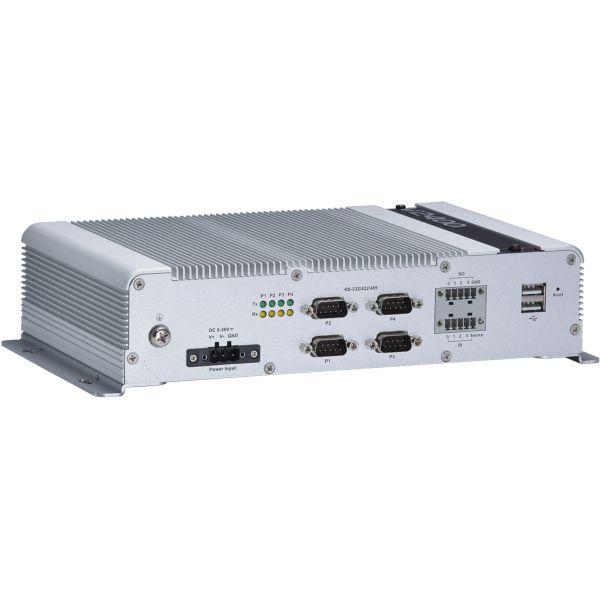

(CTO Models) x86 ready-to-run embedded computer with Intel Core i7 3517UE, 1 HDMI, 1 DVI-I, 2 LANs, 4 serial ports, 4 DIs, 4 DOs, 4 USB 2.0 ports, 1 uSIM socket, 1 Wi-Fi mini-PCIe socket, 1 3G/LTE mini-PCIe socket, 1 mSATA mini-PCIe socket, -40 to 70°C

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 3.680,04
3+ pz.€ 3.606,44
5+ pz.€ 3.532,84

Prezzo di 1 pz. iva (22%) inclusa: € 4.489,65

Disponibilità: 15 gg lav

  >> I tempi protrebbero essere piĆ¹ lunghi da quelli indicati <<

Brand: MOXA

SKU: 106016

Model: V2403-C7-W-T

Features and Benefits

  •  Intel® Core™ i Series processor with three performance options
  •  -40 to 70°C (system and LTE) operating temperature
  •  Dual CFast sockets for storing OS and OS backup
  •  Triple mini-PCIe sockets for storage and wireless modules that support mSATA, Wi-Fi, 3G, LTE, GPS, and Bluetooth
  •  Variety of interfaces: 4 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, USB, HDMI, wireless
  •  EN 61000-6-2 and EN 61000-6-4 certification and meets the EMC standard for heavy industry
  •  Up to 5 Grms anti-vibration and 100 g/11 ms anti-shock protection
  •  Ready-to-run Debian 8, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  •  Moxa Proactive Monitoring utility for system hardware health monitoring
  •  Moxa Smart Recovery utility to recover system from boot failure (W7E only)

Introduction

The V2403 Series fanless x86 embedded computer is based on the Intel® 3rd gen Core-i™ Series processor, features the most reliable I/O design to maximize connectivity, and supports dual wireless modules, making it suitable for a diverse range of communication applications. The computer’s thermal design ensures reliable system operation in temperatures ranging from -40 to 70°C (with a special purpose Moxa wireless module installed). The V2403 Series supports “Moxa Proactive Monitoring” for device I/O status monitoring and alerts, system temperature monitoring and alerts, and system power management. Monitoring system status closely makes it easier to recover from errors and provides the most reliable platform for your applications.

Specifications

Computer

CPU: Intel® Core™ i7-3517UE Processor (4 M cache, up to 2.80 GHz)
System Chipset: Mobile Intel® HM65 Express Chipset
Graphics Controller: Intel® HD Graphics
System Memory Pre-installed: Default 4 GB DDR3
System Memory Slot: SODIMM DDR3/DDR3L slot x 1

Supported OS:
Linux Debian 8 (Linux kernel v4.1)
Windows Embedded Standard 7 (WS7E) 32-bit
Windows Embedded Standard 7 (WS7E) 64-bit

Storage Slot:
2.5-inch HDD/SSD slots x 1
CFast slot x 2
mSATA slots x 1


Computer Interface

Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports: RS-232/422/485 ports x 4, software selectable (DB9 male)
USB 2.0: USB 2.0 hosts x 4, type-A connectors
Audio Input/Output: Line in x 1, Line out x 1, 3.5 mm phone jack
Digital Input: DIs x 4
Digital Output: DOs x 4
Expansion Slots: mPCIe slot x 2
Video Output:
DVI-I x 1, 29-pin DVI-I connectors (female)
HDMI x 1, HDMI connector (type A)

Wi-Fi Antenna Connector: RP-SMA x 2
Cellular Antenna Connector: SMA x 2
Number of SIMs: 2
SIM Format: Mini
GPS Antenna Connector: SMA x 1

Digital Inputs

Isolation: 3k VDC
Connector: Screw-fastened Euroblock terminal

Dry Contact:
On: short to GND
Off: open

I/O Mode: DI

Sensor Type:
Dry contact
Wet contact (NPN or PNP)

Wet Contact (DI to COM):
On: 10 to 30 VDC
Off: 0 to 3 VDC

Digital Outputs

Connector: Screw-fastened Euroblock terminal
Current Rating: 200 mA per channel
I/O Type: Sink
Voltage: 24 to 40 VDC

LED Indicators

System:
Power x 1
Storage x 1

LAN: 2 per port (10/100/1000 Mbps)
Serial: 2 per port (Tx, Rx)

Serial Interface

Baudrate: 50 bps to 921.6 kbps
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Parity: None, Even, Odd, Space, Mark
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Power Parameters

Input Voltage: 9 to 36 VDC
Power Connector: Terminal block (for DC models)
Power Consumption (Max.):
3.51 A @ 9 VDC
1.39 A @ 24 VDC
0.93 A @ 36 VDC

Power Consumption: 34 W (max.)

Physical Characteristics

Housing: Aluminum
IP Rating: IP30
Dimensions (with ears): 275 x 63 x 154 mm (10.83 x 2.47 x 6.06 in)
Dimensions (without ears): 250 x 57 x 154 mm (9.84 x 2.23 x 6.06 in)
Weight: 2,168 g (4.82 lb)
Installation: DIN-rail mounting (optional), Wall mounting (standard)

Environmental Limits

Operating Temperature -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMC: EN 55032/24, EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 1 V
IEC 61000-4-8 PFMF

Safety: EN 60950-1, UL 508, UL 60950-1
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-64

Declaration

Green Product: RoHS, CRoHS, WEEE

MTBF

Time: 329,398 hrs
Standards: Telcordia (Bellcore), GB

Warranty

Warranty Period: 3 years
