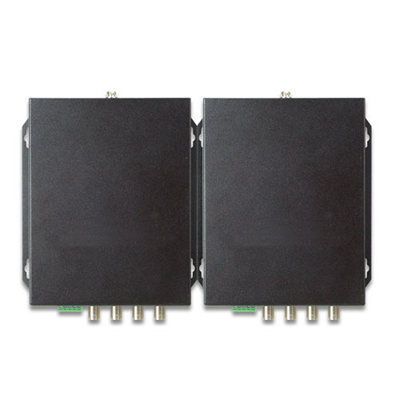

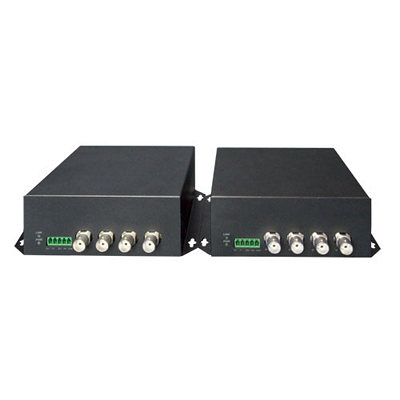

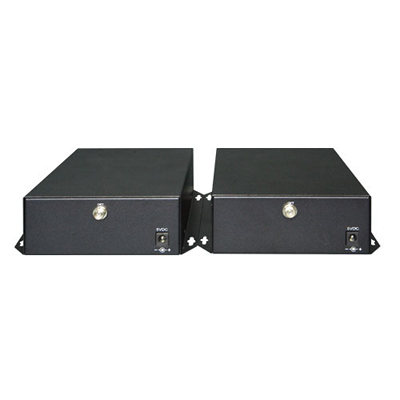

VF-402-KIT
4-Channel Video over Fiber Bundled Kit (VF-402-T + VF-402-R)
Bisogno di aiuto?
Reliable Long Distance Solution for Analog Surveillance System
To deploy AHD/CVI/TVI/CVBS analog camera in a remote place efficiently and provide high video quality and reliable signal, PLANET has developed the video over fiber media converter kit, VF-402-KIT, which is ideal for extending the distance and signal conversion by transmitting the AHD/CVI/TVI/CVBS video and data over the fiber-optic cable. Adopting the intelligent encoding/decoding technology and with the compact box, the VF-402-KIT video over fiber media converter enables the videos to be delivered in high quality up to 20km long in distance.
Features and Benefits
- Compliant with hybrid video (AHD/TVI/CVI/CVBS)
- 20km long-distance data transmission
- Fiber optic transmission of four video signals on one fiber with RS485 data signals which may be one way with the video or optional duplex
- Status indication for power supply, optical signal and video
- High-speed synchronous digital transmission technology
- Effective against electromagnetic interference, radio frequency interference, 6KV high-level lightning protection design
- Guarantees safe transmission under poor electromagnetic environment
- Maximum tolerable link loss for single mode single fiber is 0.35dB/km
- Video bandwidth of 60MHz, SNR>67dB
- Wide temperature range from -20 to 70 degrees C
Specifications
Video Characteristics
Video Channel: 4-channel bi-direction
Video Connector: BNC
Supported Video Type: 1080p: AHD/TVI/CVI
480p: CVBS
Video Input/Output Impedance: 75ohm/unbalanced interface
Video Input/Output Voltage: 1.0 Vpp / typical peak-to-peak value
Video Bandwidth: 25 to 60MHz
Video Digital Bit Width: 8/10 bit
Differential Gain (DG): < 2% (typical value)
Differential Phase (DP): < 2° (typical value)
SNR-weighted Scheme: > 67dB (typical value)
Data Interface
Data Channel: 4 channels
Physical Protocol: RS485
Operation Mode: Simplex
Data Connector: 4 Pin terminal block with screw clamps
Data Rate: DC-150Kbps
Data Distance: RS485: 0-20km
BPS: 0-115.2Kbps
Bit Error Rate (BER): < 10-9
Optical Interface
Optical Connector: FC
Fiber Type: Single-mode, single fiber
Distance: 20km for single mode
Optical Wavelength: VF-402-T
TX: 1310nm
RX: 1550nm
VF-402-R
TX: 1550nm
RX: 1310nm
Transmitter Coupled Power: Max.: 0dBm
Min.: -8dBm
Receive Sensitivity: -22dBm
Link Budget: From 15dB to 20dB at 1310nm or 1550nm
Cable: 9/125μm single-mode cable
Hardware Specifications:
LED Indicators: Power
Each channel
Link (fiber optic)
Dimensions (W x D x H): 157 × 116.5 × 48 mm
Weight: 580g
Power Requirement: 5V DC, 2A
Chassis Current Consumption: 1.10 amp for 4-channel video and 1-channel data
Mechanical: Metal
Standards Conformance
Regulatory Compliance: FCC, CE
Environment
Operating: Temperature: -20 ~ 70 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
Storage: Temperature: -40 ~ 85 degrees C
Relative Humidity: 0 ~ 95% (non-condensing)
