VPort 06-2L80M-CT
EN50155,FHD,H.264/MJPEG IP camera,M12 connector,1 audio input, 12/24VDC, 8.0mm Lens,-25 to55°C, coating
Features and Benefits
› Complies with all EN 50155 mandatory test items* (T1
temperatures: -25 to 55°C; TX temperatures: -40 to 70°C)
› 1/3” progressive scan camera with maximum 1920 x 1080
resolution at up to 30 frames/second
› High quality video image with DNR and WDR
› Up to 4 simultaneous H.264 or MJPEG independent video streams
› DynaStream™ support for optimized network efficiency
› CBR Pro™ support for high image quality in limited bandwidth
transmissions
› Supports SDXC (up to 1 TB SD card)for local storage
› 1 built-in audio input or microphone
› ONVIF comformity for standardization and interoperability
*This product is suitable for rolling stock railway applications, as defined by the
EN 50155 standard
Introduction

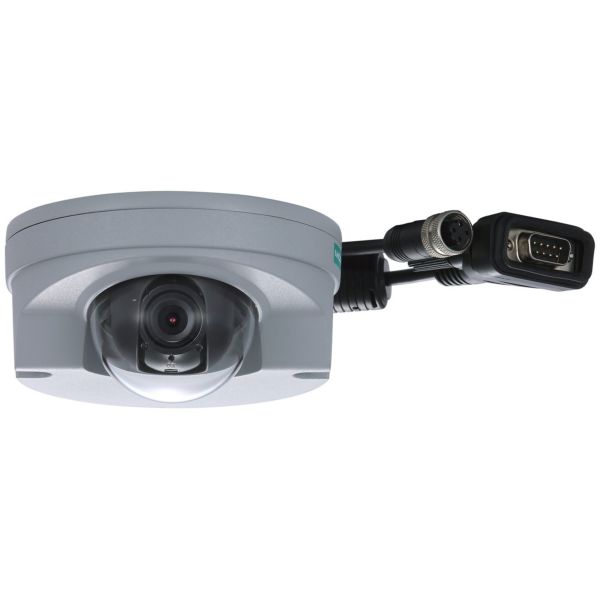

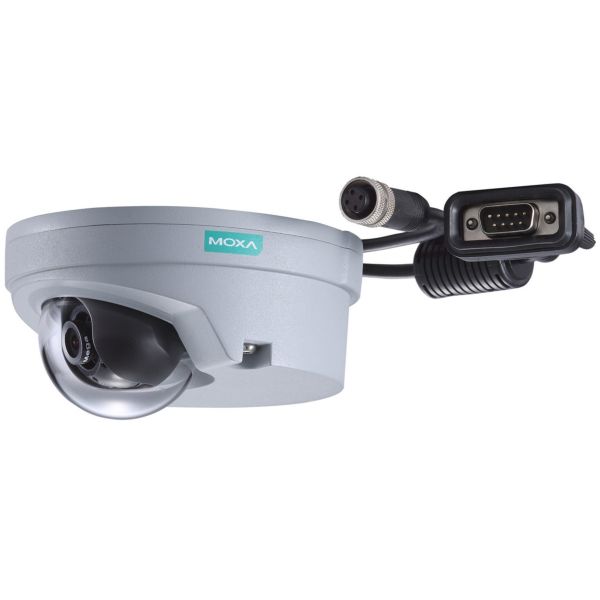

The VPort 06-2 cameras are compact, 1080P (1920x1080), H.264/
MJPEG dome IP cameras designed for mobile video surveillance
applications. The cameras are compliant with EN 62262 IK8,
mandatory sections of EN 50155, and support a -25 to 55°C or -40
to 70°C operating temperature range. With a rugged M12 Ethernet
port, SDXC slot for SD cards 64 GB and larger, ONVIF Profile S
standardization, built-in audio line port or microphone, PoE or 24
VDC power inputs, IP66 rain and dust protection, and the option of
changing the lens, the VPort 06-2 cameras will perform reliably in a
variety of extreme environmental conditions, making them suitable for
a wide variety of mobile video surveillance applications.
Camera
Sensor: 1/3” HD progressive scan CMOS
Lens: 2.5 mm, 3.6 mm, 4.2 mm, 6 mm, 8 mm fixed focal lengths
Angle of View:
• 2.5 mm, F1.6: Diagonal 120°, Horizontal 101°, Vertical 57°
• 3.6 mm, F1.6: Diagonal 99°, Horizontal 70°, Vertical 39°
• 4.2 mm, F1.6: Diagonal 82°, Horizontal 62°, Vertical 34°
• 6.0 mm, F1.8: Diagonal 62°, Horizontal 43°, Vertical 24°
• 8.0 mm, F1.6: Diagonal 42°, Horizontal 33°, Vertical 17°
Camera Angle:
• Pan: ±15°
• Tilt: 0 to 90° (3.6, 4.2, 6 mm lenses), 30 to 60° (2.5 mm lens)
Minimum Illumination: 0.2 Lux @ F=1.2
Synchronization: Internal
White Balance: ATW/AWB
Electronic Shutter: Auto, Fixed (1/30 to 1/25000 sec)
DNR: Built-in DNR
WDR: On/Off, up to 100 dB
AGC (auto gain control): 2X, 4X, 8X, 16X
Flickerless Control: Automatic, 50 Hz, 60 Hz modes
Auto Exposure: Level ±5
Image Rotation: Flip, Mirror, 90°, 180°, and 270° rotation
Image Setting: Manual tuning with saturation, sharpness, and contrast
Video
Video Compression: H.264 (ISO/IEC 14496-10) or MJPEG
Video Output: via Ethernet
Video Streams: Up to 4 independent video streams
Video Viewing:
• DynaStream™ support for automatic frame rate adjustment
• CBR Pro™ for good image quality in limited bandwidth transmissions
• 3 privacy mask areas provided
• Adjustable image size and quality
• Timestamp and text overlay
• OSD (On Screen Display) position adjustable
• Maximum of 5 simultaneous unicast connections
Video Resolution and fps (frames per second):
QCIF:
NTSC:
Size: 176x112
Max. FPS: 30
PAL:
Size: 176x144
Max. FPS: 25
QVGA:
NTSC:
Size: 320x240
Max. FPS: 30
PAL:
Size: 320x240
Max. FPS: 25
CIF:
NTSC:
Size: 352x240
Max. FPS: 30
PAL:
Size: 352x288
Max. FPS: 25
VGA:
NTSC:
Size: 640x480
Max. FPS: 30
PAL:
Size: 640x480
Max. FPS: 25
4CIF:
NTSC:
Size: 704x480
Max. FPS: 30
PAL:
Size: 704x576
Max. FPS: 25
FULL D1:
NTSC:
Size: 720x480
Max. FPS: 30
PAL:
Size: 720x576
Max. FPS: 25
SVGA:
NTSC:
Size: 800x600
Max. FPS: 30
PAL:
Size: 800x600
Max. FPS: 25
HD:
NTSC:
Size: 1280x720
Max. FPS: 30
PAL:
Size: 1280x720
Max. FPS: 25
WXGA:
NTSC:
Size: 1280x800
Max. FPS: 30
PAL:
Size: 1280x800
Max. FPS: 25
FHD:
NTSC:
Size: 1920x1080
Max. FPS: 30
PAL:
Size: 1920x1080
Max. FPS: 30
Audio
Audio Inputs: 1 line-in, or 1 built in to the microphone input
Audio Format: G.711, AAC
Network
Protocols: TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP, UPnP, RTP,
RTSP, ICMP, QoS, IGMPv3, SNMPv1/v2c/v3, DDNS, TFTP, ARP,
DHCP, OPT66/67, IPv6, SIP
Ethernet: 1 10/100BaseT(X) Ethernet port, 4-pin M12 D-coded female
connector
Local Storage
SD Socket: Micro SD socket
Interface: SDXC
GPIO
Digital Inputs: 1, max. 8 mA; Low: +13 V to 30 V; High: -30 V to +3 V
Power Requirements
Input Voltage: VPort P06-2 (PoE model): PoE (IEEE 802.3af)
VPort 06-2 (DC model): 12 to 24 VDC with DB9 connector
Input Current: 0.38 to 0.86 A
Power Consumption:
VPort P06-2: 8.1 W (max.)
VPort 06-2: 9 W (max.)
Physical Characteristics
Housing: IP66 rain and dust protection, EN 62262 IK8 vandal proof
metal housing
Dimensions: 110 x 115.5 x 61.8 mm (4.33 x 4.54 x 2.43 in)
Weight: 620 g (1.37 lb)
Installation: Surface or ceiling mounting
Note: Optional external housing and mounting accessories may be required.
Alarms
Intelligent Video: Camera tampering
Video Motion Detection: 3 independently configurable motion areas
Shock: G sensor for shock detection
Scheduling: Daily repeat timing schedule
Imaging: JPEG snapshots for pre/trigger/post alarm images
Custom Alarms: HTTP event servers for setting customized alarm
actions
Email/FTP Messaging: Automatic transfer of stored images via email
or FTP as event-triggered actions
Pre-alarm Buffer: 50 MB video buffer for JPEG snapshot images
Security
Password: User level password protection
Filtering: By IP address
Encryption: HTTPS, SSH
Environmental Limits
Operating Temperature:
Standard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Standards and Certifications
Safety: UL 60950-1
Rail Traffic: EN 50155*, GB/T 24338.4-2009
EMC: EN 55032/24
EMI: FCC Part 15, CISPR 32 Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Shock: IEC 61373
Freefall: IEC 60068-2-32
Vibration: IEC 61373
Vandal Resistance: EN 62262, IK8 level
MTBF (mean time between failures)
Time:
VPort 06-2L Series: 1,063,089 hrs
VPort 06-2M Series: 1,039,008 hrs
VPort P06-2L Series: 1,075,216 hrs
VPort P06-2M Series: 1,050,590 hrs
Standard: Telcordia TR/SR
Warranty
Warranty Period: 5 years
Minimum Viewing System Requirements
CPU: Intel Core i3 or above
Memory: 2 GB of memory
OS: Windows 7
Browser: Internet Explorer 10 or or above
Multimedia: DirectX 11.0 or above
Software Development
VPort SDK PLUS: Includes CGI commands, ActiveX Control, and API
library for customized applications or system integration for third-party
developers (the latest SDK version is available for download from
Moxa’s website).
Standard: ONVIF Profile S
