W02FCM48

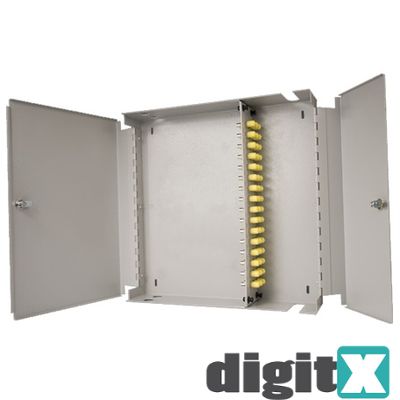

Scatola a muro con serratura W02 - FC Multimode - 48 adattatori
Bisogno di aiuto?
Features
- Available in single and double door models
- Double door models include two separate locks for security
- Internal bend radius protection included
- Cable entry and exit points can be knocked out to suit installation
Introduction
The wall box system in its basic form is supplied with the box unloaded ready for you to install the adaptor of your choice. The box can also be pre-loaded complete with the required adaptor or pre-loaded with pigtails to meet your project needs. The quality of construction that comes with our range of wall boxes ensures a safe, secure and aesthetically pleasing wall box for your network.
Specifications
Height: 360mm
Width: 360mm
Depth: 85mm
Net Weight: 3.2kg
Packaged Weight: 3.5kg
Package Dimensions: 375mm (W) X 375mm (L) X 90mm (D)
IP Rating: IP20
Suitable for adaptor type: ST/FC
Number of doors: 2
Cable entry 20mm: 4
Material: Cold Rolled Steel
Material thickness: 1.2mm
Material coating: Electro Static Powder Coating
Colour: Grey RAL 7035
Operating Temperature: -40°C to + 60°C
Compliant to: RoHS, Reach, SVHC
Designed in accordance with: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
