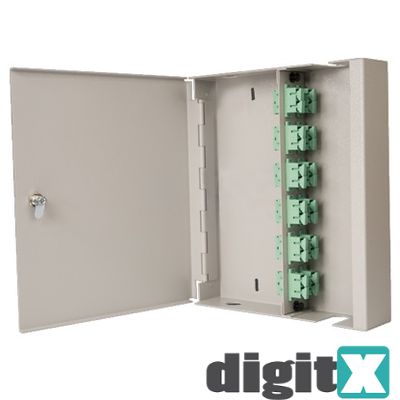

W03SCM4
Scatola a muro con serratura W03 - SC Multimode - 4 adattatori
Bisogno di aiuto?
Features
- Available in single and double door models
- Double door models include two separate locks for security
- Internal bend radius protection included
- Cable entry and exit points can be knocked out to suit installation
Introduction
The wall box system in its basic form is supplied with the box unloaded ready for you to install the adaptor of your choice. The box can also be pre-loaded complete with the required adaptor or pre-loaded with pigtails to meet your project needs. The quality of construction that comes with our range of wall boxes ensures a safe, secure and aesthetically pleasing wallbox for your network.
Specifications
Height: 225mm
Width: 270mm
Depth: 60mm
Net Weight: 1.8kg
Packaged Weight: 2kg
Package Dimensions: 235mm (W) X 280mm (L) X 60mm (D)
IP Rating: IP20
Suitable for adaptor type: SC Duplex
Number of doors: 1
Cable entry 20mm: 2
Material: Cold Rolled Steel
Material thickness: 1.2mm
Material coating: Electro Static Powder Coating
Colour: Grey RAL 7035
Operating Temperature: -40°C to + 60°C
Compliant to: RoHS, Reach, SVHC
Designed in accordance with: TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1
