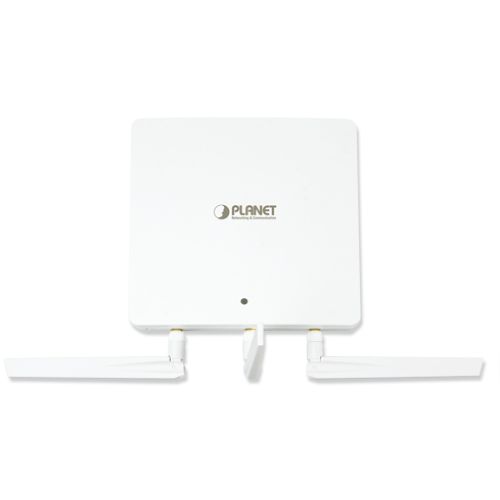

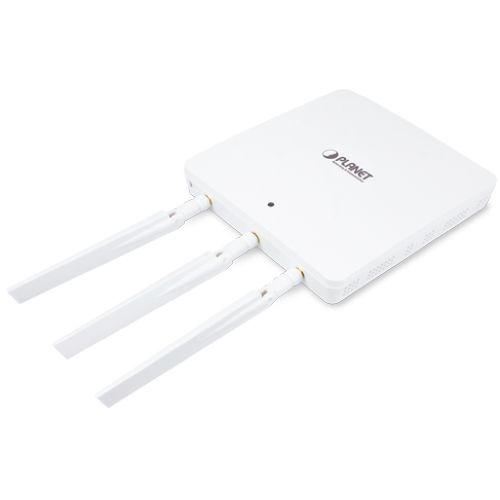

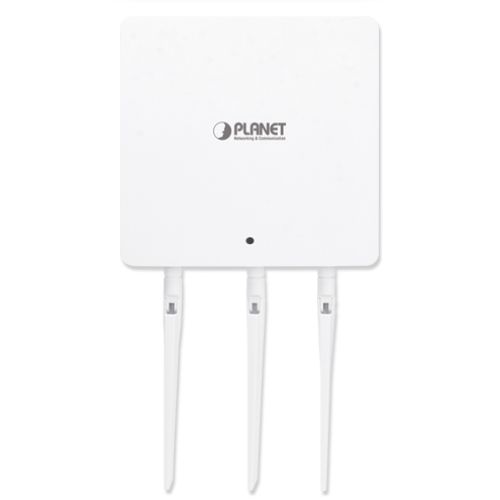

WDAP-1750AC-ETS Planet Access Point

 Ultra-high-speed, Next-generation Enterprise Wireless

PLANET WDAP-1750AC is an enterprise PoE access point with the latest 802.11ac wireless technology, advanced management features and superior encryption standard yet cost-effective. Meeting enterprise demand, the WDAP-1750AC has enhanced security and management features including multiple SSIDs, IEEE 802.1Q VLAN, WPA / WPA2-enterprise security, RADIUS MAC authentication and so forth. With the multiple reversed-polarity SMA male antenna connectors, the WDAP-1750AC is able to connect its suitable external antenna and booster in such wireless environments as warehouses, campuses and enterprises.

Features and Benefits

Standard Compliant Hardware Interface

Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards
2 x 10/100/1000BASE-T port with PoE supporting 802.3at and 802.3af PSE (Power Sourcing Equipment)
IEEE standard 802.3af/at PoE design

RF Interface Characteristics

Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic
3T3R MIMO technology for enhanced throughput and coverage
Provides multiple adjustable transmit power control
High speed up to 1.75Gbps (450Mbps for 2.4GHz + 1300Mbps for 5GHz) wireless data rate

Hardware Specifications

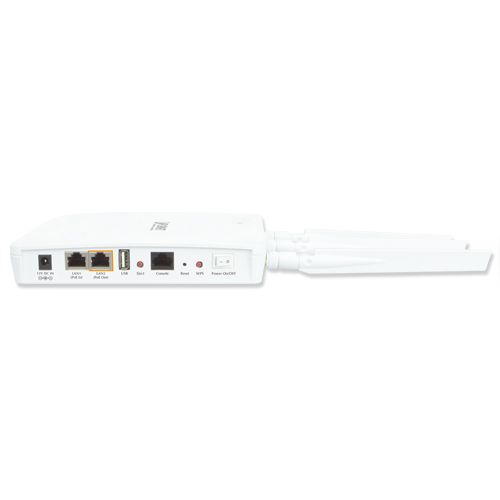

Interfaces LAN:  2 x 10/100/1000BASE-T RJ45 port
Auto-negotiation:  and auto MDI/MDI-X
Antennas Gain:  3 x 2dBi SMA antenna
Reset Button:  Press over 5 seconds to reset the device to factory default
LED Indicators:  PWR
Allow LED to turn off via software control
Material:  Plastic
Dimensions (W x D x H):  182 x 182 x 30 mm
Weight:  470g
Power Requirements:  DC Input: 12V DC, 4A
PoE Input: IEEE 802.3at PoE+, 48~56V DC in-line power
Power Consumption:  20W (without PSE)
ESD Protection:  ±8kV air-gap discharge, ±4kV contact discharge
Mounting:  Wall mount / Desktop
