WGS-5225-8UP2SV
IP30, IPv6/IPv4, L2+ 8 port 10/100/1000T 802.3bt PoE + 2 port 1G/2.5G SFP Wall-mount Managed Switch with LCD touch screen (-20~70 degrees C, Max. 720W PoE budget, dual power input on 48-54VDC terminal block, 200m Extend mode, ERPS Ring, 1588, Modbus TCP,
Wall-mounted PoE++ Managed Switch with Advanced L2+/L4 Switching and Security
PLANET WGS-5225-8UP2SV is an Industrial Wall-mount PoE++ Managed Switch with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports featuring 95-watt PoE and two additional 100/1000/2500BASE-X SFP ports. With a total power budget of up to 720 watts for different kinds of PoE applications, and featuring networking speed and operating temperature ranging from -20 to 70 degrees C in a compact but rugged IP30 metal housing
Applications
Security Building Automation Switch
Suitable for buildings where security is strictly to be enforced, the WGS-5225-8UP2SV offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL). The switch can restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the WGS-5225-8UP2SV, a tightly-controlled network can be easily had in no time.
Different Networks Managed by One Control Center
Providing up to 8 PoE++, in-line power interfaces, the WGS-5225-8UP2SV can centrally manage power supplying to an industrial network system where IP phones, IP cameras, wireless APs and more are built. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the WGS-5225-8UP2SV makes the installation of IP cameras and wireless APs easier and more efficient.
Features and Benefits
Physical Port

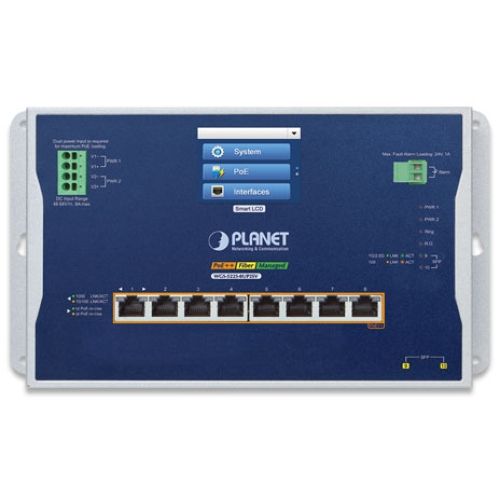

- 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3bt PoE++ Injector function

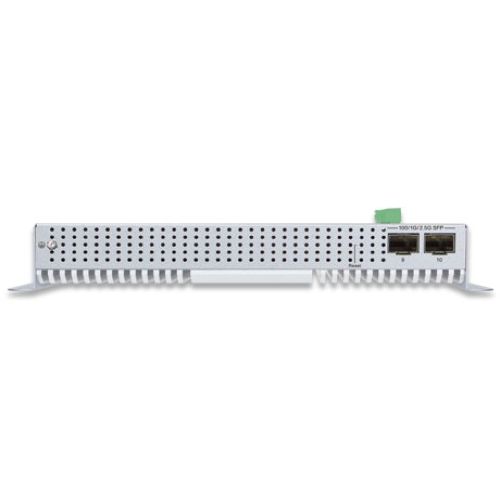

- 2 100/1000/2500BASE-X SFP slots for SFP type auto detection
Industrial Case and Installation
- IP30 aluminum case
- Supports -20 to 70 degrees C operating temperature
- Supports ESD 6KV DC Ethernet protection
- Dual power input design
- 48V~54V DC wide power input with reverse polarity protection

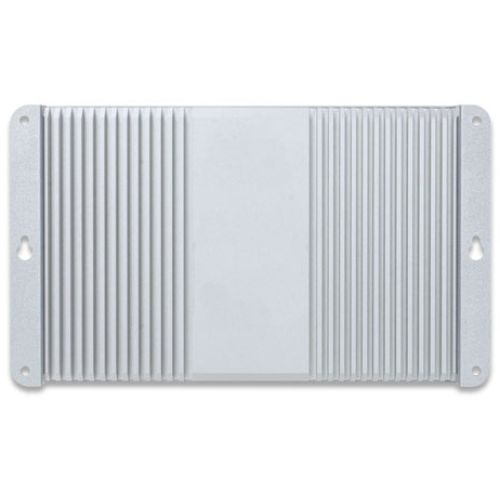

- Compact size with fixed wall-mounted design
Hardware Specifications
Copper Ports: 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Slots:
2 100/1000/2500BASE-X SFP interfaces
Compatible with 100BASE-FX, 1000BASE-SX/LX/BX and 2500BASE-X SFP transceivers
PoE Injector Port: 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
RAM: 128MBytes
Flash Memory: 64MBytes
Reset Button:
< 5 sec: System reboot
> 5 sec: Factory Default
Connector:
4-pin terminal block for power input
- Pin 1/2 for Power 1 (Pin 1: V+ / Pin 2: V-)
- Pin 3/4 for Power 2 (Pin 3: V+ / Pin 4: V-)
2-pin terminal block for event alarm
Alarm: One relay output for power failure. Alarm Relay current carry ability: 1A @ 24V DC
Enclosure: IP30 aluminum case
Installation: Wall-mount
Dimensions (W x D x H): 245 x 36 x 140 mm
Weight: 1,299g
Power Requirements:
48~54V DC (>52V DC for PoE++ and PoE+ output recommended)
Dual power input is required for maximum power loading
Power Consumption:
Max. 14.72 watts/50.23 7BTU@50V DC input (Power on without any connection)
Max. 375 watts/1280BTU@Single 54V DC input (Full loading with 360 watts PoE function)
Max. 752 watts/2566BTU@Dual 54V DC input (Full loading with 720 watts PoE function)
ESD Protection: 6KV DC
LED Indicator:
System:
- PWR 1(Green)
- PWR 2 (Green)
- Ring (Green)
- Ring Owner (Green)
Per 10/100/1000T RJ45 PoE++ Ports:
- 802.3bt PoE-in-Use (Green)
- 802.3af/at PoE-in-Use (Amber)
- 1000 LNK/ACT (Green)
- 10/100 LNK/ACT (Amber)
Per SFP Interface:
- 100 LNK/ACT (Amber)
- 1000/2500 LNK/ACT (Green)
