WGS-814HP Planet wall mount ethernet switches

WGS-814HP Planet

WGS-814HP

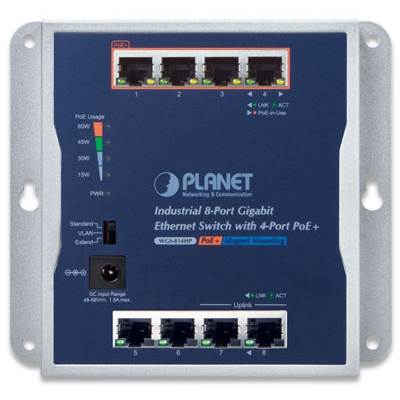

Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch with 4-Port PoE+

Clicca per maggiori dettagli

Q.tà':

Articoli Prezzo (IVA esc.)
1+ pz.€ 165,66

Prezzo di 1 pz. iva (22%) inclusa: € 202,11

Disponibilità: 10 gg lav

  >> I tempi protrebbero essere piรน lunghi da quelli indicati <<

Brand: PLANET

SKU: 116080

Model: WGS-814HP

Line: 1G

Prodotti Correlati

Planet

Z-wave Home Automation Control Gateway ...

1+ pezzi:  € 222,59

Planet

Z-wave Home Automation Control Gateway ...

1+ pezzi:  € 222,59

Planet

H.265 4MP PoE Dome IR IP Camera with ...

1+ pezzi:  € 97,63

 Easily-deployed and Expanded PoE Network

Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-814HP is innovative, wall-mounted industrial 8-port Gigabit Ethernet Switches with 4-port 802.3at Power over Ethernet Plus injector. They come in a compact but rugged IP30 metal housing. Featuring a total PoE budget of 60 watts, ultra networking speed and operating temperature ranging from -20 to 60 degrees C, the WGS-814HP is ideal solutions to meet the demand for sufficient PoE power for the following network applications.

  • Building / Home automation network
  • Internet of things (IoT)
  • IP surveillance and wireless

The WGS-814HP is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of PoE PDs with power feeding.

Applications

IP Office Department/Workgroup PoE Switch

To further expand the office premises, the additional telephones required could be installed at less cost via the PoE IP telephony system, better than the traditional circuit wiring telephony system. The WGS-814HP PoE+ Switch helps enterprises to create an integrated data, voice, and powered network. The IEEE 802.3af/at compliant IP phones can be installed without the need of an additional power cable because the power can be provided via the standard Ethernet cable from the connected PoE+ Switch. With the WGS-814HP, IP telephony deployment becomes more reliable and cost effective, thus helping enterprises save tremendous cost when upgrading from the traditional telephony system to IP telephony communications infrastructure.

Features and Benefits

Physical Port

  • 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 4-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

Power over Ethernet

  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
  • Up to 4 ports of IEEE 802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 250 meters (in extend mode)

Layer 2 Features

  • High performance Store and Forward architecture
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 9K jumbo frame supports in 1000Mbps duplex mode
  • Automatic address learning and address aging

Industrial Case and Installation

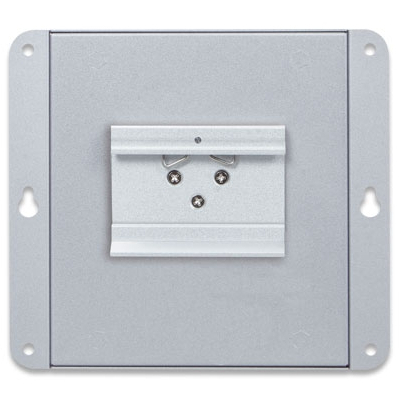

  • Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting
  • IP30 metal chassis
  • Supports -20 to 60 degrees C operating temperature
  • LED indicators for real-time PoE usage
  • 48V~56V DC input range

Specifications

Hardware Specifications

Network Connector: 8-Port RJ45 for 10/100/1000BASE-T
PoE Inject Port: 4-Port with802.3at PoE+ injector function (Port-1 to Port-4)
Switch Architecture: Store and forward
MAC Address Table: 4K MAC address table with auto learning function
Switch Fabric: 16Gbps / non-blocking
Switch Throughput: 11.9Mpps@64Bytes
Jumbo Frame: 9Kbytes
Flow Control: IEEE 802.3x pause frame for full duplex
Back pressure for half duplex
LED Indicators: Power LED:
 Power (Green)
PoE Power Usage LED:
 15W, 30W, 45W, 60W (Amber)
PoE Port:
 PoE-in-Use (Amber)
 LNK/ACT (Green)
10/100/1000BASE-T Port:
 LNK/ACT (Green)
ESD Protection: 4KV DC
DIP Switch: Selectable operation modes:
■ Standard: IEEE 802.3at PoE+ transmission distance of 100m
■ VLAN: Port-based VLAN
■ Extend: 25-watt PoE transmission distance of 250m at speed of 10Mbps
Connector: DC power jack with 2.0mm central pole
Power Requirements: 48~56V DC, 1.5A (max.)
Power Consumption: 70 watts / 239BTU
Enclosure: IP30 metal
Dimensions (W x D x H): 148 x 25 x 134 mm
Weight: 472g
Installation: Fixed wall mounting, magnetic wall mounting and DIN-rail mounting

Power over Ethernet

PoE Standard: IEEE 802.3at Power over Ethernet Plus PSE
PoE Power Supply Type: End-span
PoE Power Output: IEEE 802.3af Standard
 - Per port 48V~56V DC (depending on the power supply), max. 15.4 watts
IEEE 802.3at Standard
 - Per port 50V~56V DC (depending on the power supply), max. 30 watts
Power Pin Assignment: 1/2(+), 3/6(-)
PoE Power Budget: 60 watts (depending on power input)
Max. Number of Class 2 PDs: 4
Max. Number of Class 3 PDs: 4
Max. Number of Class 4 PDs: 2

Standard Conformance

Standard Compliance: IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet plus
IEEE 802.3z Energy Efficient Ethernet
Regulatory Compliance: FCC Part 15 Class A, CE
Stability Testing: IEC 60068-2-32 (Free fall)
IEC 60068-2-27 (Shock)
IEC 60068-2-6 (Vibration)

Environment

Operating: Temperature: -20 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage: Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
