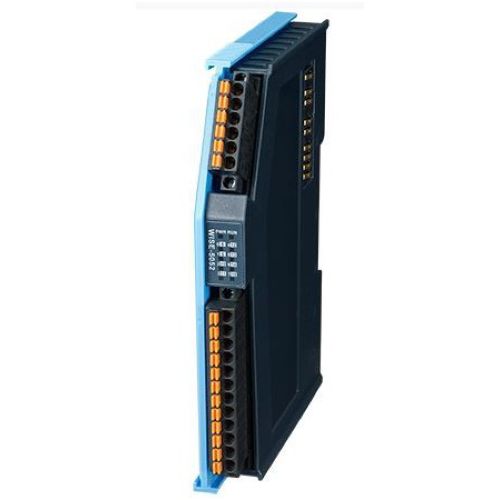

WISE-5052-A
16-ch Digital Input Module
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Specifications
General
Certification: CE, FCC class A
Connector:
Pluggable 6P+12P
push-in terminal
(#28~16 AWG)
Enclosure: PC
Power Consumption: 2W@24VDC
Protocol: EtherCAT
Transmission Rate: 100bps
Distributed Clock: Default not supported
LED Indicator: PWR, RUN
Digital Input
Channels: 16
Digital Input:
Dry Contact
Logic level 1: close to Iso.GND
Logic level 0: open
Wet Contact Rated voltage: 24VDC
Logic level 1: 10~30 VDC and -10~-30 VDC
Logic level 0: -3~3 VDC
Input Delay:
From logic level 0 to 1: 4ms
From logic level 1 to 0: 4ms
Digital Filter: 3ms
Input Impedance: 6.8 kΩ (wet contact)
Protection
Isolation Voltage: 2,000 VDC
Environment
Operation Temperature: -10~60°C (vertical mounted)
Storage Temperature: -40~85°C
Relative Humidity: 5~95% (non-condense)
