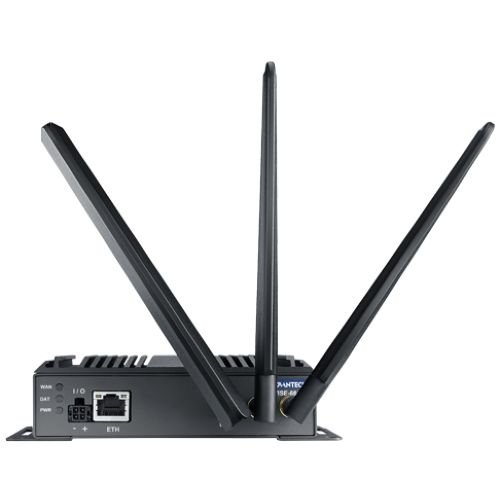

WISE-6610-E500C-A
LoRaWAN Gateway 500 nodes LTE with 868 Mhz
Features
- Long-range wide area IoT gateway
- LoRaWAN protocol for closed and public system application
- Ethernet and I/O for connecting a wide array of field assets
- DIN rail and wall mounting design
- Low power consumption for solar and battery power applications
- Enhanced memory for hosting customer software applications
- Redundancy-enhanced functions for continuous data transmission
Introduction
The WISE-6610 is a high-performance LoRaWAN gateway that offers reliable connectivity for industrial environments. It supports the LoRaWAN protocol for building LoRaWAN private
and public networks, as well as various protocols including MQTT. The hardware and software flexibility of the WISE-6610 provides rich features for edge intelligence systems, and
its support for VPN tunneling with various protocols ensures safe communications. The WISE-6610 also provides a network server that can phase the LoRaWAN data in our device.
The WISE-6610 provides the redundancy-enhanced functions to prevent connection loss.
Specifications
WSN Support
Standard: LoRaWAN
Frequency: 868/915/923MHz
ANT Connector: RP-SMA Male connector x 1
LAN Interface
Ethernet: 10/100 Mbps, auto MDI/MDIX
Connector: 1 x RJ45
Protection: 1.5-kV built-in magnetic isolation protection
Digital I/O
Port Type: 1x Digital Input On Voltage: 2.7V to 36VDC
Port Connector: 4-way Molex mini-fit connector
General
LED Indicators: PWR, DAT, WAN, ETH
Reboot Trigger: Reset button
Software
Network and Routing: DHCP server, NAT/PAT, VRRP, dynamic DNS client, DNS proxy, VLAN, QoS, DMVPN, NTP client/server, IGMP, BGP, OSPF, RIP, SMTP, SMTPS, SNMP v1/v2c/v3, backup routers, PPP, PPPoE, SSL, port forwarding, host port routing, Ethernet bridging, network server
Configuration: SSH, Web Browser
Network Security: HTTPS, SSH, VPN tunnels, SFTP, DMZ, firewall (IP filtering, MAC address filtering, inbound/outbound port filtering)
VPN tunnelling: Open VPN client and server and P2P, L2TP, PPTP, GRE, EasyVPN, IPSec with IKEv1 and IKEv2
