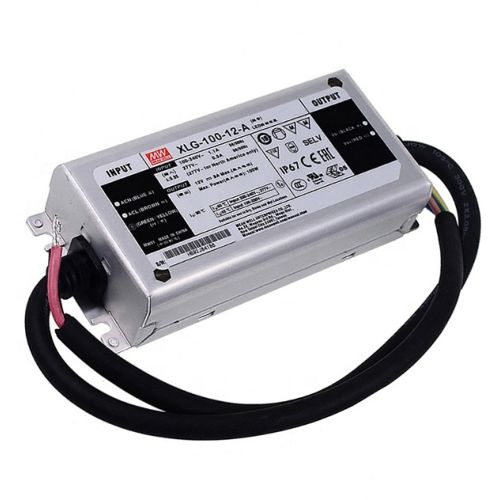

XLG-100-12-A
AC/DC Driver LED constant Voltage Constant Power 96W 100-305Vac 12Vdc 8A PFC Function IP67 with potentiometer L140xW63xH32mm
Features
- Wide input range 100~305VAC( Class I)
- Full power output at 70~100% Constant power mode operation
- Metal case with IP67, suitable foroutdoor application
- LVLE (H type) Class 2 (24V) power unit
- Surge protection with 6KV/4KV (10KV/6KV optional)
- 3 in 1 dimming function (Dim to off and Isolation design)
- India (EESL) version with Input Over Voltage Protection can
- survive input voltage stress of 440Vac for 48 hours
- Protection functions: OVP/SCP/OCP/OTP
- Life time >50,000 hrs.
- 5 years warranty
Applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in class I , Division 2
Description
XLG-100 series is a 100W LED AC/DC driver featuring the constant power mode.XLG-100 operates
from 100~305VAC and offers models with different rated current ranging between 700mA and 8000mA.
Thanks to the high efficiency up to 92%, with the fanless design, the entire series is able to operate for -
40°C~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress
protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative
environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application
environments in almost any spots that may install LED luminaires in the world. XLG-100 series comply
with the latest version of lEC61347/GB7000.1-2015 and UL875O international safety regulations. The
output and dimming circuit are also completely in accordance with the new regulations with isolation to
ensure the safety of both user and luminaire system during installation.
Specifications
OUTPUT
DC VOLTAGE: 12v
CONSTANT CURRENT REGION: 8.4~ 12v
RATED CURRENT: 8A
RATED POWER: 96W
RIPPLE & NOISE (max.): 150mVp-p
CURRENT ADJ RANGE: Adjustable forA/AB-Type only (via the built-in potentiometer): 4 ~ 8A
VOLTAGE TOLERANCE: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2%
SETUP, RISE TIME: 500ms,100ms/230VAC, 1200ms, 100ms/115VAC
HOLD UP TIME (Typ.): 12ms/ 230VAC 12ms/115VAC
INPUT
VOLTAGE RANGE: 100 ~ 305VAC 142 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 92%
AC CURRENT: 1.1A/115VAC 0.5A/230VAC 0.42A/277VAC
