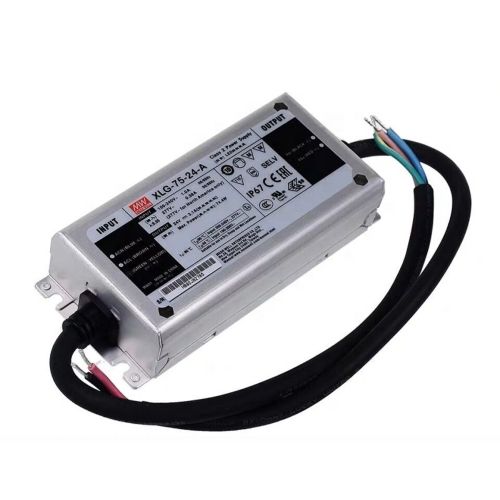

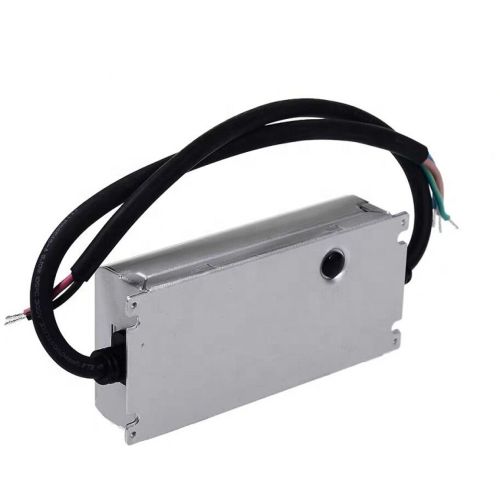

XLG-75-24-A
AC/DC Driver LED constant Voltage Constant Power 74.4W 100-305Vac 24Vdc 3.1A PFC Function IP67 with potentiometer L140xW63xH32mm
Bisogno di aiuto?
Features
- Wide input range 100 ~ 305V AC( Class I)
- Full power output at 70 ~ 100% Constant power mode operation
- Metal case with IP67, suitable for outdoor application
- Class 2 power unit(except for L type)
- Surge protection with 6KV/4KV
- Sin 1 dimming function (Dim to off and Isolation design)
- India (EESL) version with Input Over Voltage Protection can
- survive input voltage stress of 44OVac for 48 hours
- Protection functions: OVP/SOP/OCP/OTP
- Lifetime >50,000 hrs. and 5 years warranty
Applications
- Skyscraper lighting
- Street lighting
- Floodlight Lighting
- Stage lighting
- Fishing lighting
- Horticulture lighting
- Bay lighting
- DMX power supply
- Type HL for use in class I , Division 2
Description
XLG-75 series is a 75W LED AC/DC driver featuring the constant power mode.XLG-75 operates from
100 ~ 305VAC and offers models with different rated current ranging between 700mA and 5000mA.
Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -
40°C ~ +90°C case temperature under free air convection. The design of metal housing and IP67 ingress
protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative
environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application
environments in almost any spots that may install LED luminaires in the world. XLG-75 series comply
with the latest version of lEC61347/GB7000.1-2015 and UL8750 international safety regulations. The
output and dimming circuit are also completely in accordance with the new regulations with isolation to
ensure the safety of both user and luminaire system during installation.
Specifications
OUTPUT
DC VOLTAGE: 24V
CONSTANT CURRENT REGION: 16.8~ 24V
RATED CURRENT: 3.1A
RATED POWER: 74.4W
RIPPLE & NOISE (max.): 240mVp-p
CURRENT ADJ RANGE: 1.55A ~ 3.1A
VOLTAGE TOLERANCE: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1%
SETUP, RISE TIME: 500ms, 100ms/230VAC, 1200ms, l00ms/115VAC
HOLD UP TIME (Typ.): 10ms/ 230VAC 10ms/115VAC
INPUT
VOLTAGE RANGE: 100 ~ 305VAC 142 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63HZ
EFFICIENCY (Typ.): 90%
AC CURRENT: 1.0A/115VAC 0.45A/230VAC 0.38A/277VAC
