86M-2821D-T MOXA Modular RTU Controllers

 Features and Benefits

• Complies with all EN 50155 mandatory test items
• Complies with EN 50121-4
• Rugged and compact design for harsh environments
• Expand the I/O and communication capabilities of your ioPAC 8600 Series device
• Wide operating temperature range: -40 to 75°C (-40 to 167°F)
• Channel-to-channel isolated digital input and output
• 24 to 110 V DI/O module and universal power input range module
• Supports CAN bus for CAN 2.0 A/B communication

Introduction

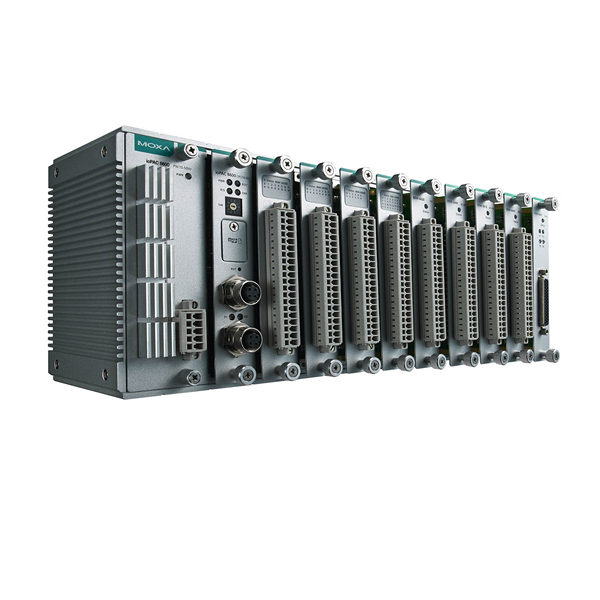

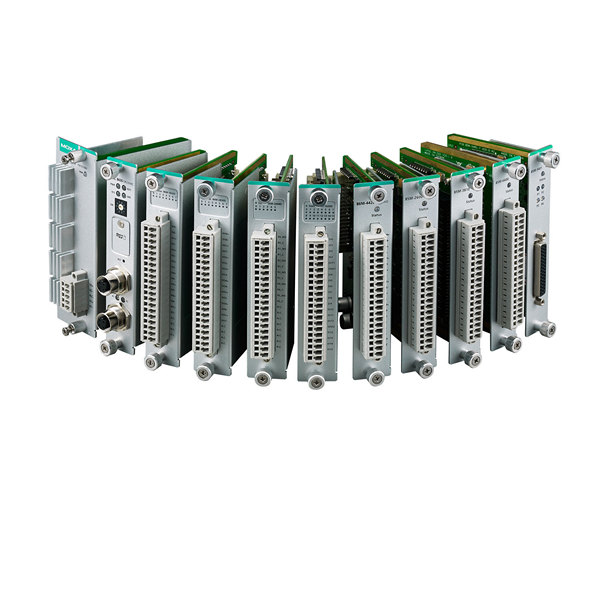

Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.

Specifications

Input/Output Interface

Digital Output Channels: 8
Isolation: 3k VDC or 2k Vrms

Digital Outputs

Connector: Spring-type Euroblock terminal
Voltage: 24 to 110 VDC
Current Rating: 1500 mA per channel
I/O Mode: DO or PWM
I/O Type: Source
Over-Voltage Protection: 160 VDC
Short-Circuit Protection: 2800 mA @ 25°C
Pulse Output Frequency: 100 Hz

Power Parameters

Power Consumption: 85.2 mA @ 24 VDC

Physical Characteristics

Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
Weight: Under 80 g
Wiring: I/O cable, 16 to 28 AWG

Environmental Limits

Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m

Standards and Certifications

EMC: EN 55032/24, EN 61000-6-2/-6-4
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway: EN 50121-4, EN 50155
Safety: UL 508
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6

MTBF

Time: 696,245 hrs
Standards: Telcordia SR332

Warranty

Warranty Period: 5 years
