86M-5212U-T
2 Ports 2-wire Ethernet Switch, -40 to 75°C
Bisogno di aiuto?
Certificati
Features
- Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
- Complies with EN 50121-4
- Rugged and compact design for harsh environments
- Expand the I/O and communication capabilities of your ioPAC 8600 Series device
- Wide operating temperature range: -40 to 75°C (-40 to 167°F)
- Channel-to-channel isolated digital input and output
- 24 to 110 V DI/O module and universal power input range module
- Supports CAN bus for CAN 2.0 A/B communication
Introduction

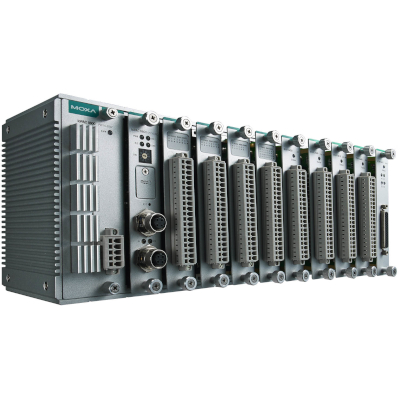

Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.
Specifications
Input/Output Interface
Isolation: 3k VDC or 2k Vrms
2-Wire Ethernet Ports: 2
CAN Ports: 2
Digital Outputs
Voltage: 24 VDC
Connector: Spring-type Euroblock terminal
Current Rating:
200 mA per channel
I/O Mode: DO or PWM
I/O Type: Sink
Over-Temperature Shutdown: 175°C (typical), 150°C (min.)
Over-Voltage Protection:41 VDC
Pulse Output Frequency: 1 kHz
Short-Circuit Protection: 750 mA @ 25°C
Relays
Connector: Spring-type Euroblock terminal
Contact Current Rating: Resistive load: 5 A @ 30 VDC, 250 VAC
Contact Resistance: 100 milli-ohms (max.)
Electrical Endurance: 60,000 operations @ 5 A resistive load
I/O Mode: Relay or PWM
Initial Insulation Resistance: 1,000 mega-ohms (min.) @ 500 VDC
Mechanical Endurance: 5,000,000 operations
Pulse Output Frequency: 0.33 Hz at rated load
Type: Form A (N.O.) power relay
Analog Outputs
Accuracy: ±0.1% FSR @ 25°C
±0.3% FSR @ -40 to 75°C
Connector: Spring-type Euroblock terminal
Current Load Resistance: External 24 VDC power: 1000 ohms
Internal power: 400 ohms
I/O Mode: Static or waveform mode
Output Range: 0 to 10 VDC
0 to 20 mA
-10 to 10 V
4 to 20 mA
Resolution: 12-bit
Voltage Output: 10 mA (max.)
Waveform Frequency: 125 Hz
Waveform Type: Sine, Square, Triangle
Ethernet Interface
Connector: M12 D-coded 2-pin female connector
No. of Ports: 2
Standards: BroadR-Reach® for 10 Mbps and 100 Mbps
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
CAN Interface
Industrial Protocols: CAN 2.0A, CAN 2.0B, CANopen DS301, V4.02
Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined
Connector: DB9 male
Isolation: 3k VDC or 2k Vrms
No. of Ports: 2
Terminator: N/A, 120 ohms (by DIP)
Power Parameters
Power Consumption: 79.2 mA @ 24 VDC
Physical Characteristics
Dimensions: 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
Weight: Under 80 g
Wiring: I/O cable, 14 to 28 AWG
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
EMC:
EN 55032/24, EN 61000-6-2/-6-4
EMI:
CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Railway: EN 50121-4, EN 50155
Safety: UL 508
Shock: IEC 60068-2-27
Vibration: IEC 60068-2-6
MTBF
Time: 2,498,942 hrs
Standards: Telcordia SR332
Warranty
Warranty Period
