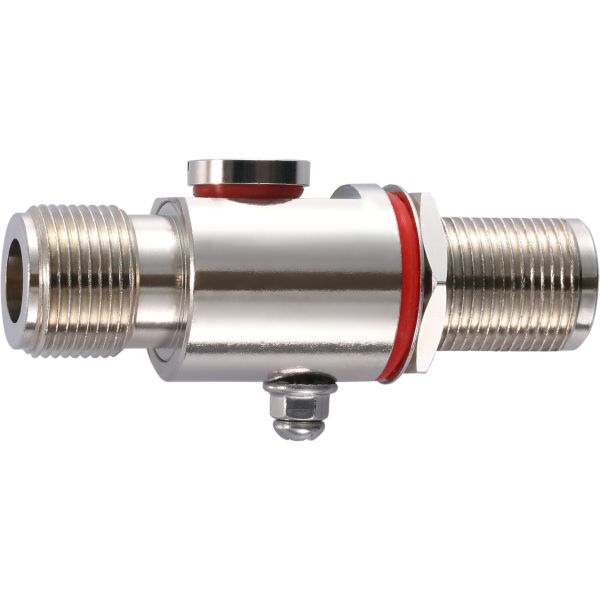

A-SA-NFNF-02, 0 to 6 GHz, N-type (female) to N-type (female) surge arrester
A-SA-NFNF-02
0 to 6 GHz, N-type (female) to N-type (female) surge arrester
Features and Benefits
- N-type connector
Introduction
The A-SA-NFNF-02 Series is a N-type (female) to N-type (female) surge arrester to help protect connected electrical devices from power surges.
Specifications
Physical Characteristics
Frequency: 0 to 6 GHz
V.S.W.R.: <1.5
Insertion Loss: 0.5 dB (max.)
DC Breakdown Voltage: 230 V ± 20% @ 100 V/S
Impulse Breakdown Voltage: < 700 V @ 1k V/μs
Surge Discharge Current: 10 kA @ 8/20 μs
Initial Insulation Resistance:
≥ 1000 mΩ
Electrode Capacitance: 1.5 P
Warranty
Warranty Period: 1 year
