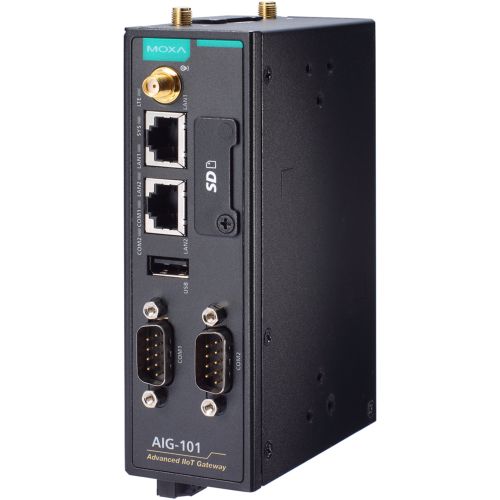

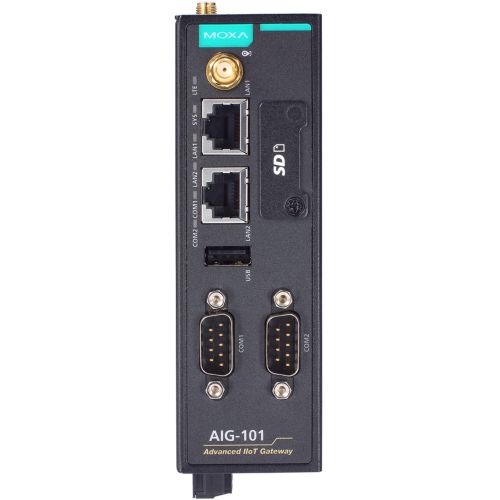

AIG-101-T, 2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS Cloud-supported gateways
AIG-101-T
2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS Cloud-supported gateways
SPEDIZIONE GRATUITA
Bisogno di aiuto?
Protocols
Certificati
Introduction
The AIG-100 Series gateways are entry-level IIoT gateways that connect Modbus RTU/ASCII/TCP devices to cloud platforms and applications such as Azure, AWS, and MQTT. The AIG-100 as a Modbus master can integrate existing Modbus devices with cloud platforms, effortlessly collecting and transmitting data to the Azure and AWS clouds. Moreover, the gateways also support the Modbus TCP slave mode, enabling simultaneous transmission of data to a cloud platform and local SCADA system.
Features and Benefits
Supports generic MQTT client
Supports MQTT connection with built-in device SDKs for Azure/AWS cloud
Supports Modbus RTU/ASCII/TCP master/client
Supports Modbus TCP server
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Supports data buffering using store and forward and datalogger
Seamless integration with Moxa ioLogik /UPort devices to easily extend I/O and serial interfaces
Built-in data processing function to eliminate programming efforts
-40 to 70°C operating temperature range
LTE Cat.1 US, EU, and APAC models available
Specifications
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 2, Auto MDI/MDI-X connection
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Industrial Protocols: Modbus TCP Client (Master) / Server (Slave)
Generic MQTT: Azure IoT Device
AWS IoT Core: Configuration Options
Web Console (HTTP/HTTPS): Time Management
NTP Client: GPS
Serial Interface
No. of Ports: 2
Connector: DB9 male
Serial Standards: RS-232/422/485
Baudrate: 300 bps to 921.6 kbps
Data Bits: 7, 8
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 2
Flow Control: RTS/CTS
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Cellular Interface
Cellular Standards: LTE Cat. 1
Cellular Antenna Connectors: SMA x 2
SIM Format: Nano SIM
No. of SIMs: 2
GPS Antenna Connectors: SMA x 1
Serial Software Features
Industrial Protocols: Modbus RTU/ASCII Master
Modbus RTU/ASCII
Mode: Master
Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands: 256 per port
Modbus TCP
Mode:
Server (Slave)
Client (Master)
Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections: 4
Max. No. of Server Connections: 64
Max. No. of Commands: 1500
Generic MQTT Client
Versions Supported:
v3.1.1
v3.1
QoS Levels: 0, 1, 2
Authentication Methods: Username and password
Secure Transmission:
TLS 1.0
TLS 1.1
TLS 1.2
Native Capabilities:
Keep Alive
Retain Message
Clean Session
Will and Testament
Moxa Functions:
Store and Forward
Custom Payload
Remote API Invocation
Azure IoT Device
Connection Protocols Supported:
MQTT
MQTT over WebSockets
AMQP
AMQP over WebSockets
Authentication Methods:
Symmetric Key
X.509 Certificate
Azure Direct Methods:
Reboot
Software Upgrade
Remote API Invocation
Moxa Functions:
Store and Forward
Custom Payload
AWS IoT Core
QoS Levels: 0,1
Authentication Methods:
X.509 Certificate
Private Key
Trusted Root CA
Native Capabilities: Keep Alive
Moxa Functions:
Store and Forward
Custom Payload
Commands Invokable Via Jobs:
Reboot
Software Upgrade
Remote API Invocation
Memory
microSD Slot:
Up to 32 GB (SD 2.0 compatible)
Max. No. of Tags Supported: 1500
Power Parameters
Input Voltage: 9 to 36 VDC
Power Connector: Screw-fastened Euroblock terminal
Physical Characteristics
Dimensions: 128.5 x 89.1 x 41 mm (5.06 x 3.51 x 1.61 in)
Housing: Metal
Installation:
DIN-rail mounting
Wall mounting (with optional kit)
Weight: 492 g (1.08 lb)
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Standards and Certifications
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Safety:
IEC 62368-1
UL 62368-1
EN 62368-1
Shock: IEC 60068-2-27
Vibration:
IEC 60068-2-64
5 Grms @ 5 to 500 Hz, random wave, 1 hr per axis (without USB devices attached)
Cellular Standards:
EN 303 413 (GPS)
EN 301 908-1 (WCDMA/LTE)
EN 301 908-2/-13 (WCDMA/LTE)
EN 301 489-1/-19
EN 301 489-1/-52
EN 62311
Radio Frequency:
FCC
PTCRB
RCM
Carrier Approvals:
Verizon
AT&T
Note: Approval pending from AT&T.
Green Product: RoHS, CRoHS, WEEE
MTBF
Time: 566,458 hrs
Standards: Telcordia SR332
Warranty
Warranty Period: 5 years
