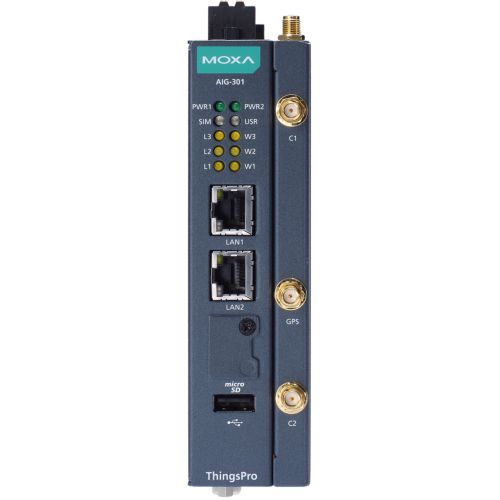

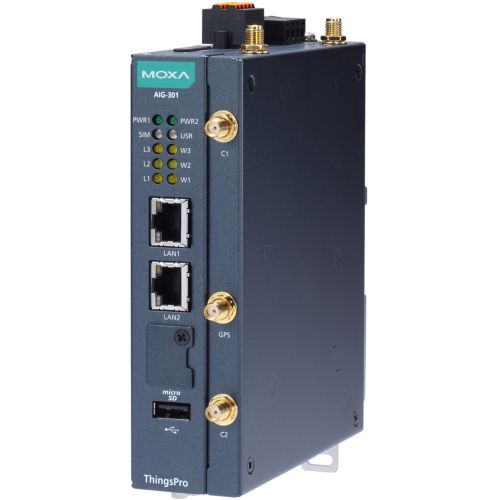

AIG-301-T-AZU-LX MOXA IIoT Gateways

Features and Benefits

• Simplifies data acquisition and device management via the ThingsPro Edge software
• Seamless integration with ThingsPro Edge and Azure IoT Edge enables easy, reliable, yet secure cloud connectivity
• Supports easy device-provisioning with the ThingsPro Proxy utility
• Provides robust OTA function to prevent system failure during software upgrades
• Equipped with secure boot to prevent malicious software-injection attacks

Introduction

The AIG-301 Series advanced IIoT gateways are designed for Industrial IoT applications, especially for distributed and unmanned sites in harsh operating environments. ThingsPro Edge and Azure IoT Edge software are preloaded and seamlessly integrated with the AIG-301 Series to enable easy, reliable, yet secure sensor-to-cloud connectivity for data acquisition and device management using the Azure Cloud solution. With the use of the ThingsPro Proxy utility, the device provisioning process is easier than ever. Thanks to the robust OTA function, you never have to worry about system failure during software upgrades. With the secure boot function enabled, you can enable the booting process of AIG-301 Series to prevent malicious software injection.

Specifications

Computer

CPU: Armv7 Cortex-A7 dual-core 1 GHz
DRAM: 2 GB DDR3L
Storage Pre-installed: 16 GB eMMC GB eMMC
Pre-installed OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)

Computer Interface

TPM: TPM v2.0
Ethernet Ports: Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports: RS-232/422/485 ports x 2, software selectable (DB9 male)
CAN Ports: CAN 2.0 A/B x 1 (DB9 male)
Digital Input: DIs x 4
Digital Output: DOs x 4
USB 2.0: USB 2.0 hosts x 1, type-A connectors
Expansion Slots: mPCIe slot x 1
SIM Format: Nano
Number of SIMs: 2
Buttons: Programmable button

Ethernet Interface

Magnetic Isolation Protection: 1.5 kV (built-in)

Serial Interface

Console Port: 1 x 4-pin header
Connector: DB9 female
Baudrate: 300 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Flow Control: ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 1.5, 2
Isolation: N/A

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

CAN Interface

No. of Ports: 1
Connector: DB9 male
Baudrate: 10 to 1000 kbps
Industrial Protocols: CAN 2.0A, CAN 2.0B
Signals: CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
Isolation: 2 kV (built-in)

Digital Inputs

Connector: Spring-type Euroblock terminal
Dry Contact:
        Off: open
        On: short to GND
Wet Contact (DI to COM):
        On: 10 to 30 VDC
        Off: 0 to 3 VDC
Isolation: 3K VDC
Sensor Type:
        Wet contact (NPN)
        Dry contact

Digital Outputs

Connector: Spring-type Euroblock terminal
Current Rating: 200 mA per channel
I/O Type: Sink
Voltage: 24 VDC nominal, open collector to 30 VDC

Cellular Interface

Cellular Standards: LTE CAT-4

GPS Interface

Receiver Types:
        72-channel u-blox M8 engine
        GPS/GLONASS/Galileo
Accuracy:
        Position: 2.5 m CEP
        SBAS: 2.0 m CEP
Acquisition:
        Aided starts: 3 sec
        Cold starts: 26 sec
Sensitivity:
        Cold starts: -148 dBm
        Tracking: -164 dBm
