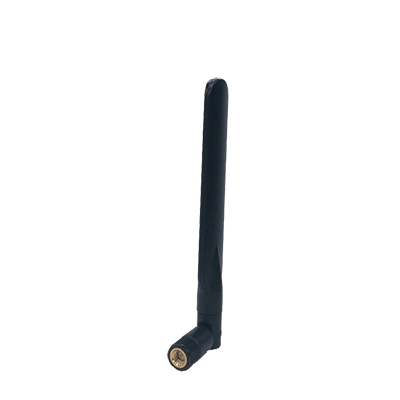

ANT-LTE-ASM-02 MOXA Antennas

Features and Benefits

• Small size for compact fit
• Lightweight for portable deployment
• Tilt and swivel design
• Flexible installation
• SMA connector (male) supported

Antenna Characteristics

Frequency: 800/900/1800/2100/2600 MHz
Antenna Type: Omni-directional
Typical Antenna Gain: 2 dBi
Connector: SMA (male)
Impedance: 50 ohms
Polarization: Linear, vertical
HPBW/horizontal: 360°
V.S.W.R.: < 3

Physical Characteristics

Weight: 26 g
Dimensions: Length=161 mm
Radome Color: Black
Radome Material: Plastic
Installation: Straight mount

Environmental Limits

Operating Temperature: -22 to 65°C (-4 to 149°F)
Storage Temperature: -30 to 70°C (-22 to 158°F)
Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty

Warranty Period: 1 year
